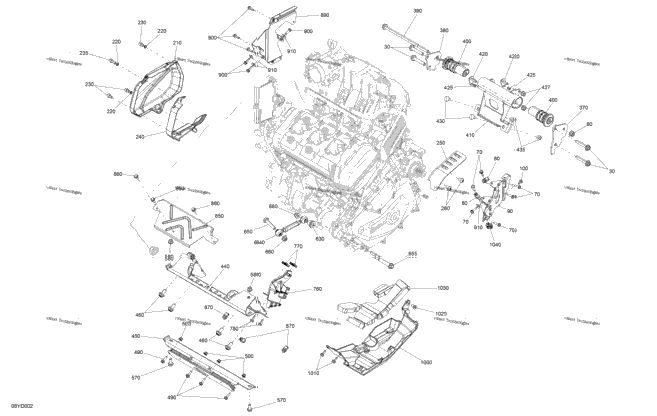

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip | 4 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 6 | 250000917 | Hex. Flange Screw M6 X 20 | 6 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 1 | 707001529 | ECM Support Includes 90 to 90b | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 707601741 | Cover Includes 210 to 210b | 1 |
| 3 | 250200160 | Flate Washer M8, Aluminum | 3 |
| 3 | 211000127 | Socket Head Screw M8 X 10, Scotch Grip | 3 |
| 1 | 205582060 | Socket Head Screw M8 X 20, Scotch Grip | 1 |
| 1 | 707001628 | Wire Cover | 1 |
| 1 | 707001660 | Sprocket Cover Includes 250 to 250a | 1 |
| 2 | 250000746 | Torx Truss Screw M8 X 16 | 2 |
| 1 | 707001293 | LH Engine Support Includes 370 to 370b | 1 |
| 1 | 707001294 | RH Engine Support Includes 380 to 380b | 1 |
| 1 | 250000507 | Hex. Flange Screw M10 X 220 | 1 |
| 2 | 707003044 | Vibration Damper | 2 |
| 1 | 707000877 | Frame Extension Includes 410 to 410b | 1 |
| 2 | 707001292 | Attach Includes 420 to 420b | 2 |
| 2 | 293150301 | Pop Rivet 3/16 X ,551 | 2 |
| 2 | 233081436 | Hex. Flange Nut | 2 |
| 2 | 207782046 | Carriage Bolt M8 X 20 | 2 |
| 1 | 707001561 | Front Engine Support Includes 440 to 440b | 1 |
| 1 | 707000876 | Rubber Mount Includes 450 to 450b | 1 |
| 4 | 207502044 | Hex Flange Screw M10 X 20 | 4 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 2 | 207682046 | Hex. Flange Screw M8 X 20 | 2 |
| 1 | 707001736 | Spacer | 1 |
| 1 | 707001918 | Connecting Rod | 1 |
| 1 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip | 1 |
| 1 | 250001099 | Hex. Flange Screw M10 X 100 | 1 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 707001627 | Connector Suppor | 1 |
| 2 | 250100208 | Panel Nut M6 X 1.0 | 2 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 707601057 | Upper Heat Deflector | 1 |
| 3 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 3 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 1 | 707001530 | TCM Support Includes 890 to 890b | 1 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 707001930 | Skid Plate | 1 |
| 1 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 1 |
| 1 | 707003260 | Acoustic Insulation | 1 |
| 1 | 709000633 | Harness Support | 1 |
