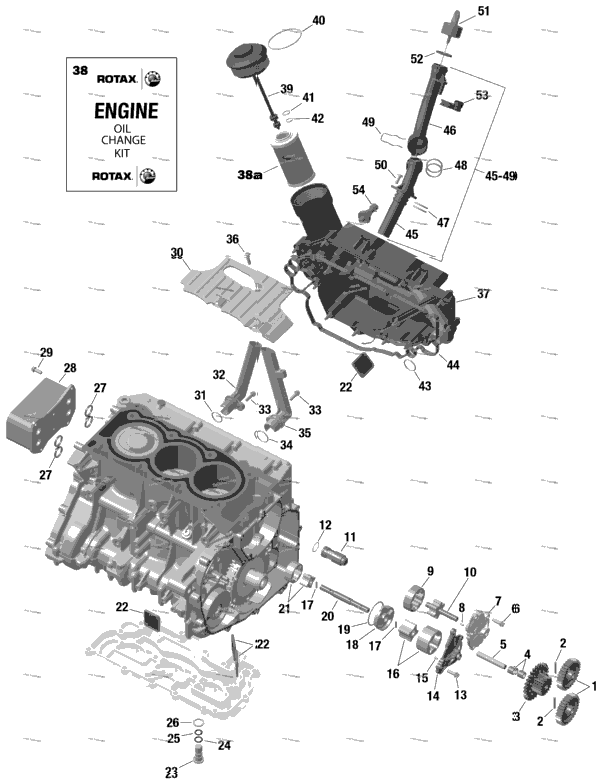

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 420435170 | Oil Pump Gear 30 Teeth | 2 |
| 2 | 420232431 | Needle Pin | 2 |
| 1 | 420435165 | Intermediate Gear 28\18 Teeth Ass'y Includes no. 3-4 | 1 |
| 2 | 420232031 | Needle Bushing | 2 |
| 1 | 420229472 | Pin Cylindrical | 1 |
| 5 | 420440207 | Torx Flange Screw M6 X 20 | 5 |
| 1 | 420210220 | Oil Pump Cover | 1 |
| 1 | 420929075 | Needle Pin | 1 |
| 1 | 420956675 | Oil Pump Rotor 16 mm | 1 |
| 1 | 420637077 | Shaft And Oil Pump Rotor | 1 |
| 1 | 420456141 | Pressure Regulator Valve Ass'y Includes no. 11-12 | 1 |
| 1 | 420230405 | O-Ring | 1 |
| 3 | 420440207 | Torx Flange Screw M6 X 20 | 3 |
| 1 | 420210260 | Oil Pump Cover | 1 |
| 1 | 420256831 | Oil Pump Rotor | 1 |
| 2 | 420232731 | Needle Pin | 2 |
| 1 | 420210770 | Oil Pump Cover | 1 |
| 1 | 420631830 | O-Ring | 1 |
| 1 | 420637070 | Oil Pump Shaft | 1 |
| 1 | 420956278 | Oil Pump Rotor | 1 |
| 4 | 420656885 | Oil Sieve | 4 |
| 1 | 420441681 | Screw M14 X 1.5 | 1 |
| 1 | 420250460 | O-Ring | 1 |
| 1 | 420430115 | O-Ring | 1 |
| 1 | 420430624 | Oil Pressure Regulator Gasket Ring | 1 |
| 2 | 420431711 | Gasket | 2 |
| 1 | 420888859 | Oil Radiator | 1 |
| 4 | 420440162 | Torx Flange Screw M6 X 16 | 4 |
| 1 | 420201450 | Baffle | 1 |
| 1 | 420430372 | O-Ring | 1 |
| 1 | 420210710 | Vent Hose | 1 |
| 2 | 420440207 | Torx Flange Screw M6 X 20 | 2 |
| 1 | 420430783 | O-Ring | 1 |
| 1 | 420224810 | Vent Hose | 1 |
| 1 | 420641588 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420893282 | Oil Tank Cover Ass'y Includes no. 37-44 | 1 |
| 1 | 9779249 | Spyder Oil Change Kit 5W40 1330 | 1 |
| 1 | 420956744 | Oil Filter | 1 |
| 1 | 420210885 | Oil Filter Cover Ass'y Includes no. 39-42 | 1 |
| 1 | 420850482 | O-Ring | 1 |
| 1 | 420950812 | O-Ring | 1 |
| 1 | 420650927 | O-Ring | 1 |
| 1 | 420931636 | O-Ring | 1 |
| 1 | 420431990 | Gasket | 1 |
| 1 | 420456510 | Oil Filler Tube Ass'y Includes no. 45-49 | 1 |
| XXX | Not Available As Spare Parts Use oil filler tube assy | ||
| 2 | 420631876 | O-Ring Included in gasket kit | 2 |
| 2 | 420430140 | O-Ring Included in gasket kit | 2 |
| 1 | 420939343 | Spring Clip | 1 |
| 2 | 420641588 | Torx Flange Screw M6 X 16 | 2 |
| 1 | 420656984 | Oil Gauge Ass'y Includes no. 51-52 | 1 |
| 1 | 420431791 | Gasket Ring | 1 |
| 1 | 420201180 | Silent Block | 1 |
| 1 | 420256917 | Oil Pressure Switch | 1 |
