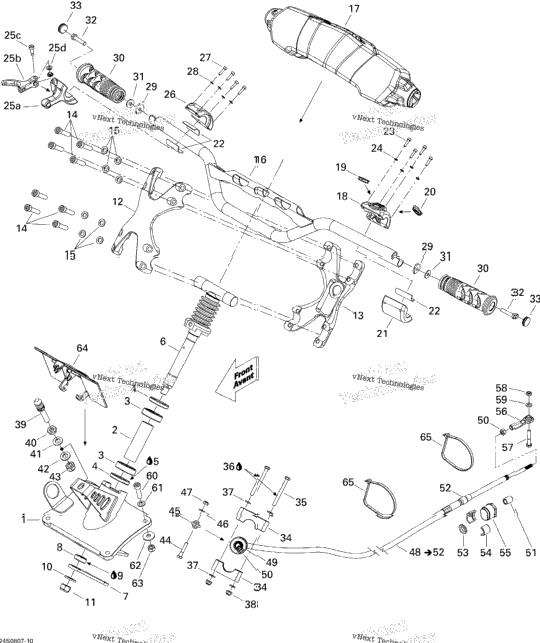

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277001614 | Steering Support | 1 |
| 277001572 | Spacer | ||
| 2 | 503190396 | Ball Bearing | 2 |
| 2 | 293200115 | OIL SEAL | 2 |
| 293550010 | Synthetic Grease, 400 G | ||
| 277001548 | STEERING SHAFT ASS'Y | ||
| 277001566 | MOBILE ARM | ||
| 1 | 277001584 | RING | 1 |
| 1 | 250200053 | Flat Washer M12 | 1 |
| 1 | 250100078 | NUT-STOP ELASTIC DIN.985A2 | 1 |
| 1 | 277001552 | HANDLE BAR EXTENSION, UPPER | 1 |
| 277001569 | Handle Bar Extension, Lower | ||
| 8 | 205083560 | SOCKET HEAD SCREW M8 X 35 | 8 |
| 8 | 234080600 | Flat Washer M8, Stainless | 8 |
| 1 | 277001610 | HANDLE BAR | 1 |
| 1 | 277001557 | HANDLE PAD | 1 |
| 277001560 | HOUSING COVER | ||
| 277000306 | Switch Knob | ||
| 278002066 | VTS KNOB | ||
| 277001559 | LOWER HOUSING | ||
| 3 | 293250202 | PAD | 3 |
| 4 | 205041660 | Socket Head Screw M4 X 16 | 4 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 277001570 | RH HOUSING | ||
| 1 | 277001564 | THROTTLE HANDLE | 1 |
| 1 | 250000343 | SOCKET HEAD SHOULDER SCREW | 1 |
| 293900090 | BUSHING | ||
| 1 | 277001563 | UPPER HOUSING | 1 |
| 2 | 277000554 | Handle Grip Insert | 2 |
| 2 | 277001336 | Handle Grip, Slate Grey | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277001528 | SUPPORT THRUST | 2 |
| 2 | 207166060 | Hexagonal Cap Screw | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 291002717 | LATCH STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 277001555 | Steering Cable Includes 48 to 52 | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 2 | 211100056 | Hex. Nut 1/4"-28 | 2 |
| 1 | 277000849 | Small Boot | 1 |
| 1 | 277000846 | Large Boot | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001527 | Half Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 4 | 205083560 | SOCKET HEAD SCREW M8 X 35 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 277001623 | CAP | 1 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
