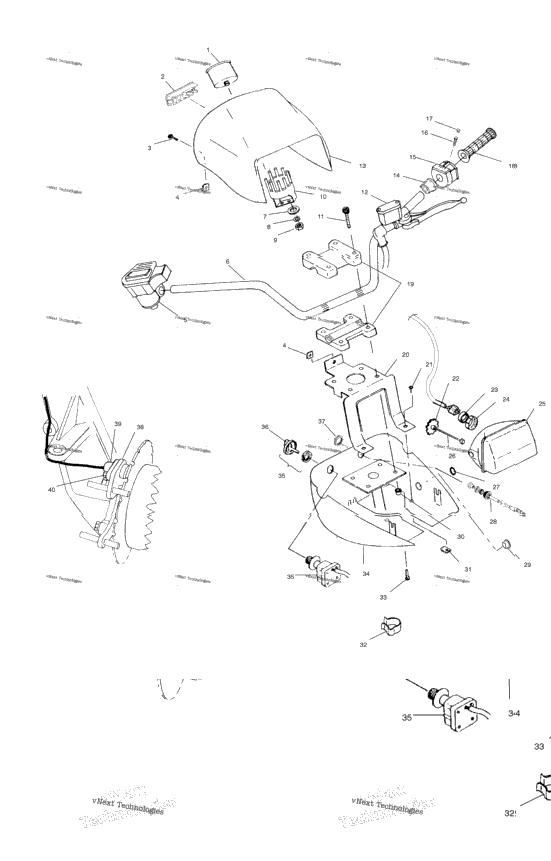

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3280363 | 6 PULSE SPEEDOMETER, 3.38 IN (AA) | ||
| 3280377 | SPEEDOMETER ASM,3.38 ,6-P,KILO (FB) | ||
| 4010315 | INDICATOR PANEL | ||
| 1 | 4010416 | INDICATOR BULB, HOBBS | 1 |
| 3 | 7511881 | SCREW | 3 |
| 3 | 7670086 | NUT (10) | 3 |
| ------- | Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5) | ||
| 1 | 5242987-067 | HANDLEBAR TUBE, MEDIUM GLOSS BL (AA) | 1 |
| 5245181-067 | HANDLEBAR,GEN 4,WIDE,BLK (FB) | ||
| 2 | 7558212 | WASHER,13/64X1/2X18GA,FL-Y (10) | 2 |
| 7555868 | WASHER, LOCK,(S.S.) | ||
| 2 | 7541933 | NUT | 2 |
| 3280291 | CLAMP,BACK,ELEC.SPEEDO,3.38" | ||
| 4 | 7515189 | SCREW | 4 |
| ------- | Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Page for details) | ||
| 5433763-317 | Discontinued | ||
| 5433903 | SWITCH SPACER, LEFT | ||
| 1 | 4010262 | HI/LO/OFF (REV/OR) HANDLEBAR SW | 1 |
| 1 | 7517625 | SCREW, SET | 1 |
| 1 | 5432952 | PLUG, HOLE | 1 |
| 2 | 5433834-070 | HANDLEBAR GRIP, 7/8 ID, GLOSS B | 2 |
| 2200774 | Discontinued (Incl. Blocks and 11,19,30) | ||
| 5630616-067 | Discontinued | ||
| 1 | 5240586-067 | POD MOUNTING BRACKET, BLACK (AA) | 1 |
| 1 | 5244969-067 | POD MOUNTING BRACKET, BLACK (FB) | 1 |
| 2 | 7517317 | SCREW | 2 |
| 1 | 4032079 | ADJUSTING KNOB | 1 |
| 1 | 5411120 | HEADLIGHT BOOT | 1 |
| 1 | 4032077 | COLLAR LOCK | 1 |
| 4032075 | ASM,HEADLIGHT W/ADJUST ROD-KNOB | ||
| 1 | 2870448 | HEADLIGHT BULB | 1 |
| 4032078 | Discontinued | ||
| 2 | 5410163 | O-RING | 2 |
| 1 | 7080726 | CHOKE CABLE W/ ADJUSTER (If built before 6/19/00) | 1 |
| 1 | 2200188 | CHOKE CONTROL KIT (If built before 6/19/00) | 1 |
| 1 | 7081008 | FRICTION CHOKE CABLE, 40 IN (If built after 6/19/00) | 1 |
| 1 | 7080936 | CAPLUG,#BPF-7/8 -6 BLACK | 1 |
| 4 | 7542122 | NYLOK NUT | 4 |
| 2 | 7670089 | NUT,U-TYPE | 2 |
| 7080631 | Discontinued | ||
| 7522021 | Discontinued | ||
| 5433762-070 | Discontinued | ||
| 1 | 4110264 | IGNITION SWITCH (Incl. Key) | 1 |
| 1 | 5433733 | IGNITION SWITCH NUT | 1 |
| 1 | 4010278 | KEYBLANK-B,6700-6800,2000-2100 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key. | 1 |
| 1 | 4010321 | KEYBLANK-A,2700-2800,2200-2389 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key. | 1 |
| 1 | 5433534 | KEY COVER-KEYSWITCH | 1 |
| 1 | 7080922 | CHOKE NUT, 24 MM X 1.5 MM (Use with 7080902) | 1 |
| 1 | 7080229 | NUT-CHOKE SLIDE (Use with 7080726) | 1 |
| 1 | 4010298 | HALL EFFECT SENSOR (Incl. 39) | 1 |
| 1 | 5132382 | HALL SENSOR CAP | 1 |
| 1 | 7517658 | SCREW | 1 |
