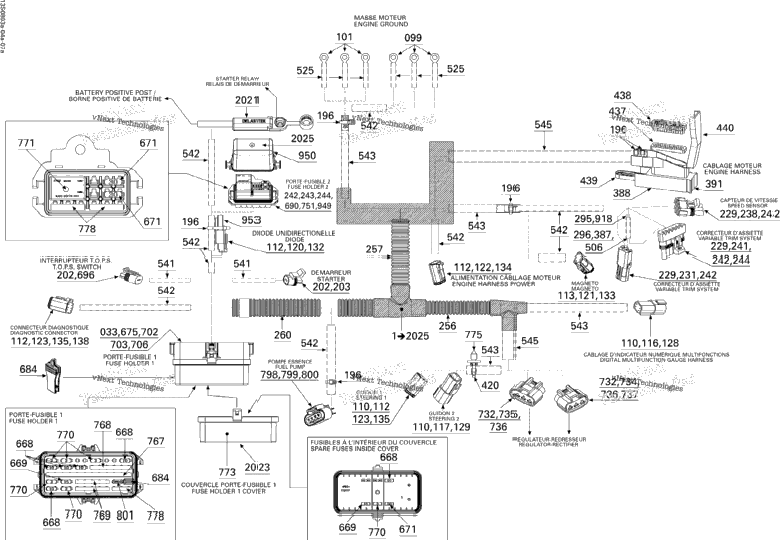

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278002280 | MAIN WIRING HARNESS Includes 1 to 2025 | ||
| 1 | 278000999 | Wire Seal | 1 |
| 1 | 278000992 | Open Barrel | 1 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 278000631 | Male Terminal | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 278001661 | FEMALE TERMINAL | ||
| 1 | 278000635 | Female Housing, 4 Circuits | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 409207300 | Female Connector, 2 Circuits | 1 |
| 1 | 409207400 | Female Housing, 3 Circuits | 1 |
| 1 | 278000739 | Male Connector, 4 Circuits | 1 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 1 | 278000636 | Female Wedge, 4 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 1 | 409207500 | Male Lock, 2 Circuits | 1 |
| 1 | 409207200 | Female Lock | 1 |
| 1 | 278000738 | Male Lock, 4 Circuits | 1 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 278001114 | Female Terminal | 1 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 710000048 | Wire Seal | 1 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 219704408 | Tubing 16 MM 1000MM Long | 1 |
| 1 | 219704398 | Was 409901600 Tubing 19mm | 1 |
| 1 | 219704423 | Was 515175319 Tubing 22 mm | 1 |
| 1 | 278001008 | Insulated Sheath | 1 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278001750 | Female Terminal | 1 |
| 278001751 | MALE HOUSING, 41 CIRCUITS | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 515175886 | SEAL | ||
| 1 | 515175883 | Latch | 1 |
| 515175884 | LOCK | ||
| 1 | 515175885 | COVER | 1 |
| 1 | 710000421 | Female Terminal | 1 |
| 710000482 | SHRINK TUBING | ||
| 1 | 219704425 | Tubing 6 MM 3000MM Long | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 409902000 | Tubing 12 mm | ||
| 1 | 710000744 | Little Fuse, 10 Ampere | 1 |
| 1 | 710000745 | Little Fuse, 15 Ampere | 1 |
| 1 | 710000747 | Little Fuse, 30 Amperes | 1 |
| 1 | 710000660 | Fuse Box Ass'y | 1 |
| 1 | 710000781 | Fuse Puller | 1 |
| 1 | 710000890 | Female Terminal | 1 |
| 1 | 278002064 | Connector, 3 Circuits | 1 |
| 1 | 710000836 | Female Terminal | 1 |
| 1 | 710000837 | Female Terminal | 1 |
| 1 | 710000840 | Cap | 1 |
| 1 | 710000877 | Female Terminal | 1 |
| 1 | 710000879 | Female Housing, 3 Circuits | 1 |
| 1 | 710000880 | Housing, 3 Circuits | 1 |
| 1 | 710000881 | Seal | 1 |
| 1 | 710000882 | Cap | 1 |
| 1 | 710000918 | Female Terminal | 1 |
| 1 | 278002165 | Bus Bar | 1 |
| 1 | 710001008 | Little Fuse, 3 AMP | 1 |
| 278002168 | Relay, 30 AMP Obsolete. Sea Doo order 278002822 | ||
| 1 | 710001026 | Fuse Cover | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 278002185 | Male Housing, 4 Circuits | 1 |
| 1 | 278002186 | Wire Seal | 1 |
| 1 | 278002187 | Female Terminal | 1 |
| 1 | 278002188 | RESISTANCE 500 OHMS | 1 |
| 1 | 278002261 | Female Terminal | 1 |
| 1 | 278002285 | Fuse Box Ass'y | 1 |
| 1 | 278002286 | Fuse Box Cover | 1 |
| 278002306 | DIODE CAP | ||
| 1 | 278002163 | Battery Cable | 1 |
| 1 | 278002171 | FUSE DECAL | 1 |
| 278002192 | FUSE DECAL |
