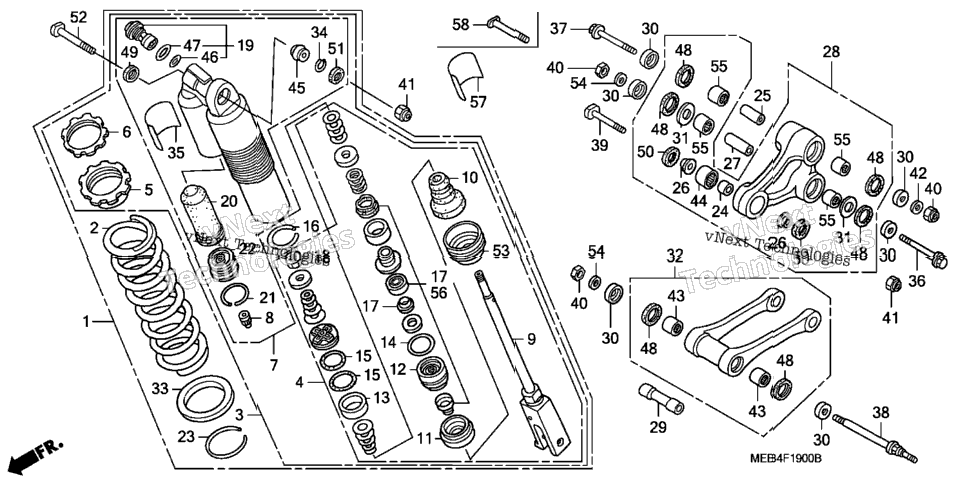

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 52400-MEB-771 | CUSHION ASSY., RR. (SHOWA) | ||
| 52401-MEB-751 | SPRING, RR. SHOCK ABSORBER (53.9N/MM,5.5KGF/MM) (SHOWA) | ||
| 52402-MEB-751 | SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.3KGF/MM) (SHOWA) (Optional). | ||
| 1 | 52403-MEB-751 | SPRING, RR. SHOCK ABSORBER (55.9N/MM,5.7KGF/MM) (SHOWA) (Optional). | 1 |
| 1 | 52404-MEB-751 | SPRING, RR. SHOCK ABSORBER (57.9N/MM,5.9KGF/MM) (SHOWA) (Optional). | 1 |
| 52410-MEB-771 | DAMPER, RR. | ||
| 52421-MEB-771 | ROD, PISTON | ||
| 1 | 52422-KZ3-J31 | ADJUSTER, SPRING | 1 |
| 1 | 52423-KZ3-J21 | NUT, ADJUSTER | 1 |
| 1 | 52425-MEB-671 | CASE, DAMPER | 1 |
| 1 | 52425-381-771 | CAP, AIR VALVE | 1 |
| 52426-MEB-751 | ROD | ||
| 1 | 52427-MEB-751 | RUBBER, STOPPER | 1 |
| 52428-KZ3-J31 | PLATE, END | ||
| 1 | 52429-KZ3-J41 | CASE, ROD GUIDE | 1 |
| 1 | 52431-KZ3-J31 | RING, PISTON | 1 |
| 1 | 52434-KZ3-J21 | O-RING (3.5X43.7) | 1 |
| 2 | 52434-KZ3-J31 | O-RING (42.5X2.0) | 2 |
| 1 | 52435-KZ3-J21 | RING, STOPPER | 1 |
| 1 | 52436-MEB-771 | OIL SEAL SET | 1 |
| 1 | 52438-KA4-741 | NUT, HEX. (12MM) | 1 |
| 52440-MEB-771 | ADJUSTER, COMPRESSION DAMPING FORCE | ||
| 1 | 52451-KZ3-891 | BLADDER | 1 |
| 1 | 52452-KS7-831 | RING, STOPPER | 1 |
| 52453-KS7-831 | CAP, CHAMBER | ||
| 1 | 52455-KZ3-J21 | RING, STOPPER | 1 |
| 1 | 52463-KZ4-B00 | COLLAR D, CUSHION | 1 |
| 1 | 52463-KZ4-J40 | COLLAR C, CUSHION ARM | 1 |
| 2 | 52464-KZ4-B00 | COLLAR D, CUSHION SIDE | 2 |
| 1 | 52464-KZ4-J20 | COLLAR B, CUSHION | 1 |
| 52465-MEB-750 | ARM SUB-ASSY., CUSHION | ||
| 1 | 52473-KZ4-J20 | COLLAR A, CONNECTING ROD | 1 |
| 6 | 52475-KZ4-J20 | COLLAR, LINK SIDE | 6 |
| 2 | 52476-KZ4-J20 | WASHER, THRUST | 2 |
| 52479-MEB-750 | ROD SUB-ASSY., CUSHION CONNECTING | ||
| 1 | 52486-KZ3-J21 | SEAT, SPRING | 1 |
| 1 | 52487-KA4-831 | RING, STOPPER | 1 |
| 1 | 87516-KZ1-600 | LABEL, RR. DAMPER WARNING | 1 |
| 1 | 90130-KZ4-J20 | BOLT, LINK (12X96) | 1 |
| 1 | 90130-KZ4-J40 | BOLT, LINK (12X81.5) | 1 |
| 90131-KZ4-J40 | BOLT, LINK (12X120) | ||
| 1 | 90153-KZ4-710 | BOLT, CUSHION (LOWER) (10X43.5) | 1 |
| 3 | 90306-KBP-901 | NUT, U (12MM) | 3 |
| 2 | 90306-KZ4-711 | NUT, U (10MM) | 2 |
| 1 | 90501-KZ4-J40 | WASHER, PLAIN (12MM) | 1 |
| 2 | 91053-KZ4-J21 | BEARING, NEEDLE (20X26X14) | 2 |
| 1 | 91074-KZ4-B01 | BEARING, NEEDLE (19X26X15) | 1 |
| 1 | 91074-MAC-741 | BEARING, SPHERICAL (10) | 1 |
| 1 | 91256-KZ3-731 | O-RING (21.5X1.5) | 1 |
| 1 | 91257-KZ3-891 | O-RING (26.2X1.9) | 1 |
| 6 | 91262-KZ3-731 | DUST SEAL (25X32X4) | 6 |
| 1 | 91351-KZ3-731 | DUST SEAL, RR. CUSHION PIVOT | 1 |
| 2 | 91351-KZ4-B01 | DUST SEAL (17X26X3) | 2 |
| 1 | 91351-MAC-671 | DUST SEAL (16X26X3) | 1 |
| 1 | 90152-MEB-750 | BOLT, CUSHION (UPPER) (10X53) | 1 |
| 1 | 52419-KZ3-J21 | STOPPER, SPRING SEAT | 1 |
| 2 | 90501-KZ4-J40 | WASHER, PLAIN (12MM) | 2 |
| 4 | 91053-KZ4-J21 | BEARING, NEEDLE (20X26X14) | 4 |
