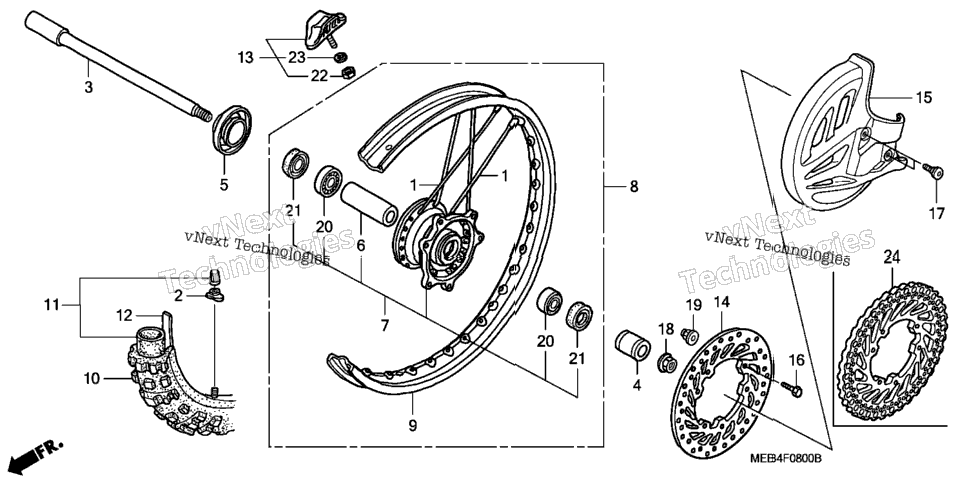

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 36 | 06440-KZ4-J40 | SPOKE SET, FR. (240MM) | 36 |
| 36 | 06440-KZ4-820 | SPOKE SET, FR. (226.5MM) (FOR 20 INCHES) (Optional). | 36 |
| 1 | 42714-KA3-710 | CAP, VALVE | 1 |
| 44301-KZ4-J40 | AXLE, FR. WHEEL | ||
| 1 | 44311-KZ4-J40 | COLLAR, L. FR. WHEEL | 1 |
| 44312-MAC-740 | COLLAR, R. FR. WHEEL | ||
| 1 | 44620-MAC-680 | COLLAR, FR. DISTANCE | 1 |
| 1 | 44635-MAC-680 | HUB SUB-ASSY., FR. WHEEL | 1 |
| 44650-KZ3-J40 | WHEEL SUB-ASSY., FR. | ||
| 44650-KZ3-810 | WHEEL SUB-ASSY., FR. (FOR 20 INCHES) (Optional). | ||
| 44650-KZ4-810 | WHEEL SUB-ASSY., FR. (Optional). | ||
| 44701-KZ3-J41 | RIM, FR. WHEEL (21X1.60) | ||
| 1 | 44701-KZ3-811 | RIM, FR. WHEEL (20X1.85) (Optional). | 1 |
| 44711-KZ4-811 | TIRE, FR. (DUNLOP) (90/100-20 56M D739FA) (Optional). | ||
| 44711-ML3-911 | TIRE, FR. (80/100-21) (51M K490C) (DUNLOP) | ||
| 1 | 0Y400-33100 | TUBE, TIRE (2.75/3.50-21) | 1 |
| 1 | 08400-33100 | TUBE (275/325-21) | 1 |
| 1 | 08400-34010 | TUBE (275/300X21) | 1 |
| 08400-43700 | TUBE, TIRE (250/275-21) | ||
| 1 | 44712-KB1-911 | TUBE, TIRE | 1 |
| 1 | 44712-KB7-901 | TUBE, TIRE (2.75X3.00-1) | 1 |
| 1 | 44712-KS6-641 | TUBE, TIRE (80/100-21) (DUNLOP) | 1 |
| 44712-KZ4-811 | TUBE, TIRE (90/100-20) (DUNLOP) (Optional). | ||
| 1 | 44712-MC4-005 | TUBE, TIRE (275/300-2) | 1 |
| 44712-MC4-009 | TUBE, TIRE (3.00/3.25/3.50-21) (YOKOHAMA) | ||
| 44712-329-003 | TUBE, TIRE (2.75/3.00X21) (TR6) | ||
| 1 | 44712-331-671 | TUBE, TIRE (2.75/3.00X21) | 1 |
| 1 | 44712-340-003 | TUBE, FR. WHEEL (2.75/3.00-21) (BS) | 1 |
| 1 | 44712-340-006 | TUBE, TIRE (2.75/3.00X21) | 1 |
| 44712-357-004 | TUBE, TIRE | ||
| 1 | 44712-400-004 | TUBE, TIRE (80/100-21) (DUNLOP) | 1 |
| 1 | 44712-437-971 | TUBE, TIRE (2.75/3.00-21) | 1 |
| 1 | 44712-446-003 | TUBE, TIRE (2.75/3.00-21) (BS) | 1 |
| 44712-446-631 | TUBE, TIRE (2.75/3.00-21) (INOUE) | ||
| 1 | 44713-KS6-641 | FLAP, TIRE (80/100-21) (DUNLOP) | 1 |
| 44713-KZ4-811 | FLAP, TIRE (DUNLOP) (FOR 20 INCHES) (Optional). | ||
| 1 | 42715-KA2-680 | STOPPER, BEAD (1.85) (FOR 20 INCHES) (Optional). | 1 |
| 1 | 44715-MA0-770 | STOPPER, BEAD (1.60) | 1 |
| 1 | 45351-KZ4-J30 | DISK, FR. BRAKE | 1 |
| 1 | 51614-KZ4-J40ZA | COVER, FR. DISK *TNATURAL* (NATURAL) | 1 |
| 1 | 51614-KZ4-J41ZA | COVER, FR. DISK *TNATURAL* (NATURAL) | 1 |
| 6 | 90105-MAC-680 | BOLT, DISK (6X19) | 6 |
| 2 | 90114-MAC-780 | BOLT, FR. DISK COVER | 2 |
| 1 | 90301-KZ4-J40 | NUT, FR. AXLE | 1 |
| 6 | 90301-473-003 | NUT, U (6MM) | 6 |
| 2 | 91062-MAC-681 | BEARING, RADIAL BALL (6904) | 2 |
| 2 | 91201-KS6-004 | OIL SEAL (26X37X7) (ARAI) | 2 |
| 1 | 94001-08000-0S | NUT, HEX. (8MM) | 1 |
| 1 | 94111-08000 | WASHER, SPRING (8MM) | 1 |
