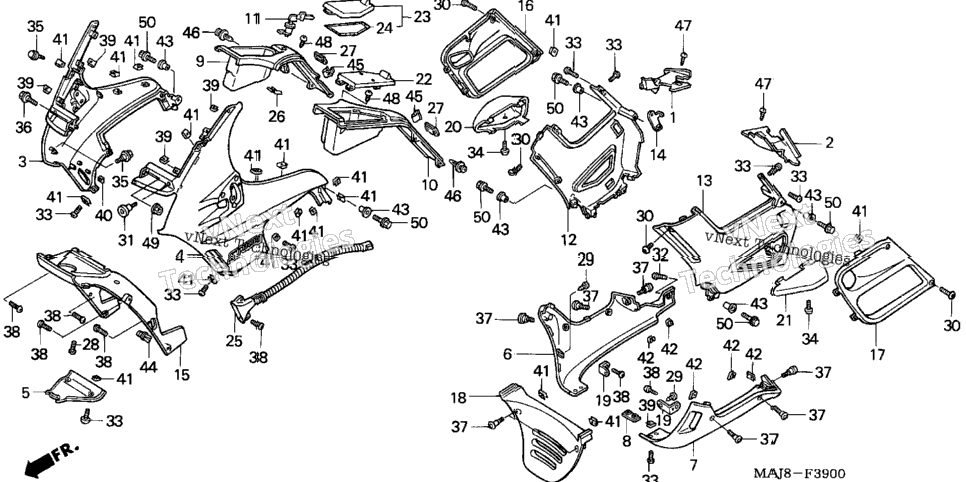

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 19070-MT3-000 | GUARD, R. FR. AIR | ||
| 1 | 19170-MT3-000 | GUARD, L. FR. AIR | 1 |
| 64200-MAJ-830ZA | COWL SET, R. (UPPER) (TYPE1) (WL) | ||
| 1 | 64201-MAJ-830ZA | COWL SET, L. (UPPER) (TYPE1) (WL) | 1 |
| 64215-MY3-000ZB | COVER, HEADLIGHT (LOWER) *NH1* (BLACK) | ||
| 1 | 64220-MT3-000ZA | COWL, R. (LOWER) *NH285* (GUSTO GRAY) | 1 |
| 1 | 64221-MT3-000ZA | COWL, L. (LOWER) *NH285* (GUSTO GRAY) | 1 |
| 1 | 64222-MT3-000 | PLATE, COWL SETTING (LOWER) | 1 |
| 1 | 64225-MAJ-G00ZA | POCKET, R. COWL *NH285* (GUSTO GRAY) | 1 |
| 64226-MAJ-G10ZA | POCKET, L. COWL *NH285* (GUSTO GRAY) | ||
| 1 | 64228-MT3-003 | LOCK ASSY., POCKET LID | 1 |
| 1 | 64230-MAJ-G50ZE | COWL, R. MIDDLE *NH138* (SHASTA WHITE) | 1 |
| 1 | 64231-MAJ-G50ZE | COWL, L. MIDDLE *NH138* (SHASTA WHITE) | 1 |
| 1 | 64233-MT3-000 | STAY, MIDDLE COWL | 1 |
| 1 | 64235-MT3-000ZJ | COWL, MIDDLE (INNER) *NH138* (SHASTA WHITE) | 1 |
| 64245-MAJ-G50ZE | COVER, R. MAINTENANCE *NH138* (SHASTA WHITE) | ||
| 1 | 64246-MAJ-A40ZE | COVER, L. MAINTENANCE *NH138* (SHASTA WHITE) | 1 |
| 1 | 64255-MT3-000ZA | PANEL, FR. *NH285* (GUSTO GRAY) | 1 |
| 2 | 64256-MT3-000 | STAY, COWL (LOWER) | 2 |
| 1 | 64260-MT3-000ZA | COVER, R. ENGINE GUARD *NH285* (GUSTO GRAY) | 1 |
| 1 | 64261-MT3-000ZA | COVER, L. ENGINE GUARD *NH285* (GUSTO GRAY) | 1 |
| 1 | 64271-MT3-010ZA | LID, L. COWL POCKET *NH285* (GUSTO GRAY) | 1 |
| 64272-MAJ-G00ZA | LID, R. COWL POCKET *NH285* (GUSTO GRAY) | ||
| 1 | 64274-MT3-300 | SEAL, POCKET LID | 1 |
| 64280-MT3-000 | DUCT, FRESH AIR IN. | ||
| 1 | 75581-673-000 | SPRING, LOCK KEY SETTING | 1 |
| 2 | 77121-MT3-000ZA | CAP, MAINTENANCE *NH285* (GUSTO GRAY) | 2 |
| 2 | 90001-MG1-000 | SCREW, SPECIAL (5X16) | 2 |
| 4 | 90101-SA4-000 | SCREW, TAPPING (4X12) SCREW, TAPPING (4X12) (PO) | 4 |
| 4 | 93913-14280 | SCREW, TAPPING (4X12) (PO) SCREW, PAN (4X8) | 4 |
| 6 | 90103-MT3-000 | SCREW, TRUSS (5X16) | 6 |
| 2 | 90104-MN4-000 | SCREW, SPECIAL (6X19) | 2 |
| 1 | 90106-KY2-701 | SCREW, PAN (6X11) | 1 |
| 22 | 90109-SB6-000 | SCREW, TRUSS (5X16) | 22 |
| 2 | 90111-MT3-000 | SCREW, TRUSS (5X16) | 2 |
| 4 | 90111-162-000 | BOLT, FLANGE (6MM) | 4 |
| 90113-MJ4-670 | BOLT, FLANGE (6X16) | ||
| 8 | 90113-MM5-000 | SCREW, PAN (6X14) | 8 |
| 8 | 90114-KW7-900 | SCREW, VISOR SETTING | 8 |
| 6 | 90305-MN5-000 | NUT, PLATE (5MM) | 6 |
| 2 | 90311-MT3-000 | NUT, CLIP (6MM) | 2 |
| 24 | 90312-MT3-000 | NUT, CLIP (5MM) | 24 |
| 6 | 90320-MM5-000 | NUT, SPRING (6MM) | 6 |
| 8 | 90512-KF9-900 | WASHER (6X20) WASHER, CHAIN CASE SETTING | 8 |
| 8 | 90512-422-000 | WASHER, CHAIN CASE SETTING | 8 |
| 2 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 2 |
| 2 | 90666-SD4-003 | CLIP, SNAP FITTING | 2 |
| 2 | 90683-GR1-003 | CLIP, BODY COVER | 2 |
| 2 | 93903-25080 | SCREW, TAPPING (5X8) | 2 |
| 2 | 93903-25280 | SCREW, TAPPING (5X12) | 2 |
| 1 | 94050-06000 | NUT, FLANGE (6MM) | 1 |
| 9 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 9 |
