Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

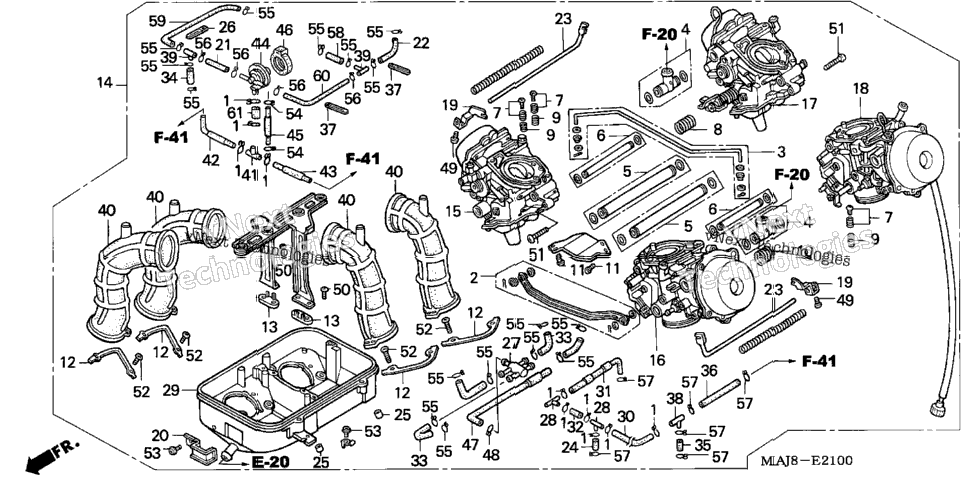

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 10 | 15772-500-010 | CLIP, BREATHER TUBE | 10 |
| 10 | 15772-500-013 | CLIP, BREATHER TUBE | 10 |
| 16017-MT3-610 | LEVER SET, LINK | ||
| 16019-MT3-610 | ROD SET, STARTER LINK | ||
| 16026-MT6-601 | JOINT SET | ||
| 16027-MT3-610 | JOINT SET A, FUEL | ||
| 2 | 16027-MT3-750 | JOINT SET B, FUEL | 2 |
| 3 | 16029-MT3-610 | SCREW SET C | 3 |
| 16051-MT3-610 | SPRING, COMPRESSION COIL | ||
| 3 | 16053-KT7-003 | SPRING, COMPRESSION COIL | 3 |
| 1 | 16053-MA6-003 | SPRING, COMPRESSION COIL | 1 |
| 16081-ML7-004 | SCREW, PAN (5X10) | ||
| 4 | 16090-ML7-004 | WASHER, TONGUED | 4 |
| 16090-MT3-610 | WASHER, TONGUED | ||
| 16100-MY3-690 | CARBURETOR ASSY. | ||
| 16101-MY3-690 | CARBURETOR ASSY., R. FR. | ||
| 16102-MY3-690 | CARBURETOR ASSY., L. FR. | ||
| 16103-MY3-690 | CARBURETOR ASSY., R. RR. | ||
| 16104-MY3-690 | CARBURETOR ASSY., L. RR. | ||
| 16120-KT8-003 | LEVER, STARTER | ||
| 1 | 16134-MT3-610 | BINDER | 1 |
| 1 | 16143-MT3-730 | TUBE | 1 |
| 1 | 16144-MT3-730 | TUBE | 1 |
| 2 | 16145-MT3-610 | SHAFT, STARTER LINK | 2 |
| 16145-MT3-730 | TUBE | ||
| 8 | 16178-MB0-671 | PIN, KNOCK | 8 |
| 16179-MK7-711 | CLIP, PLATE | ||
| 1 | 16180-ME5-761 | JOINT (T) | 1 |
| 2 | 16180-MM5-601 | T-JOINT | 2 |
| 1 | 16188-MT3-750 | BASE, AIR CLEANER | 1 |
| 16194-MT3-730 | TUBE | ||
| 16195-MT3-730 | TUBE | ||
| 1 | 16196-MT3-730 | TUBE | 1 |
| 16197-MT3-610 | TUBE | ||
| 1 | 16197-MT3-730 | TUBE | 1 |
| 1 | 16198-MT3-730 | TUBE | 1 |
| 16199-MT3-730 | TUBE | ||
| 2 | 17192-MN5-000 | CLIP, PLATE | 2 |
| 1 | 17193-MT2-000 | T-JOINT | 1 |
| 2 | 17194-MN5-000 | T-JOINT | 2 |
| 4 | 17253-MT3-000 | TUBE A, AIR CLEANER CONNECTING | 4 |
| 17303-MJ1-790 | JOINT (THREE-WAY) | ||
| 17303-MT3-730 | TUBE B (AVCV-3WAY) | ||
| 17412-MT3-730 | TUBE (3WAY-2WAY) | ||
| 1 | 17440-MT3-730 | VALVE, PURGE CONTROL | 1 |
| 17441-MT3-730 | TUBE (PCV-PC) | ||
| 1 | 17451-ME5-760 | RUBBER, PURGE CONTROL VALVE MOUNTING | 1 |
| 17521-MT3-730 | TUBE, DRAIN | ||
| 1 | 90651-KM9-000 | CLIP, TUBE (B14) | 1 |
| 2 | 93500-04008-0A | SCREW, PAN (4X8) SCREW, PAN (4X12) | 2 |
| 2 | 93500-04008-1A | SCREW, PAN (4X8) | 2 |
| 9 | 93500-05012 | SCREW, PAN (5X12) | 9 |
| 9 | 93500-05012-0A | SCREW, PAN (5X12) | 9 |
| 9 | 93500-05012-00 | SCREW, PAN (5X12) | 9 |
| 9 | 93500-05012-1A | SCREW, PAN (5X12) | 9 |
| 2 | 93500-06022-0G | SCREW, PAN (6X22) | 2 |
| 93500-06022-0H | SCREW, PAN (6X22) | ||
| 2 | 93892-04008-00 | SCREW-WASHER (4X8) | 2 |
| 2 | 93892-04008-10 | SCREW-WASHER (4X8) | 2 |
| 2 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 |
| 16 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 16 |
| 4 | 95002-02100 | CLIP, TUBE (B10) | 4 |
| 6 | 95002-02120 | CLIP, TUBE (B12) | 6 |
| 1 | 95005-45001-20M | BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M) | 1 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2 | 1 |
| 1 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 |
