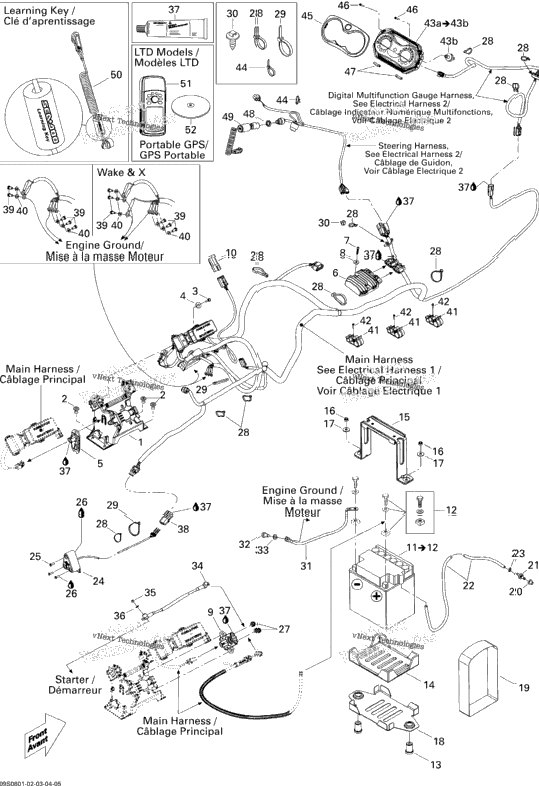

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278002157 | MODULE SUPPORT | ||
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 211000023 | Hex. Screw 10-14 X 7/8” | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 278001992 | Interrupter T.O.P.S. | 1 |
| 1 | 710001103 | Voltage Regulator | 1 |
| 2 | 250000236 | TORX SCREW 10-14 X 1-1/8 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 278001802 | Relay Starter | 1 |
| 1 | 278002148 | Diagnostic Connector Cap | 1 |
| 1 | 278001882 | Battery, 30 Amperes Includes 11 to 12 | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 2 | 278001939 | BUSHING | 2 |
| 278001582 | LOWER BATTERY PAD | ||
| 278001677 | BATTERY SUPPORT | ||
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 278001966 | BATTERY SUPPORT | 1 |
| 1 | 278001764 | BATTERY STRAP 337 MM | 1 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 278001993 | Speed Sensor | 1 |
| 3 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 3 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 278002176 | GROUND CABLE | 1 |
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 1 | 234000600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 278002061 | Starter Cable | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 6 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 6 |
| 6 | 234061600 | Stainless, Flat Washer M6 | 6 |
| 3 | 275500553 | RETAINER | 3 |
| 3 | 241141660 | Hex. Flange Screw K40 X 16 | 3 |
| 1 | 278002270 | Digital Multifunction Gauge Includes 43a to 43b | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 278002135 | Gauge Bezel, Black | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 293830113 | TRIM | 2 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 278002199 | Safety Lanyard, Antitheft | 1 |
| 1 | 278002203 | Safety Lanyard, Learning Key | 1 |
| XXX | Not Available As Spare Parts |
