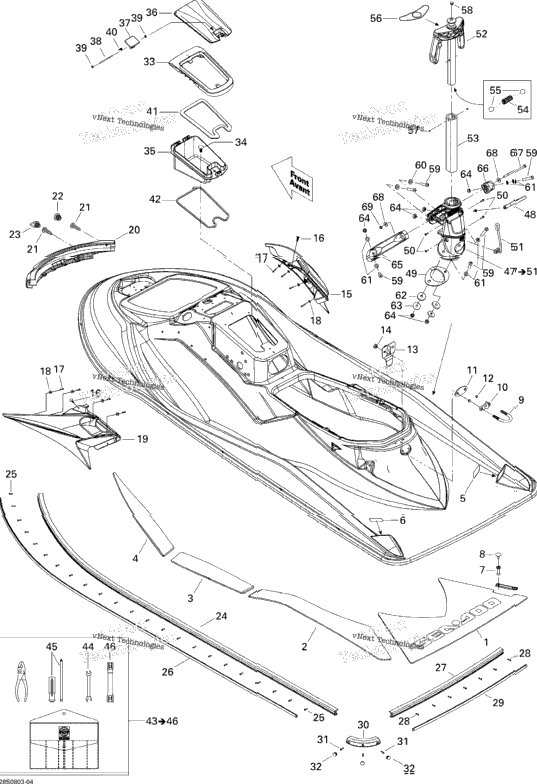

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291002316 | ANTI SLIP MAT_DECK | 1 |
| 1 | 291002382 | RH CENTER REAR CARPET | 1 |
| 1 | 291002383 | LH CENTER REAR CARPET | 1 |
| 291002384 | RH CENTER FRONT CARPET | ||
| 291002385 | LH Center Front Carpet | ||
| 1 | 291002386 | RH FRONT CARPET | 1 |
| 1 | 291002387 | LH FRONT CARPET | 1 |
| 1 | 291001758 | RH ANTI-SKID | 1 |
| 291001759 | LH Anti-Skid | ||
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 292000011 | U-CLAMP | 1 |
| 1 | 291002351 | Hook | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 2 | 293300123 | O-Ring | 2 |
| 291001747 | Retainer Plate | ||
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 269501527 | RH Front Moulding | ||
| 2 | 293730006 | Black, Dart | 2 |
| 8 | 241142560 | Hex. Flange Screw K40 X 25 | 8 |
| 250200055 | WASHER 4.3 MM, NYLON | ||
| 269501529 | LH Front Moulding | ||
| 291001942 | BUMPER NOSE, BLACK | ||
| 4 | 250000236 | TORX SCREW 10-14 X 1-1/8 | 4 |
| 291001519 | Bumper Plug, Black | ||
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 2 | 291002503 | Side Bumper | 2 |
| 52 | 293150005 | Pop Rivet 3/16" | 52 |
| 291001897 | SIDE BUMPER TRIM, VIPER RED | ||
| 1 | 291002242 | REAR BUMPER, BLACK | 1 |
| 8 | 293150005 | Pop Rivet 3/16" | 8 |
| 291001484 | Rear Bumper Trim, Viper Red | ||
| 2 | 291002244 | Bumper Corner | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 1 | 269501031 | Cover Trim, Black | 1 |
| 3 | 293730006 | Black, Dart | 3 |
| 1 | 269500968 | GLOVE BOX | 1 |
| 1 | 269501648 | GLOVE BOX DOOR | 1 |
| 1 | 269500553 | Latch, Black | 1 |
| 1 | 211400008 | Pin | 1 |
| 2 | 211100002 | Push Nut | 2 |
| 1 | 291000922 | Latch Spring | 1 |
| 293250126 | GASKET | ||
| 293250127 | GASKET | ||
| 1 | 294000744 | TOOL KIT Includes 43 to 46 | 1 |
| 529017300 | FORK WRENCH | ||
| 529000004 | SCREW DRIVER | ||
| XXXX | Not Available As Spare Part - Socket Wrench 16/18 mm | ||
| 1 | 291002553 | Support Sub-Ass'y Includes 47 to 51 | 1 |
| 1 | 293250183 | Strap | 1 |
| 1 | 293250151 | Seal | 1 |
| 4 | 241141360 | Hex. Flange Screw K40 X 13 | 4 |
| 1 | 269501299 | Strap | 1 |
| 1 | 291002603 | Molded Handle | 1 |
| 291002642 | ALUMINUM POST | ||
| 1 | 269501651 | Ball Spring | 1 |
| 2 | 293350062 | Ball 1/4" | 2 |
| 1 | 219902218 | WARNING DECAL (WAKE BAR) | 1 |
| 2 | 293150167 | Type "U" Metallic Drive Screw | 2 |
| 6 | 205484060 | Socket Head Screw M8 X 40 | 6 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass | 6 |
| 1 | 291002711 | Lateral Arm LH | 1 |
| 1 | 291002712 | Lateral Arm RH | 1 |
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
