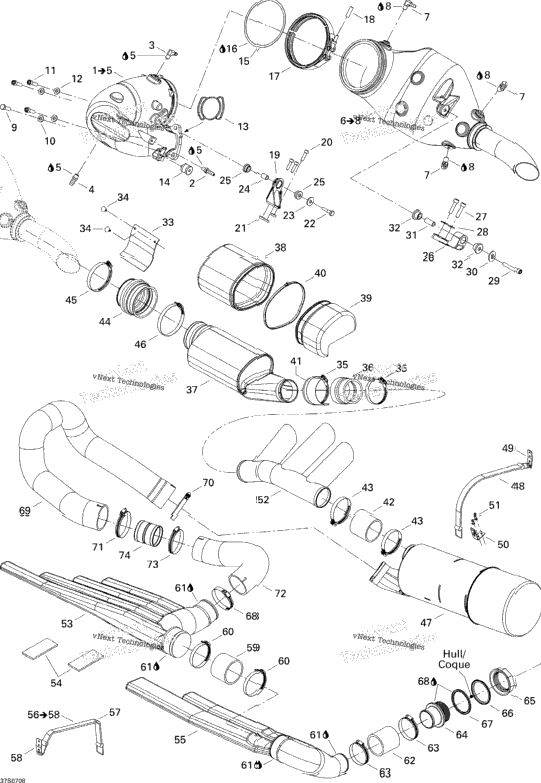

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 274001333 | HEAD PIPE Includes 1 to 5 | ||
| 1 | 293710037 | Male Connector | 1 |
| 293700016 | Elbow Fitting | ||
| 1 | 293710021 | Male Connector | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 274001334 | Cone Pipe Includes 6 to 8 | ||
| 1 | 245103570 | HEX. SCREW M10 X 35 | 1 |
| 1 | 211200051 | Flat Washer | 1 |
| 3 | 244003570 | SOCKET SCREW M10 X 35 | 3 |
| 3 | 211200051 | Flat Washer | 3 |
| 1 | 420931990 | EXHAUST GASKET | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
| 1 | 274000511 | SEALING RING | 1 |
| 1 | 293800090 | Sealant, Loctite, 80 ml | 1 |
| 274000510 | EXHAUST CLAMP | ||
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 274001109 | Pipe Support, Black | ||
| 3 | 244083060 | Socket Head Screw M8 X 30, Scotch Grip | 3 |
| 3 | 250200012 | FLAT WASHER M8.4 | 3 |
| 1 | 245004060 | HEX. SCREW M10 X 40, SCOTCH GRIP | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 274000861 | BUSHING | ||
| 293830065 | RUBBER BUSHING | ||
| 1 | 274001328 | SUPPORT | 1 |
| 2 | 244084070 | SOCKET SCREW M8 X 40 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 244006060 | Socket Screw M10 X 60 | 1 |
| 1 | 274001321 | BUSHING | 1 |
| 293830114 | Rubber Bushing | ||
| 293830109 | Rubber Pad | ||
| 2 | 293730011 | Black, Dart | 2 |
| 2 | 293650006 | TRIDON GEAR CLAMP | 2 |
| 1 | 274001234 | EXHAUST HOSE | 1 |
| 274001219 | Water Separator | ||
| 1 | 274001276 | FRONT MUFFLER COVER | 1 |
| 1 | 274001322 | REAR MUFFLER COVER | 1 |
| 1 | 293750020 | WRAP_TIE 828 X 9 | 1 |
| 274001235 | Heat Shield | ||
| 274001326 | Exhaust Hose | ||
| 1 | 274001314 | EXHAUST BELLOW | 1 |
| 1 | 204000079 | Tridon Clamp | 1 |
| 1 | 293650169 | TRIDON GEAR CLAMP | 1 |
| 274001231 | Muffler Ass'y | ||
| 1 | 293850067 | Strap | 1 |
| 1 | 293850024 | STRAP CLIP | 1 |
| 1 | 293850075 | STRAP CLIP | 1 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 274001230 | Resonator | ||
| 1 | 274000700 | LH UPPER RESONATOR | 1 |
| 2 | 274000752 | RUBBER PAD | 2 |
| 1 | 274000701 | RESONATOR EXTENSION | 1 |
| 293850082 | Strap Ass`Y Includes 56 to 58 | ||
| 1 | 293850036 | Fuel Tank Strap | 1 |
| 1 | 293850030 | Strap Clip | 1 |
| 1 | 274000726 | EXHAUST HOSE | 1 |
| 2 | 204000079 | Tridon Clamp | 2 |
| 274001304 | Exhaust Hose | ||
| 2 | 293650064 | Tridon Clamp | 2 |
| 1 | 274000843 | Exhaust Outlet | 1 |
| 1 | 274000835 | NUT 72 MM | 1 |
| 274000225 | STABILIZING WASHER | ||
| 1 | 293250041 | GASKET | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 274001311 | Exhaust Hose | ||
| 1 | 293650006 | TRIDON GEAR CLAMP | 1 |
| 1 | 293650107 | Tridon Clamp | 1 |
| 1 | 274001312 | EXHAUST HOSE | 1 |
| 2 | 293650107 | Tridon Clamp | 2 |
| 1 | 274001313 | HOSE ADAPTER | 1 |
