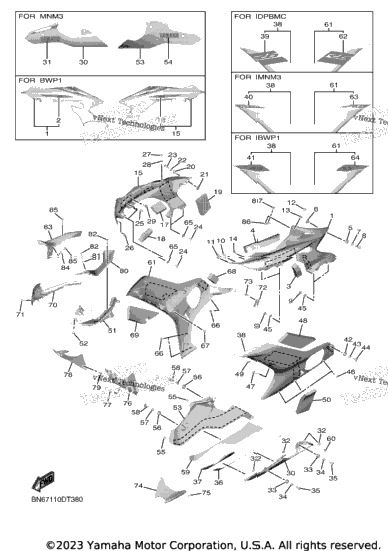

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | BN6-2117V-00-P0 | Cover 7 UR FOR DPBMC | 0 |
| 1 | BN6-2117V-00-P3 | Cover 7 UR FOR MNM3 | 1 |
| 0 | BN6-W217V-20-P2 | Cover Assy 7 UR FOR BWP1 | 0 |
| 0 | BN6-28398-20-00 | . . Graphic 5 FOR BWP1 | 0 |
| 1 | 90520-30002-00 | Damper, Plate | 1 |
| 1 | 7CH-22889-00-00 | Seal 12 | 1 |
| 1 | 90480-12613-00 | Grommet | 1 |
| 1 | 90387-067K8-00 | Collar | 1 |
| 1 | 90201-07081-00 | Washer, Plate | 1 |
| 1 | 90111-06063-00 | Bolt,Hex. Socket Button | 1 |
| 4 | 90111-05045-00 | Bolt, Hexagon Socket Button | 4 |
| 1 | 90183-060A6-00 | Nut, Spring | 1 |
| 1 | 90464-07018-00 | .Clamp | 1 |
| 1 | 90149-06298-00 | .Screw | 1 |
| 1 | 90201-060H9-00 | Washer, Plate | 1 |
| 1 | 90468-04001-00 | Clip | 1 |
| 0 | BN6-2117W-00-P0 | Cover 8 UR FOR DPBMC | 0 |
| 1 | BN6-2117W-00-P3 | Cover 8 UR FOR MNM3 | 1 |
| 0 | BN6-W217W-20-P2 | Cover Assy 8 UR FOR BWP1 | 0 |
| 0 | BN6-28399-20-00 | . . Graphic 6 FOR BWP1 | 0 |
| 1 | 90520-60001-00 | Damper, Plate | 1 |
| 1 | 90520-30008-00 | Damper, Plate | 1 |
| 1 | 7CH-2289T-00-00 | Seal 26 | 1 |
| 0 | BN6-28385-00-P0 | Cover, Under UR FOR BWP1 | 0 |
| 0 | BN6-28385-00-P1 | Cover, Lower UR FOR DPBMC | 0 |
| 1 | BN6-28385-00-P2 | Cover, Under UR FOR MNM3 | 1 |
| 1 | 99244-00180-00 | Emblem, Yamaha FOR MNM3 | 1 |
| 3 | 90183-05076-00 | Nut, Spring | 3 |
| 2 | 90480-14003-00 | Grommet | 2 |
| 2 | 90387-06260-00 | Collar | 2 |
| 2 | 90111-06040-00 | Bolt,Hex. Socket Button | 2 |
| 1 | BN6-2838G-00-00 | Seat 1 | 1 |
| 1 | BN6-2836T-00-00 | Damper, Locating 1 | 1 |
| 0 | BN6-W283U-30-P0 | Panel Assy 1 UR FOR DPBMC | 0 |
| 1 | BN6-W283U-40-P3 | Panel Assy 1 UR FOR MNM3 | 1 |
| 0 | BN6-W283U-50-P2 | Panel Assy 1 UR FOR BWP1 | 0 |
| 0 | BN6-28391-20-00 | . . Graphic 1 FOR DPBMC | 0 |
| 1 | BN6-28391-30-00 | . . Graphic 1 FOR MNM3 | 1 |
| 0 | BN6-28391-40-00 | . . Graphic 1 FOR BWP1 | 0 |
| 1 | 90480-14003-00 | Grommet | 1 |
| 1 | 90387-06260-00 | Collar | 1 |
| 1 | 90111-06040-00 | Bolt,Hex. Socket Button | 1 |
| 4 | 90183-05076-00 | Nut, Spring | 4 |
| 3 | 90111-05045-00 | Bolt, Hexagon Socket Button | 3 |
| 1 | 90269-06046-00 | Rivet | 1 |
| 1 | BN6-28416-00-00 | Damper 2 | 1 |
| 1 | 5YT-24665-00-00 | Damper | 1 |
| 1 | 90520-20013-00 | Damper, Plate | 1 |
| 1 | BN6-28219-00-00 | Cover 1 | 1 |
| 1 | 90111-05045-00 | Bolt, Hexagon Socket Button | 1 |
| 0 | BN6-28395-00-P0 | Cover, Under 2 UR FOR BWP1 | 0 |
| 0 | BN6-28395-00-P1 | Cover, Under 2 UR FOR DPBMC | 0 |
| 1 | BN6-28395-00-P2 | Cover, Under 2 UR FOR MNM3 | 1 |
| 2 | 90183-05076-00 | Nut, Spring | 2 |
| 1 | BN6-2848K-00-00 | Seat 2 | 1 |
| 0 | BN6-W283V-30-P0 | Panel Assy 2 UR FOR DPBMC | 0 |
| 1 | BN6-W283V-40-P3 | Panel Assy 2 UR FOR MNM3 | 1 |
| 0 | BN6-W283V-50-P2 | Panel Assy 2 UR FOR BWP1 | 0 |
| 0 | BN6-28392-20-00 | . . Graphic 2 FOR DPBMC | 0 |
| 1 | BN6-28392-30-00 | . . Graphic 2 FOR MNM3 | 1 |
| 0 | BN6-28392-40-00 | . . Graphic 2 FOR BWP1 | 0 |
| 1 | 90520-30007-00 | Damper, Plate | 1 |
| 1 | BN6-28435-00-00 | Damper 4 | 1 |
| 1 | BN6-28229-00-00 | Cover 2 | 1 |
| 1 | BN6-2836G-00-00 | Bracket 4 | 1 |
| 1 | 90105-06020-00 | Bolt, Flange | 1 |
| 1 | BN6-2836K-00-00 | Panel, Inner 1 | 1 |
| 1 | BN6-2836L-00-00 | Panel, Inner 2 | 1 |
| 4 | 90269-06008-00 | Rivet | 4 |
| 1 | BN6-2836M-00-00 | Panel, Inner 3 | 1 |
| 3 | 90269-06008-00 | Rivet | 3 |
| 1 | BN6-2837L-00-00 | Panel, Console 1 | 1 |
| 1 | 5SL-84753-00-00 | Damper | 1 |
| 2 | 90269-06008-00 | Rivet | 2 |
| 1 | BN6-2837M-00-00 | Panel, Console 2 | 1 |
| 1 | BN6-28357-00-00 | Stay 2 | 1 |
| 1 | 90111-05003-00 | Bolt,Hex. Socket Button | 1 |
