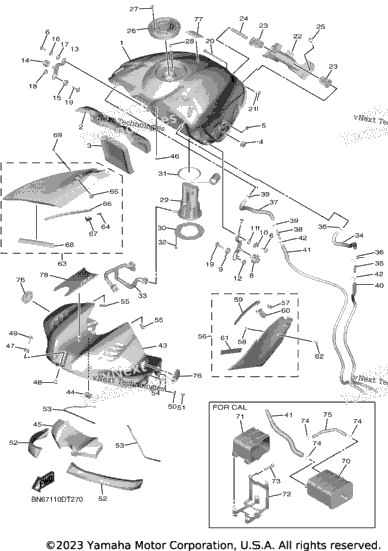

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | BN6-YK241-00-P0 | Fuel Tank Comp UR FOR DPBMC | 0 |
| 0 | BN6-24110-00-P2 | Fuel Tank Comp UR FOR BWP1 | 0 |
| 1 | BN6-24110-00-P3 | Fuel Tank Comp UR FOR MNM3 | 1 |
| 1 | BN6-2414J-00-00 | Damper, Plate 2 | 1 |
| 1 | 90520-15014-00 | Damper, Plate | 1 |
| 2 | 14B-2836U-00-00 | Damper, Locating 2 | 2 |
| 2 | 5PW-2411J-01-00 | Damper, Side Cover | 2 |
| 2 | 90111-06137-00 | Bolt,Hex. Socket Button | 2 |
| 1 | BN6-24191-00-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 5VY-24181-00-00 | Damper, Locating 1 | 1 |
| 1 | 90480-16278-00 | Grommet | 1 |
| 1 | 90387-06171-00 | Collar | 1 |
| 1 | BN6-24183-00-00 | Damper, Locating 3 | 1 |
| 1 | 90387-066Y6-00 | Collar | 1 |
| 1 | BN6-24191-10-00 | Bracket, Fuel Tank 1 | 1 |
| 2 | 90119-06262-00 | Bolt, With Washer | 2 |
| 1 | 95812-06090-00 | Bolt, Flange | 1 |
| 1 | 95702-06500-00 | Nut, Flange | 1 |
| 1 | BN6-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 4 | 90111-06071-00 | Bolt, Hexagon Socket Button | 4 |
| 1 | 39P-24602-00-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | BN6-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 2CR-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 1RC-24486-00-00 | O-Ring | 1 |
| 4 | 90119-05015-00 | Bolt, With Washer | 4 |
| 1 | 13S-13971-01-00 | Pipe, Fuel 1 | 1 |
| 1 | BN6-24313-00-00 | Pipe 3 | 1 |
| 1 | 4XY-14568-00-00 | Joint | 1 |
| 2 | 90467-09006-00 | Clip | 2 |
| 1 | BN6-24313-20-00 | Pipe 3 FOR CALIFORNIA | 1 |
| 1 | BN6-24314-00-00 | Pipe 4 | 1 |
| 1 | BN6-24317-00-00 | Pipe 7 FOR U49 | 1 |
| 0 | BN6-24317-20-00 | Pipe 7 FOR CALIFORNIA | 0 |
| 0 | BN6-2171A-00-P0 | Cover, Top UR FOR DPBMC | 0 |
| 0 | BN6-2171A-00-P2 | Cover, Top UR FOR BWP1 | 0 |
| 1 | BN6-2171A-00-P3 | Cover, Top UR FOR MNM3 | 1 |
| 1 | 90520-08006-00 | Damper, Plate | 1 |
| 1 | BN6-12232-00-00 | Damper | 1 |
| 2 | 97702-50012-00 | Screw, Tapping | 2 |
| 1 | 90480-12023-00 | .Grommet | 1 |
| 1 | 90387-06203-00 | .Collar | 1 |
| 1 | 90110-06233-00 | Bolt, Hexagon Socket Head | 1 |
| 2 | 90387-05058-00 | Collar | 2 |
| 2 | 97012-05010-00 | Bolt | 2 |
| 2 | 2S3-2414N-00-00 | Damper, Plate 4 | 2 |
| 2 | 5PW-2414H-00-00 | Damper, Plate 1 | 2 |
| 2 | 5SL-21268-00-00 | Seal | 2 |
| 2 | 90520-05024-00 | Damper, Plate | 2 |
| 1 | BN6-24106-00-00 | Tank Side Cover Assy 1 | 1 |
| 1 | 5SL-21268-00-00 | . Seal | 1 |
| 1 | 90387-05035-00 | . Collar | 1 |
| 1 | 7TA-22875-00-00 | . .Seal 3 | 1 |
| 1 | 7CF-22869-00-00 | . .Mole | 1 |
| 1 | 90520-05023-00 | . .Damper, Plate | 1 |
| 1 | 90111-05048-00 | Bolt,Hex. Socket Button | 1 |
| 1 | BN6-24108-00-00 | Tank Side Cover Assy 2 | 1 |
| 0 | 2CR-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 2CR-24182-00-00 | Damper, Locating 2 FOR CALIFORNIA | 0 |
| 0 | BN6-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 90110-06187-00 | Bolt, Hexagon Socket Head FOR CALIFORNIA | 0 |
| 0 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 |
| 0 | 90445-10059-00 | Hose FOR CALIFORNIA | 0 |
| 2 | 1RC-2413B-00-00 | Emblem | 2 |
| 1 | 29P-2816R-00-00 | Label, Warning General Info | 1 |
| 0 | BN6-24244-00-00 | Graphic, Fuel Tank 1 FOR DPBMC | 0 |
