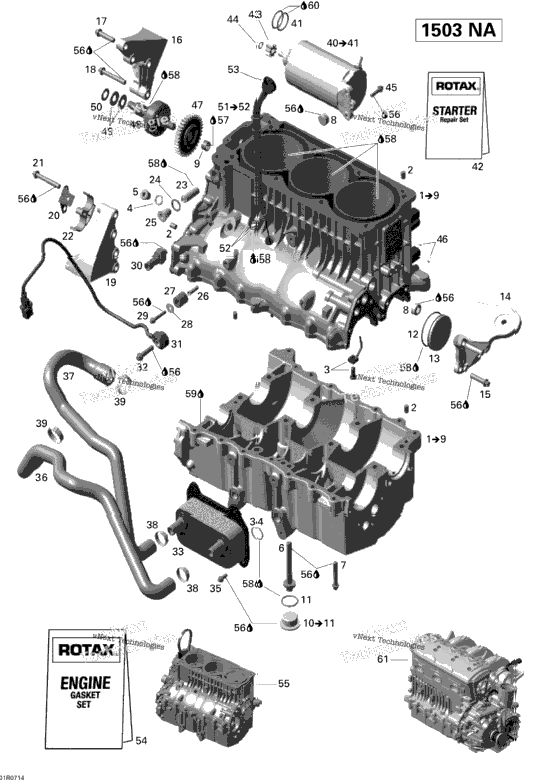

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420890998 | Cylinder Block With Sleeves Includes 1 to 9 | 1 |
| 4 | 420632010 | Center Pin 8 X 12 | 4 |
| 3 | 420956776 | Oil Hole Adaptor | 3 |
| 1 | 420250015 | Washer, Copper | 1 |
| 1 | 420841923 | Plug Screw M12 | 1 |
| 8 | 420641120 | Torx Flange Screw M10 X 82 | 8 |
| 15 | 420940077 | Torx Flange Screw M8 X 45 | 15 |
| 2 | 420641317 | Plug Screw M20 X 1.5 | 2 |
| 1 | 420232480 | Needle Bushing | 1 |
| 8 | 420641171 | Plug Screw M30 X 1.5 Includes 10 to 11 | 8 |
| 1 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws | 1 |
| 1 | 420430405 | O-Ring | 1 |
| 1 | 420660110 | Plug Cover | 1 |
| 1 | 420811790 | Front Engine Bracket | 1 |
| 4 | 420440867 | Torx Flange Screw M8 X 35 | 4 |
| 1 | 420811785 | Engine Bracket PTO, Exhaust | 1 |
| 2 | 420440867 | Torx Flange Screw M8 X 35 | 2 |
| 2 | 420440397 | Torx Flange Screw M8 X 55 | 2 |
| 1 | 420811780 | Engine Bracket PTO, Intake | 1 |
| 1 | 420851740 | Retaining Plate | 1 |
| 4 | 420440397 | Torx Flange Screw M8 X 55 | 4 |
| 1 | 420660290 | Hose Bracket | 1 |
| 420236253 | Chain Tensioner | ||
| 1 | 420430623 | Gasket Ring | 1 |
| 1 | 420640458 | Plug Screw M16 X 1.5 | 1 |
| 2 | 420847971 | Spacer | 2 |
| 2 | 420660090 | Rubber Bracket | 2 |
| 2 | 420827968 | Flat Washer M6 | 2 |
| 2 | 420440277 | Torx Flange Screw M6 X 35 | 2 |
| 1 | 420856532 | Oil Pressure Switch | 1 |
| 1 | 270000484 | Noise Sensor | 1 |
| 1 | 420440867 | Torx Flange Screw M8 X 35 | 1 |
| 1 | 420888852 | Oil Radiator | 1 |
| 2 | 420250055 | O-Ring | 2 |
| 4 | 420440167 | Torx Flange Screw M6 X 16 | 4 |
| 1 | 420922798 | Formed Hose | 1 |
| 1 | 420922792 | Formed Hose | 1 |
| 2 | 420851663 | Gear Clamp | 2 |
| 2 | 420851673 | Gear Clamp | 2 |
| 1 | 420888994 | Electric Starter Ass'y Includes 40 to 41 | 1 |
| 2 | 420631310 | O-Ring | 2 |
| 1 | 420664710 | CARBON BRUSH SET | 1 |
| 1 | 420834522 | Starter Gear, 9 Teeth | 1 |
| 1 | 420845600 | Retaining Ring | 1 |
| 2 | 420440237 | Torx Flange Screw M6 X 25 | 2 |
| 2 | 420249073 | Grooved Pin | 2 |
| 1 | 420889872 | Friction Clutch | 1 |
| 1 | 420890632 | Bendix Starter | 1 |
| 2 | 420238300 | Spring Washer | 2 |
| 1 | 420827261 | Thrust Washer | 1 |
| 1 | 420956944 | Oil Level Tube Includes 51 to 52 | 1 |
| 2 | 420950810 | O-Ring | 2 |
| 1 | 420956932 | Oil Level Gauge | 1 |
| 1 | 420889773 | Engine Gasket Set | 1 |
| 420150311 | Short Block | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g | 1 |
| XXXX | Not Available As Spare Part - Engine Oil | ||
| 1 | 293800081 | Loctite 5910, 300 ml | 1 |
| 1 | 293550021 | Isoflex Grease, TOPAS NB52, 50 g | 1 |
| 1 | 420150315 | Engine Long Block, 1503 NA | 1 |
| 1 | 421000656 | REBUILT - BASIC LONG BLOCK 1503NA | 1 |
| 1 | 421000641 | REBUILT - LONG BLOCK 1503NA | 1 |
