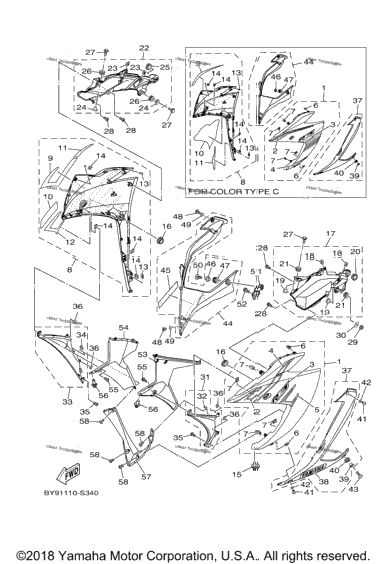

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1WD-XF83L-10-P5 | Body, Front Under 1 Sub Assy UR FOR MBL2 | 1 |
| 0 | 1WD-XF83L-B0-P2 | Body, Front Under 1 Sub Assy UR FOR WM6 | 0 |
| 1 | 1WD-F8393-B0-00 | . . Graphic 3 UR FOR MBL2 | 1 |
| 1WD-F8393-C0-00 | . . Graphic 3 UR FOR WM6 | ||
| 1 | 2MS-F8398-80-00 | . . Graphic 5 UR FOR MBL2 | 1 |
| 0 | 2MS-F8398-90-00 | . . Graphic 5 UR FOR WM6 | 0 |
| 1 | 1WD-F83GA-90-00 | . . Graphic, 7 UR FOR MBL2 | 1 |
| 0 | 1WD-F83GA-A0-00 | . . Graphic, 7 UR FOR WM6 | 0 |
| 1 | 1WD-F83GC-40-00 | . . Graphic, 9 FOR MBL2 | 1 |
| 2 | 90183-050A7-00 | . Nut, Spring | 2 |
| 4 | 90183-05807-00 | . Nut, Spring | 4 |
| 1 | 1WD-XF83M-10-P5 | Body, Front Under 2 Sub Assy UR FOR MBL2 | 1 |
| 0 | 1WD-XF83M-B0-P2 | Body, Front Under 2 Sub Assy UR FOR WM6 | 0 |
| 1 | 1WD-F8394-B0-00 | . . Graphic 4 UR FOR MBL2 | 1 |
| 0 | 1WD-F8394-C0-00 | . . Graphic 4 UR FOR WM6 | 0 |
| 0 | 2MS-F8399-90-00 | . . Graphic 6 UR FOR WM6 | 0 |
| 1 | 1WD-F83GB-90-00 | . . Graphic, 8 UR FOR MBL2 | 1 |
| 0 | 1WD-F83GB-A0-00 | . . Graphic, 8 UR FOR WM6 | 0 |
| 1 | 1WD-F83GD-40-00 | . . Graphic, 10 FOR MBL2 | 1 |
| 1 | 90269-06081-00 | Rivet | 1 |
| 2 | 90480-01558-00 | Grommet | 2 |
| 0 | 1WD-XF11W-10-P0 | Cover 7 UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF11W-00-P2 | Cover 7 UR SMX FOR MBL2 | 1 |
| 2 | 90387-06899-00 | . .Collar | 2 |
| 1 | 90480-01558-00 | . Grommet | 1 |
| 2 | 90480-12808-00 | . .Grommet | 2 |
| 0 | 1WD-XF11X-10-P0 | Cover 8 UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF11X-00-P2 | Cover 8 UR SMX FOR MBL2 | 1 |
| 3 | 90119-06810-00 | Bolt, With Washer | 3 |
| 4 | 97707-50016-00 | Screw, Truss Head Tapping | 4 |
| 1 | 95702-06500-00 | Nut, Flange | 1 |
| 1 | 90201-06380-00 | Washer Plain | 1 |
| 0 | 1WD-XF835-00-P0 | Panel Assy UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF835-00-P1 | Panel Assy UR SMX FOR MBL2 | 1 |
| 1 | 90183-05807-00 | . Nut, Spring | 1 |
| 0 | 1WD-XF83B-00-P0 | Panel Assy 2 UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF83B-00-P1 | Panel Assy 2 UR SMX FOR MBL2 | 1 |
| 2 | 97707-50016-00 | Screw, Truss Head Tapping | 2 |
| 4 | 90183-06815-00 | Nut, Spring | 4 |
| 0 | 1WD-XF838-00-P0 | Under Cover Assy 1 UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF838-10-P2 | Under Cover Assy 1 UR SMX FOR MBL2 | 1 |
| 1 | 1WD-F8328-30-00 | . . Emblem FOR MBL2 | 1 |
| 1 | 90387-06899-00 | . .Collar | 1 |
| 1 | 90480-12808-00 | . .Grommet | 1 |
| 2 | 90111-05003-00 | Bolt, Hex. Socket Button | 2 |
| 2 | 90202-05180-00 | Washer, Plate | 2 |
| 1 | 90111-06117-00 | Bolt, Hex. Socket Button | 1 |
| 0 | 1WD-XF839-00-P0 | Under Cover Assy 2 UR MBL2 FOR WM6 | 0 |
| 1 | 1WD-XF839-10-P2 | Under Cover Assy 2 UR SMX FOR MBL2 | 1 |
| 1 | 1WD-F833E-00-00 | Bracket 8 | 1 |
| 1 | 95022-06012-00 | .Bolt, Flange | 1 |
| 1 | 1WD-F836K-00-00 | Panel, Inner 1 | 1 |
| 1 | 1WD-F836L-00-00 | Panel, Inner 2 | 1 |
| 2 | 90269-06081-00 | Rivet | 2 |
| 1 | 1WD-F836M-00-00 | Panel, Inner 3 | 1 |
