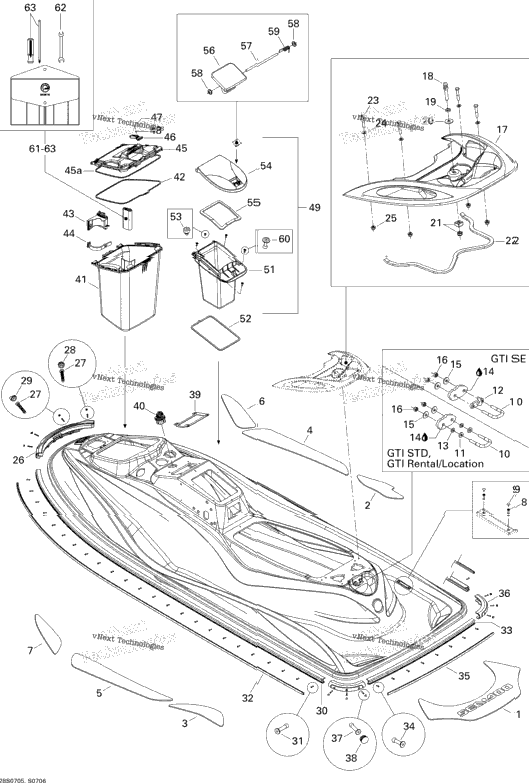

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291002047 | REAR CARPET | ||
| 291002379 | RH Center Rear Carpet | ||
| 291002378 | LH CENTER REAR CARPET | ||
| 291002228 | RH Center Front Carpet | ||
| 291002229 | LH Center Front Carpet | ||
| 291002230 | RH Front Carpet | ||
| 291002231 | LH Front Carpet | ||
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 292000011 | U-CLAMP | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 291002351 | Hook | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291002510 | Rear Handle Grab | 1 |
| 1 | 291000945 | SEAT STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 271000598 | NUT HOUSING ASS'Y | ||
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 4 | 207184560 | HEX. SCREW M8 X 45 | 4 |
| 8 | 234081600 | Stainless, Flat Washer 8 mm | 8 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 291001942 | BUMPER NOSE, BLACK | ||
| 4 | 250000236 | TORX SCREW 10-14 X 1-1/8 | 4 |
| 291001519 | Bumper Plug, Black | ||
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 2 | 291002240 | Side Bumper | 2 |
| 48 | 293150005 | Pop Rivet 3/16" | 48 |
| 204050271 | SIDE BUMPER TRIM | ||
| 1 | 291002242 | REAR BUMPER, BLACK | 1 |
| 8 | 293150005 | Pop Rivet 3/16" | 8 |
| 204050279 | REAR BUMPER TRIM, BLACK | ||
| 2 | 291002244 | Bumper Corner | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 1 | 293250171 | GASKET | 1 |
| 1 | 293720042 | GROMMET | 1 |
| 1 | 269501491 | Storage Tray Ass'y | 1 |
| 1 | 219704374 | Was 293250161 Gasket | 1 |
| 1 | 269501501 | Extinguisher Support | 1 |
| 1 | 269500408 | Strap | 1 |
| 1 | 269501643 | Storage Tray Cover Ass'y | 1 |
| 1 | 293250168 | Gasket | 1 |
| 1 | 291002516 | Latch | 1 |
| 1 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 1 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| XXXX | Not Available As Spare Part - Glove Box Ass'y | ||
| XXXX | Not Available As Spare Part - Glove Box Case Ass'y | ||
| 1 | 291002248 | Glove Box | 1 |
| 291002251 | GASKET | ||
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 291002249 | Glove Box Door | 1 |
| 1 | 291002250 | Gasket | 1 |
| 1 | 269500553 | Latch, Black | 1 |
| 1 | 211400008 | Pin | 1 |
| 2 | 211100002 | Push Nut | 2 |
| 1 | 291000922 | Latch Spring | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 294000744 | TOOL KIT | 1 |
| 529017300 | FORK WRENCH | ||
| 529000004 | SCREW DRIVER |
