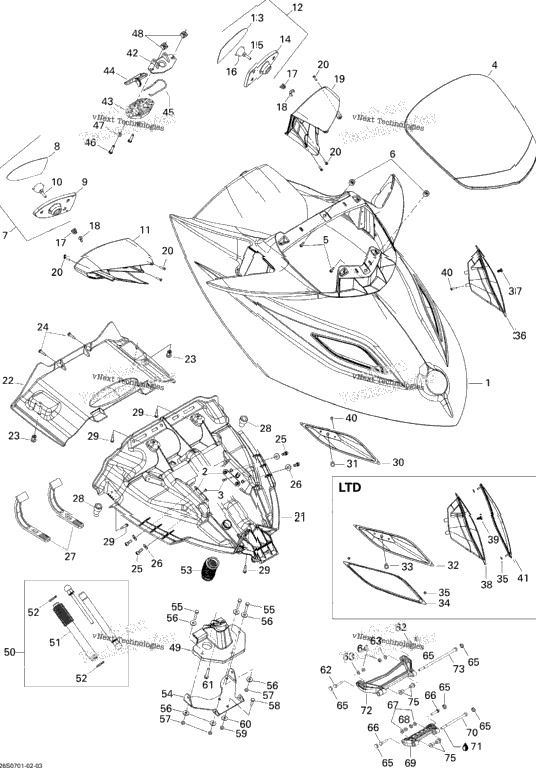

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501534 | STORAGE COVER STD, Includes 1 to 3 | ||
| 1 | 269501562 | STORAGE COVER, RED WAKE, Includes 1 to 3 | 1 |
| 2 | 277001479 | PLATE | 2 |
| 2 | 293150006 | Pop Rivet 1/8" | 2 |
| 1 | 269501612 | Deflector | 1 |
| 2 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 2 |
| 2 | 291001203 | Spacer | 2 |
| 269501602 | RH Mirror Ass'y STD | ||
| 1 | 269501604 | RH MIRROR ASS'Y WAKE | 1 |
| 269501328 | RH Mirror STD | ||
| 1 | 269501292 | RH MIRROR WAKE | 1 |
| 269501330 | Mirror Frame STD | ||
| 269500697 | Frame Mirror WAKE | ||
| 269501333 | MIRROR BALL JOINT STD | ||
| 269500079 | MIRROR BALL JOINT WAKE | ||
| 1 | 269501564 | RH MIRROR HOUSING, RED WAKE | 1 |
| 1 | 269501607 | RH MIRROR HOUSING STD | 1 |
| 269501603 | LH Mirror Ass'y STD | ||
| 269501605 | LH MIRROR HOUSING WAKE | ||
| 269501337 | LH Mirror Ass'y STD | ||
| 1 | 269501294 | LH MIRROR WAKE | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 2 | 232661600 | WING NUT M6 | 2 |
| 269501565 | LH mirror housing, Red WAKE | ||
| 269501608 | LH Mirror Housing STD | ||
| 6 | 250000287 | Flange Torx Screw K40 X 16 | 6 |
| 269501552 | STORAGE COVER SUB-ASS'Y | ||
| 1 | 269501610 | ACCESS BOARD | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 4 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 269500408 | Strap | 2 |
| 2 | 293830119 | Rubber Buffer | 2 |
| 5 | 211000023 | Hex. Screw 10-14 X 7/8” | 5 |
| 1 | 269501614 | RH GRILL ASS'Y | 1 |
| 1 | 293730016 | Dart, Black | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 269501615 | LH GRILL ASS'Y | 1 |
| 2 | 250000287 | Flange Torx Screw K40 X 16 | 2 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 269501166 | Nut Housing Ass'y | 2 |
| 1 | 269501553 | SHOCK BASE | 1 |
| 1 | 269501555 | Shock Ass'y | 1 |
| 1 | 269501557 | BELLOW | 1 |
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 293720078 | GROMMET | 1 |
| 1 | 269501639 | PIVOT SUPPORT | 1 |
| 3 | 207163060 | Hex. Screw M6 X 30 | 3 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 3 | 232561200 | Elastic Stop Nut M6, Brass | 3 |
| 1 | 207162060 | Hex. Forming Screw M6 X 20 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 1 |
| 2 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 6 | 414436900 | Black Snap Cap | 6 |
| 1 | 269501482 | Front Arm | 1 |
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 269501481 | REAR ARM | 1 |
| 1 | 230065060 | Hex. Screw M6 X 150 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 269500706 | Sleeve | 4 |
