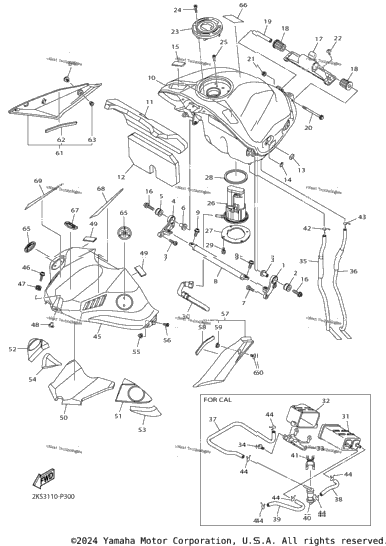

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2CR-24191-00-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 90480-18008-00 | .Grommet | 1 |
| 1 | 90387-06091-00 | Collar | 1 |
| 1 | 2CR-24192-00-00 | Bracket, Fuel Tank 2 | 1 |
| 4 | 91312-06025-00 | Bolt, Hexagon Socket Head | 4 |
| 1 | 2CR-2142V-00-00 | Cross Bar | 1 |
| 2 | 90110-08097-00 | Bolt, Hexagon Socket Head | 2 |
| 2KS-YK241-00-00 | Fuel Tank Comp | ||
| 1 | 2CR-2414H-00-00 | Damper, Plate 1 | 1 |
| 1 | 2CR-2414J-00-00 | Damper, Plate 2 | 1 |
| 2 | 13S-21639-00-00 | Damper 2 | 2 |
| 2 | 5PW-2411J-01-00 | Damper, Side Cover | 2 |
| 2 | 5XT-2411G-00-00 | .Hook, Side Cover 1 | 2 |
| 2 | 90110-06346-00 | Bolt, Hexagon Socket Head | 2 |
| 1 | 2CR-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 1 | 95812-06090-00 | Bolt, Flange | 1 |
| 1 | 95702-06500-00 | Nut, Flange | 1 |
| 4 | 90111-06071-00 | Bolt,Hex. Socket Button | 4 |
| 1 | 2CR-24602-00-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 2CR-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 2CR-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 1RC-24486-00-00 | O-Ring | 1 |
| 4 | 90119-05015-00 | Bolt, With Washer | 4 |
| 1 | 2CR-13971-00-00 | Pipe, Fuel 1 | 1 |
| 0 | 2CR-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 2CR-24182-00-00 | Damper, Locating 2 FOR CALIFORNIA | 0 |
| 0 | 2CR-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 90149-06084-00 | Screw FOR CALIFORNIA | 0 |
| 1 | 2CR-24312-00-00 | Pipe 2 | 1 |
| 1 | 2CR-24313-00-00 | Pipe 3 | 1 |
| 0 | 2CR-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 |
| 0 | 2CR-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 |
| 0 | 2CR-24316-00-00 | Pipe 6 FOR CALIFORNIA | 0 |
| 0 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 |
| 0 | 90464-15001-00 | Clamp FOR CALIFORNIA | 0 |
| 1 | 90467-11106-00 | Clip | 1 |
| 1 | 90467-090A2-00 | Clip | 1 |
| 0 | 90467-090A2-00 | Clip FOR CALIFORNIA | 0 |
| 1 | 2CR-2171A-00-0X | Cover, Top | 1 |
| 1 | 90110-06233-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90480-12023-00 | Grommet | 1 |
| 1 | 90387-06203-00 | .Collar | 1 |
| 1 | 2CR-24181-01-00 | Damper, Locating 1 | 1 |
| 1 | 2CR-2414K-00-00 | Damper, Plate 3 | 1 |
| 1 | 2CR-2414N-00-00 | Damper, Plate 4 | 1 |
| 1 | 2CR-2414P-00-00 | Damper, Plate 5 | 1 |
| 1 | 2CR-2414R-00-00 | Damper, Plate 6 | 1 |
| 2 | 90179-05523-00 | Nut | 2 |
| 2 | 98902-05014-00 | Screw, Bind | 2 |
| 1 | 2CR-24106-00-00 | Tank Side Cover Assy 1 | 1 |
| 1 | 2C0-2414N-00-00 | . .Damper, Plate 4 | 1 |
| 1 | 90387-05035-00 | . Collar | 1 |
| 1 | 90111-05019-00 | Bolt, Hex. Socket Button | 1 |
| 1 | 2CR-24108-00-00 | Tank Side Cover Assy 2 | 1 |
| 2 | 1RC-2413B-00-00 | Emblem | 2 |
| 1 | 29P-2816R-00-00 | Label, Warning General Info | 1 |
| 1 | 2KS-2416B-00-00 | .Emblem | 1 |
| 1 | 2KS-2424A-00-00 | Graphic 7 | 1 |
| 1 | 2KS-2424B-00-00 | Graphic 8 | 1 |
