Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

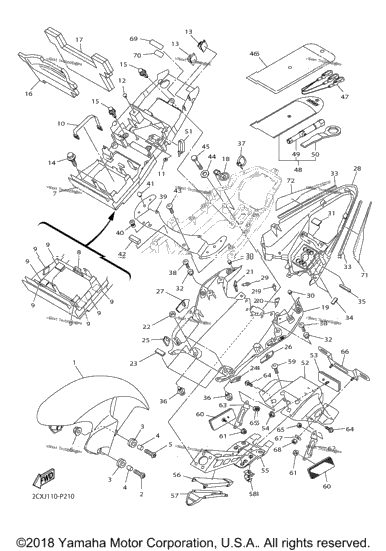

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | 2C0-21511-00-P0 | Fender, Front UR FOR DPBMC | 0 |
| 0 | 2C0-21511-00-P9 | Fender, Front UR FOR BWC1 | 0 |
| 1 | 2C0-21511-00-P8 | Fender, Front UR MBL2 FOR SMX | 1 |
| 2 | 90111-06043-00 | Bolt, Hex. Socket Button | 2 |
| 4 | 90480-14003-00 | Grommet | 4 |
| 4 | 90387-06057-00 | Collar | 4 |
| 2 | 90111-06030-00 | Bolt, Hex. Socket Button | 2 |
| 2 | 95702-06500-00 | Nut, Flange | 2 |
| 13S-8212B-00-00 | Box, Battery 1 | ||
| 1 | 51Y-21639-00-00 | Damper 2 | 1 |
| 8 | 13S-21649-00-00 | Damper | 8 |
| 1 | 133-82131-00-00 | Band, Battery | 1 |
| 2 | 90183-04039-00 | Nut, Spring | 2 |
| 3 | 90338-06018-00 | Plug | 3 |
| 2 | 90464-13185-00 | Clamp | 2 |
| 2 | 90109-06171-00 | Bolt | 2 |
| 3 | 90269-07010-00 | Rivet | 3 |
| 1 | 13S-21652-00-00 | Protector | 1 |
| 1 | 13S-24140-00-00 | Damper Plate Assy | 1 |
| 1 | 13S-21376-00-00 | Band, Tool | 1 |
| 1 | 13S-21611-00-P3 | Fender, Rear UR FOR SMX | 1 |
| 0 | 13S-21611-00-P1 | Fender, Rear UR FOR BWC1 | 0 |
| 0 | 13S-21611-00-PB | Fender, Rear UR MS1 FOR DPBMC | 0 |
| 1 | 13S-2172P-00-00 | Seat | 1 |
| 1 | 13S-2173P-00-00 | Seat 2 | 1 |
| 2 | 13S-21735-00-00 | Seal 2 | 2 |
| 2 | 4D9-21717-00-00 | Damper | 2 |
| 1 | 13S-21669-00-00 | Seal | 1 |
| 1 | 13S-216A2-00-00 | Seal, 2 | 1 |
| 1 | 13S-216A3-00-00 | Seal, 3 | 1 |
| 1 | 13S-216A4-00-00 | Seal, 4 | 1 |
| 0 | 13S-2162R-00-P2 | Fender 2 UR FOR DPBMC | 0 |
| 1 | 13S-2162R-00-P3 | Fender 2 UR FOR SMX | 1 |
| 0 | 13S-2162R-00-P0 | Fender 2 UR FOR BWC1 | 0 |
| 2 | 90269-06001-00 | Rivet | 2 |
| 2 | 90338-06018-00 | Plug | 2 |
| 1 | 5GM-27445-00-00 | Plate 1 | 1 |
| 4 | 90480-08005-00 | Grommet | 4 |
| 2 | 13S-21732-00-00 | Seal 1 | 2 |
| 2 | 13S-21575-00-00 | Seal 1 | 2 |
| 2 | 13S-2173N-00-00 | Seal 4 | 2 |
| 2 | 90269-07010-00 | Rivet | 2 |
| 1 | 90464-13073-00 | Clamp | 1 |
| 4 | 97702-50014-00 | Screw, Tapping | 4 |
| 1 | 13S-21131-00-00 | Bracket | 1 |
| 2 | 90179-06010-00 | Nut | 2 |
| 2 | 4G0-21639-00-00 | Damper 2 | 2 |
| 1 | 5YT-24665-00-00 | Damper | 1 |
| 4 | 90111-06104-00 | Bolt, Hex. Socket Button | 4 |
| 4 | 13S-21615-00-00 | Washer, Special 1 | 4 |
| 4 | 90101-06056-00 | Bolt | 4 |
| 1 | 2C0-28100-00-00 | Tool Kit | 1 |
| 1 | 2C0-21370-00-00 | Helmet Hanger Assy | 1 |
| 1 | 2C0-28110-00-00 | Tool Kit, 2 | 1 |
| 1 | 4XV-2814F-00-00 | . .Box, Spark Plug | 1 |
| 1 | 4FM-28135-00-00 | . .Spanner, Special | 1 |
| 1 | 90465-13M11-00 | Clamp | 1 |
| 1 | 2C0-21629-11-00 | Guard, Mud | 1 |
| 1 | 3Y6-85130-02-00 | Rear Reflector Assy | 1 |
| 1 | 95602-05200-00 | .Nut, Self-Locking | 1 |
| 1 | 13S-21640-00-00 | Rear Stay Comp | 1 |
| 1 | 2C0-2163A-00-00 | Cover, Rear Fender 1 | 1 |
| 1 | 2C0-2163E-00-00 | Cover, Rear Fender 2 | 1 |
| 1 | 90464-14228-00 | Clamp | 1 |
| 4 | 90109-06182-00 | Bolt | 4 |
| 2 | 3Y6-85130-02-00 | Rear Reflector Assy | 2 |
| 2 | 95702-05500-00 | Nut, Flange | 2 |
| 1 | 2C0-21688-00-00 | Bracket, Rear Stay | 1 |
| 1 | 2C0-21689-00-00 | Bracket, Rear Stay 2 | 1 |
| 2 | 90159-06011-00 | Screw, With Washer | 2 |
| 2 | 95602-06100-00 | .Nut, Self-Locking | 2 |
| 1 | 5MT-84751-00-00 | Bracket, License | 1 |
| 2 | 90201-06057-00 | .Washer, Plate | 2 |
| 1 | 3JJ-28446-A1-00 | Label, Caution | 1 |
| 1 | 3TB-24877-A0-00 | Label, Caution | 1 |
| 2CX-2173E-00-00 | Graphic 1 FOR BWC1 | ||
| 0 | 2CX-2173F-00-00 | Graphic 2 FOR BWC1 | 0 |
