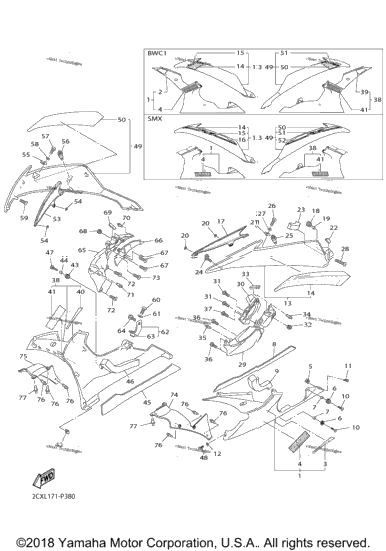

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 90269-06002-00 | Rivet | 2 |
| 0 | 13S-W2838-T0-P7 | Under Cover Comp. 1 UR MS1 FOR DPBMC | 0 |
| 1 | 13S-W2838-R0-P0 | Under Cover Comp. 1 UR MBL2 FOR SMX | 1 |
| 0 | 13S-W2838-S0-P3 | Under Cover Comp. 1 UR FOR BWC1 | 0 |
| 0 | 2CX-283A1-30-00 | . . Graphic, Under Cover 1 FOR BWC1 | 0 |
| 0 | 2CX-283A3-20-00 | . . Graphic, Under Cover 3 FOR DPBMC | 0 |
| 0 | 5JJ-2153E-10-00 | . . Emblem, Yamaha UR FOR DPBMC | 0 |
| 1 | 2SG-2153B-20-00 | . . Emblem, Yamaha UR FOR SMX | 1 |
| 0 | 99247-00180-00 | . . Emblem, Yamaha UR FOR BWC1 | 0 |
| 1 | 90183-05076-00 | Nut, Spring | 1 |
| 2 | 90480-14003-00 | Grommet | 2 |
| 2 | 90387-06260-00 | Collar | 2 |
| 1 | 13S-2838G-00-00 | Seat 1 | 1 |
| 1 | 90520-50002-00 | Damper, Plate | 1 |
| 2 | 90111-06040-00 | Bolt, Hex. Socket Button | 2 |
| 1 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90202-05180-00 | Washer, Plate | 1 |
| 0 | 13S-W283U-N0-PC | Panel Assy 1 UR MS1 FOR DPBMC | 0 |
| 1 | 13S-W283U-P0-P9 | Panel Assy 1 UR FOR SMX | 1 |
| 0 | 13S-W283U-R0-P1 | Panel Assy 1 UR FOR BWC1 | 0 |
| 0 | 2CX-28391-50-00 | . . Graphic 1 UR FOR DPBMC | 0 |
| 1 | 2CX-28391-60-00 | . . Graphic 1 UR FOR SMX | 1 |
| 0 | 2CX-28391-70-00 | . . Graphic 1 UR FOR BWC1 | 0 |
| 1 | 2CX-2839B-10-00 | . . Emblem 3D UR FOR SMX | 1 |
| 0 | 2CX-28328-30-00 | . . Emblem UR FOR BWC1 | 0 |
| 1 | 2CX-28392-60-00 | . . Graphic 2 FOR SMX | 1 |
| 1 | 13S-28219-00-00 | Cover 1 | 1 |
| 1 | 90480-14003-00 | Grommet | 1 |
| 1 | 90387-06260-00 | Collar | 1 |
| 2 | 90183-05M02-00 | Nut, Spring | 2 |
| 1 | 13S-28415-00-00 | Damper 1 | 1 |
| 1 | 90520-50001-00 | Damper, Plate | 1 |
| 1 | 97707-50016-00 | Screw, Truss Head Tapping | 1 |
| 1 | 90269-07007-00 | Rivet | 1 |
| 1 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 |
| 1 | 13S-2137U-00-00 | Guide, Air 1 | 1 |
| 1 | 13S-2137K-00-00 | Guide, Air 3 | 1 |
| 2 | 97702-50016-00 | Screw, Tapping | 2 |
| 1 | 90480-01558-00 | Grommet | 1 |
| 1 | 13S-28217-00-00 | Damper 1 | 1 |
| 1 | 90269-06008-00 | Rivet | 1 |
| 1 | 90269-06081-00 | Rivet | 1 |
| 3 | 97707-50016-00 | Screw, Truss Head Tapping | 3 |
| 1 | 97702-50020-00 | Screw, Tapping | 1 |
| 0 | 13S-W2839-T0-P7 | Under Cover Comp. 2 UR MS1 FOR DPBMC | 0 |
| 1 | 13S-W2839-R0-P0 | Under Cover Comp. 2 UR MBL2 FOR SMX | 1 |
| 0 | 13S-W2839-S0-P3 | Under Cover Comp. 2 UR FOR BWC1 | 0 |
| 0 | 2CX-283A2-30-00 | . . Graphic, Under Cover 2 FOR BWC1 | 0 |
| 0 | 2CX-283A4-20-00 | . . Graphic, Under Cover 4 FOR DPBMC | 0 |
| 1 | 13S-2848K-00-00 | Seat 2 | 1 |
| 1 | 13S-2847R-00-00 | Damper 10 | 1 |
| 0 | 13S-W283V-N0-PC | Panel Assy 2 UR MS1 FOR DPBMC | 0 |
| 1 | 13S-W283V-P0-P9 | Panel Assy 2 UR FOR SMX | 1 |
| 0 | 13S-W283V-R0-P1 | Panel Assy 2 UR FOR BWC1 | 0 |
| 0 | 2CX-28392-50-00 | . . Graphic 2 UR FOR DPBMC | 0 |
| 1 | 2CX-28393-60-00 | . . Graphic 3 UR FOR SMX | 1 |
| 0 | 2CX-28392-70-00 | . . Graphic 2 UR FOR BWC1 | 0 |
| 1 | 2CX-28394-60-00 | . . Graphic 4 FOR SMX | 1 |
| 1 | 13S-28229-00-00 | Cover 2 | 1 |
| 2 | 97707-50016-00 | Screw, Truss Head Tapping | 2 |
| 1 | 90109-06207-00 | Bolt | 1 |
| 1 | 90202-10024-00 | Washer, Plate | 1 |
| 1 | 13S-2836G-00-00 | Bracket 4 | 1 |
| 1 | 90179-06059-00 | . .Nut | 1 |
| 1 | 90105-06020-00 | Bolt, Flange | 1 |
| 1 | 13S-2137V-00-00 | Guide, Air 2 | 1 |
| 1 | 13S-2137L-00-00 | Guide, Air 4 | 1 |
| 1 | 13S-2836L-00-00 | Panel, Inner 2 | 1 |
| 1 | 13S-2836M-00-00 | Panel, Inner 3 | 1 |
| 6 | 90269-06008-00 | Rivet | 6 |
