Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

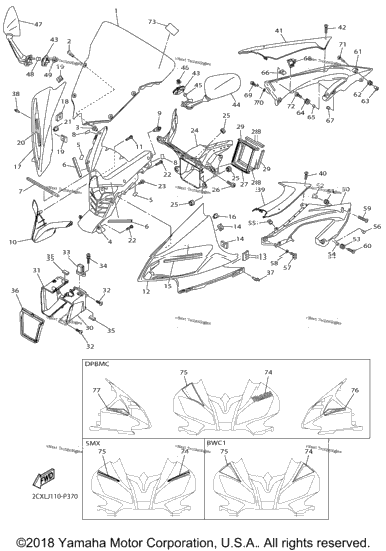

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 13S-28381-10-00 | Windshield | 1 |
| 4 | 90150-05023-00 | .Screw, Round Head | 4 |
| 4 | 90179-05523-00 | Nut | 4 |
| 1 | 13S-2836K-00-00 | Panel, Inner 1 | 1 |
| 2 | 3P6-28217-00-00 | Damper 1 | 2 |
| 2 | 13S-28227-00-00 | Damper 2 | 2 |
| 1 | 13S-28237-00-00 | Damper 3 | 1 |
| 2 | 13S-28371-00-00 | Damper | 2 |
| 2 | 90269-06046-00 | Rivet | 2 |
| 1 | 13S-28365-10-00 | Cover | 1 |
| 2 | 97702-40016-00 | Screw, Tapping | 2 |
| 0 | 13S-2835G-00-P0 | Body, Front Upper 1 UR FOR DPBMC | 0 |
| 1 | 13S-2835G-00-P3 | Body, Front Upper 1 UR FOR SMX | 1 |
| 0 | 13S-2835G-00-P1 | Body, Front Upper 1 UR FOR BWC1 | 0 |
| 1 | 90183-05076-00 | Nut, Spring | 1 |
| 2 | 90183-05042-00 | Nut, Spring | 2 |
| 1 | 2C0-28455-00-00 | Damper, 4 | 1 |
| 1 | 90480-01605-00 | Grommet | 1 |
| 0 | 13S-2835H-00-P0 | Body, Front Upper 2 UR FOR DPBMC | 0 |
| 1 | 13S-2835H-00-P3 | Body, Front Upper 2 UR FOR SMX | 1 |
| 0 | 13S-2835H-00-P1 | Body, Front Upper 2 UR FOR BWC1 | 0 |
| 4 | 97707-50016-00 | Screw, Truss Head Tapping | 4 |
| 2 | 97707-40012-00 | .Screw, Tapping | 2 |
| 1 | 13S-28356-00-00 | Stay 1 | 1 |
| 7 | 4XV-83513-00-00 | Damper | 7 |
| 4 | 90111-06116-00 | Bolt, Hex. Socket Button | 4 |
| 2C0-28342-01-00 | Joint | ||
| 2 | 2C0-28217-00-00 | Damper 1 | 2 |
| 2 | 2C0-28227-00-00 | Damper 2 | 2 |
| 13S-2838R-00-00 | Duct 2 | ||
| 1 | 13S-2838T-00-00 | Duct 3 | 1 |
| 4 | 97702-40016-00 | Screw, Tapping | 4 |
| 1 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 |
| 1 | 97702-50116-00 | Screw, Tapping | 1 |
| 4 | 51Y-21639-00-00 | Damper 2 | 4 |
| 1 | 2C0-28371-00-00 | Damper | 1 |
| 1 | 90269-06008-00 | Rivet | 1 |
| 1 | 13S-2837L-00-00 | Panel, Console 1 | 1 |
| 2 | 90111-05021-00 | Bolt, Hex. Socket Button | 2 |
| 1 | 13S-2837M-00-00 | Panel, Console 2 | 1 |
| 2 | 13S-26298-00-00 | Plate, Mirror Fitting 1 | 2 |
| 1 | 13S-26280-10-00 | Rear View Mirror Assy (Left) | 1 |
| 2 | 90387-064T3-00 | Collar | 2 |
| 2 | 90176-06008-00 | Nut, Crown | 2 |
| 1 | 13S-26290-10-00 | Rear View Mirror Assy (Right) | 1 |
| 0 | 13S-2117V-00-P0 | Cover 7 UR FOR DPBMC | 0 |
| 1 | 13S-2117V-00-P3 | Cover 7 UR FOR SMX | 1 |
| 0 | 13S-2117V-00-P1 | Cover 7 UR FOR BWC1 | 0 |
| 1 | 90480-12613-00 | Grommet | 1 |
| 1 | 90387-067K8-00 | Collar | 1 |
| 1 | 90480-14003-00 | Grommet | 1 |
| 1 | 90387-06260-00 | Collar | 1 |
| 1 | 90338-06134-00 | Plug | 1 |
| 1 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90202-05180-00 | Washer, Plate | 1 |
| 1 | 90111-06063-00 | Bolt, Hex. Socket Button | 1 |
| 1 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 |
| 1 | 13S-2117W-00-P0 | Cover 8 UR FOR DPBMC | 1 |
| 1 | 13S-2117W-00-P3 | Cover 8 UR FOR SMX | 1 |
| 1 | 13S-2117W-00-P1 | Cover 8 UR FOR BWC1 | 1 |
| 1 | 90464-20014-00 | Clamp | 1 |
| 1 | 4B5-2815K-00-00 | Label, Notice Windshield 1 | 1 |
| 0 | 99241-00100-00 | Emblem, Yamaha UR FOR DPBMC | 0 |
| 1 | 2CX-2832K-50-00 | Graphic, 12 UR FOR SMX | 1 |
| 0 | 2CX-2832K-60-00 | Graphic, 12 UR FOR BWC1 | 0 |
| 0 | 2CX-2832K-40-00 | Graphic, 12 UR FOR DPBMC | 0 |
| 1 | 2CX-2832L-50-00 | Graphic, 13 UR FOR SMX | 1 |
| 0 | 2CX-2832L-60-00 | Graphic, 13 UR FOR BWC1 | 0 |
| 0 | 13S-2832B-C0-00 | Graphic, 15 FOR DPBMC | 0 |
| 1 | 13S-2832C-C0-00 | Graphic, 16 FOR DPBMC | 1 |
