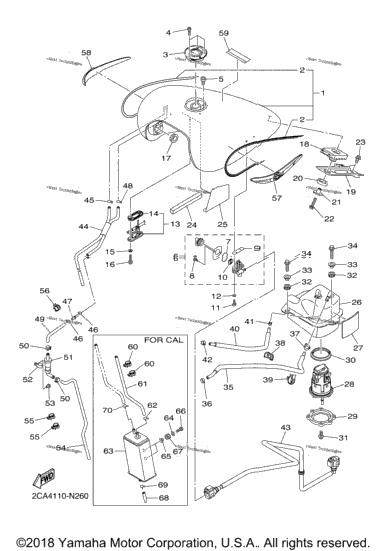

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 3D8-Y2410-00-X8 | Fuel Tank Comp DBNM8 | 1 |
| 1 | 5S6-24240-10-00 | . .Graphic Set | 1 |
| 1 | 3D8-24602-10-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 4JT-24500-20-00 | Fuel Cock Assy 1 | 1 |
| 1 | 3AJ-24534-10-00 | . .Seal, Cock | 1 |
| 2 | 98507-03008-00 | . .Screw, Pan Head | 2 |
| 1 | 4X8-24512-10-00 | . .Gasket | 1 |
| 1 | 3AC-24523-00-00 | . .Valve Packing | 1 |
| 2 | 90149-06108-00 | Screw | 2 |
| 2 | 90202-05193-00 | Washer, Plate | 2 |
| 1 | 3D8-85752-10-00 | Sender Unit Assy, Fuel Meter | 1 |
| 1 | 3D8-85753-00-00 | .Gasket, Sender Unit | 1 |
| 2 | 95812-06016-00 | Bolt, Flange | 2 |
| 2 | 2YK-24181-10-00 | Damper, Locating 1 | 2 |
| 1 | 1D7-24182-00-00 | Damper, Locating 2 | 1 |
| 1 | 3D8-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 1 | 4TR-24183-00-00 | Damper, Locating 3 | 1 |
| 1 | 90387-06177-00 | Collar | 1 |
| 1 | 95812-06030-00 | Bolt, Flange | 1 |
| 2 | 95812-08012-00 | Bolt, Flange | 2 |
| 1 | 3XV-28217-00-00 | Damper 1 | 1 |
| 1 | 3D8-2476V-00-00 | Protector, 2 | 1 |
| 1 | 3D8-244A0-00-00 | Pump Case Comp | 1 |
| 1 | 3D8-2414J-00-00 | Damper, Plate 2 | 1 |
| 1 | 3D8-13907-01-00 | Fuel Pump Comp | 1 |
| 1 | 3D8-24491-10-00 | Bracket, Fuel Pump | 1 |
| 1 | 19B-24486-01-00 | O-Ring | 1 |
| 6 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 |
| 3 | 3D8-24185-00-00 | Damper, Locating 5 | 3 |
| 3 | 90387-062U9-00 | Collar | 3 |
| 95812-06025-00 | Bolt, Flange | ||
| 1 | 3D8-24311-11-00 | Pipe, Fuel 1 | 1 |
| 1 | 90467-12004-00 | Clip | 1 |
| 1 | 90467-130A1-00 | Clip | 1 |
| 1 | 90464-19001-00 | Clamp | 1 |
| 1 | 90464-20191-00 | Clamp | 1 |
| 1 | 3D8-24312-11-00 | Pipe 2 | 1 |
| 1 | 90467-160A2-00 | Clip | 1 |
| 1 | 5PX-2411M-00-00 | Clip | 1 |
| 1 | 3D8-13971-00-00 | Pipe, Fuel 1 | 1 |
| 1 | 3D8-2318J-01-00 | Hose Assy | 1 |
| 1 | 90467-09103-00 | .Clip | 1 |
| 2 | 90467-09103-00 | .Clip | 2 |
| 1 | 4XY-14568-00-00 | Joint | 1 |
| 1 | 3D8-24324-00-00 | Pipe 13 | 1 |
| 2 | 90467-09001-00 | Clip | 2 |
| 1 | 5RB-24180-00-00 | Roll Over Valve Assy | 1 |
| 1 | 90461-15139-00 | Clamp | 1 |
| 1 | 90269-05005-00 | Rivet | 1 |
| 1 | 90445-10040-00 | Hose | 1 |
| 2 | 90464-20191-00 | Clamp | 2 |
| 1 | 90464-15192-00 | Clamp | 1 |
| 1 | 3D8-2416B-00-00 | Emblem | 1 |
| 1 | 3D8-2417B-00-00 | Emblem | 1 |
| 1 | 1TP-2118K-A1-00 | Label, Caution | 1 |
| 0 | 90464-25217-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 3D8-2486A-01-00 | Pipe 1 FOR CALIFORNIA | 0 |
| 0 | 90467-09103-00 | .Clip FOR CALIFORNIA | 0 |
| 0 | 5PX-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 90201-06023-00 | Washer, Plate FOR CALIFORNIA | 0 |
| 0 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 |
| 0 | 90111-06067-00 | Bolt, Hex. Socket Button FOR CALIFORNIA | 0 |
| 0 | 90480-13163-00 | Grommet FOR CALIFORNIA | 0 |
| 0 | 3D8-24325-00-00 | Pipe 14 FOR CALIFORNIA | 0 |
| 0 | 90467-10041-00 | Clip FOR CALIFORNIA | 0 |
