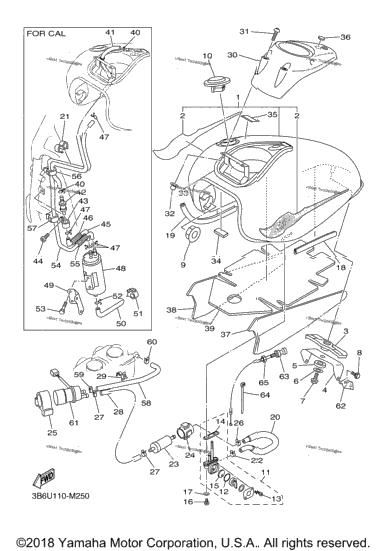

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 5SC-Y2410-U0-04 | Fuel Tank Comp S3 FOR U49 | 1 |
| 0 | 5SC-Y2410-T0-06 | Fuel Tank Comp S3 FOR CALIFORNIA | 0 |
| 1 | 3B6-24240-10-00 | . .Graphic Set | 1 |
| 1 | 4TR-24182-00-00 | Damper, Locating 2 | 1 |
| 1 | 4TR-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 1 | 4TR-24183-00-00 | Damper, Locating 3 | 1 |
| 1 | 90209-06011-00 | Washer | 1 |
| 1 | 92017-06012-00 | Bolt, Button Head | 1 |
| 2 | 95817-08016-00 | Bolt, Flange | 2 |
| 2 | 4H7-24181-00-00 | Damper, Locating 1 | 2 |
| 0 | 4NK-24602-20-00 | Cap Assy FOR CALIFORNIA | 0 |
| 1 | 5BN-24602-10-00 | Cap Assy FOR U49 | 1 |
| 1 | 21V-24500-20-00 | Fuel Cock Assy 1 | 1 |
| 1 | 3AJ-24534-10-00 | . .Seal, Cock | 1 |
| 2 | 98507-03008-00 | . .Screw, Pan Head | 2 |
| 1 | 4X8-24512-10-00 | . .Gasket | 1 |
| 1 | 3AC-24523-00-00 | . .Valve Packing | 1 |
| 2 | 90149-06011-00 | Screw | 2 |
| 2 | 90202-05193-00 | Washer, Plate | 2 |
| 1 | 1FK-2171L-00-00 | Mole, Side Cover 1 | 1 |
| 1 | 4BP-24188-00-00 | Mold, Fuel Tank | 1 |
| 1 | 4TR-24313-10-00 | Pipe 3 | 1 |
| 0 | 90464-09M31-00 | Clamp FOR CALIFORNIA | 0 |
| 1 | 90467-10038-00 | Clip | 1 |
| 1 | 1FK-24560-10-00 | Filter Assy | 1 |
| 1 | 1FK-24566-00-00 | Bracket, Filter | 1 |
| 1 | 4EB-24398-00-00 | Band 1 | 1 |
| 1 | 90467-11032-00 | Clip | 1 |
| 2 | 90467-12053-00 | Clip | 2 |
| 1 | 4TR-24311-10-00 | Pipe, Fuel 1 | 1 |
| 1 | 90464-15192-00 | Clamp | 1 |
| 1 | 4TR-2171A-00-00 | Cover, Top | 1 |
| 3 | 90149-05299-00 | Screw | 3 |
| 3 | 90179-05523-00 | .Nut | 3 |
| 2 | 4TR-2414G-00-00 | Seal | 2 |
| 1 | 3XV-21717-00-00 | Damper | 1 |
| 1 | 1TP-2118K-A1-00 | Label, Caution | 1 |
| 4TR-2413B-00-00 | Emblem | ||
| 1 | 5SC-2414H-00-00 | Damper, Plate 1 | 1 |
| 1 | 5SC-2414J-00-00 | Damper, Plate 2 | 1 |
| 1 | 5SC-2414K-00-00 | Damper, Plate 3 | 1 |
| 0 | 90467-10041-00 | Clip FOR CALIFORNIA | 0 |
| 0 | 5BN-24312-10-00 | Pipe 2 FOR CALIFORNIA | 0 |
| 0 | 5PX-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 |
| 0 | 90461-15139-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 90154-05064-00 | Screw, Binding FOR CALIFORNIA | 0 |
| 0 | 5BN-24314-10-00 | Pipe 4 FOR CALIFORNIA | 0 |
| 0 | 5BN-24327-00-00 | Protector, Pipe FOR CALIFORNIA | 0 |
| 0 | 2JU-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 5BN-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 5BN-24315-10-00 | Pipe 5 FOR CALIFORNIA | 0 |
| 0 | 90464-15192-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 95807-06010-00 | Bolt, Flange FOR CALIFORNIA | 0 |
| 0 | 5BN-24313-10-00 | Pipe 3 FOR CALIFORNIA | 0 |
| 0 | 90464-20191-00 | Clamp FOR CALIFORNIA | 0 |
| 1 | 4TR-14294-10-00 | Hose | 1 |
| 1 | 90467-12053-00 | Clip | 1 |
| 1 | 90467-12124-00 | Clip | 1 |
| 1 | 5KS-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 4TR-2637G-00-00 | Holder, Wire | 1 |
| 1 | 4TR-26331-00-00 | Cable, Starter 1 | 1 |
| 1 | 1UA-82591-00-00 | Band | 1 |
| 1 | 1VJ-26333-00-00 | Nut | 1 |
