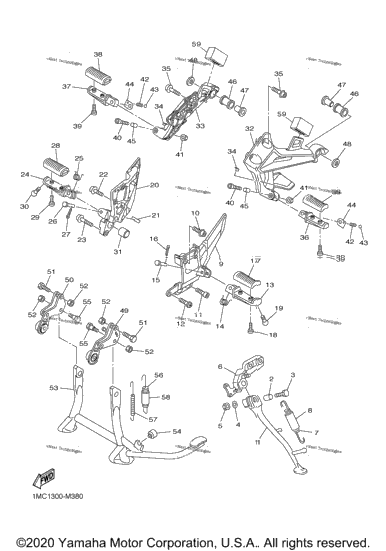

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 5JW-27311-00-00 | Stand, Side | 1 |
| 1 | 5JW-27311-00-00 | Stand, Side | 1 |
| 1 | 90387-10007-00 | Collar | 1 |
| 1 | 90387-10007-00 | Collar | 1 |
| 1 | 90101-10025-00 | Bolt | 1 |
| 1 | 90101-10025-00 | Bolt | 1 |
| 1 | 92902-10200-00 | Washer | 1 |
| 1 | 92902-10200-00 | Washer | 1 |
| 1 | 95602-10100-00 | Nut, U | 1 |
| 1 | 95602-10100-00 | Nut, U | 1 |
| 1 | 5JW-27321-00-00 | Bracket, Side Stand | 1 |
| 1 | 5JW-27321-00-00 | Bracket, Side Stand | 1 |
| 1 | 90506-20008-00 | Spring, Tension | 1 |
| 1 | 90506-20008-00 | Spring, Tension | 1 |
| 1 | 90445-197J2-00 | Hose (L60) | 1 |
| 1 | 90445-197J2-00 | Hose (L60) | 1 |
| 1 | 1MC-27442-00-00 | Bracket 2 | 1 |
| 1 | 1MC-27442-00-00 | Bracket 2 | 1 |
| 2 | 90110-08087-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90110-08087-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90109-10031-00 | Bolt | 2 |
| 2 | 90109-10031-00 | Bolt | 2 |
| 1 | 90149-10012-00 | Screw | 1 |
| 1 | 90149-10012-00 | Screw | 1 |
| 1 | 4BH-27451-01-00 | Footrest 3 | 1 |
| 1 | 4BH-27451-01-00 | Footrest 3 | 1 |
| 1 | 90508-183B9-00 | Spring, Torsion | 1 |
| 1 | 90508-183B9-00 | Spring, Torsion | 1 |
| 1 | 91701-08040-00 | Pin | 1 |
| 1 | 91701-08040-00 | Pin | 1 |
| 1 | 91401-25015-00 | Pin, Cotter | 1 |
| 1 | 91401-25015-00 | Pin, Cotter | 1 |
| 1 | 4BP-27413-00-00 | Cover, Footrest | 1 |
| 1 | 4BP-27413-00-00 | Cover, Footrest | 1 |
| 2 | 90157-05079-00 | Screw, Pan Head | 2 |
| 2 | 90157-05079-00 | Screw, Pan Head | 2 |
| 1 | 90109-08203-00 | Bolt | 1 |
| 1 | 90109-08203-00 | Bolt | 1 |
| 1 | 1MC-27443-00-00 | Bracket 3 | 1 |
| 1 | 1MC-27443-00-00 | Bracket 3 | 1 |
| 1 | 3TU-2178A-00-00 | Label | 1 |
| 1 | 3TU-2178A-00-00 | Label | 1 |
| 1 | 90110-08056-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90110-08056-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90110-08107-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90110-08107-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 4BH-27461-01-00 | Footrest 4 | 1 |
| 1 | 4BH-27461-01-00 | Footrest 4 | 1 |
| 1 | 90508-184B0-00 | Spring, Torsion | 1 |
| 1 | 90508-184B0-00 | Spring, Torsion | 1 |
| 1 | 90380-20213-00 | Bush, Solid | 1 |
| 1 | 90380-20213-00 | Bush, Solid | 1 |
| 1 | 1MC-2741L-00-00 | Bracket 4 | 1 |
| 1 | 1MC-2741L-00-00 | Bracket 4 | 1 |
| 1 | 1MC-2742L-00-00 | Bracket 5 | 1 |
| 1 | 1MC-2742L-00-00 | Bracket 5 | 1 |
| 2 | 5JW-23844-00-00 | Seal | 2 |
| 2 | 5JW-23844-00-00 | Seal | 2 |
| 4 | 90110-08056-00 | Bolt, Hexagon Socket Head | 4 |
| 4 | 90110-08056-00 | Bolt, Hexagon Socket Head | 4 |
| 1 | 5LV-27431-01-00 | Footrest, Rear 1 | 1 |
| 1 | 5LV-27431-01-00 | Footrest, Rear 1 | 1 |
| 1 | 5LV-27441-01-00 | Footrest, Rear 2 | 1 |
| 1 | 5LV-27441-01-00 | Footrest, Rear 2 | 1 |
| 2 | 4BP-27413-00-00 | Cover, Footrest | 2 |
| 2 | 4BP-27413-00-00 | Cover, Footrest | 2 |
| 4 | 90157-05079-00 | Screw, Pan Head | 4 |
| 4 | 90157-05079-00 | Screw, Pan Head | 4 |
| 2 | 91312-06040-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 91312-06040-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 95602-06200-00 | Nut, Self-Locking | 2 |
| 2 | 95602-06200-00 | Nut, Self-Locking | 2 |
| 2 | 90501-15001-00 | Spring, Compression | 2 |
| 2 | 90501-15001-00 | Spring, Compression | 2 |
| 2 | 93501-04011-00 | Ball | 2 |
| 2 | 93501-04011-00 | Ball | 2 |
| 2 | 5JJ-27437-01-00 | Washer, Special | 2 |
| 2 | 5JJ-27437-01-00 | Washer, Special | 2 |
| 2 | 90387-06014-00 | Collar | 2 |
| 2 | 90387-06014-00 | Collar | 2 |
| 2 | 36Y-27424-01-00 | Damper, Footrest 2 | 2 |
| 2 | 36Y-27424-01-00 | Damper, Footrest 2 | 2 |
| 2 | 90387-10048-00 | Collar | 2 |
| 2 | 90201-10669-00 | Washer, Plate | 2 |
| 1 | 1MC-27151-00-00 | Bracket, Main Stand | 1 |
| 1 | 1MC-27152-00-00 | Bracket, Main Stand 2 | 1 |
| 4 | 90101-10004-00 | Bolt | 4 |
| 6 | 95602-10200-00 | Nut, S/L Flange | 6 |
| 1 | 5P5-27111-10-00 | Stand, Main | 1 |
| 1 | 116-27114-00-00 | Stopper, Main Stand | 1 |
| 2 | 90109-10029-00 | Bolt | 2 |
| 1 | 90506-40001-00 | Spring, Tension | 1 |
| 1 | 90506-23001-00 | Spring, Tension | 1 |
| 1 | 90445-170K9-00 | Hose (L60) | 1 |
| 5VS-W9753-00-00 | Bracket Rubber Set, Side Case SET OF 2 | ||
| 2 | 90387-10048-00 | Collar | 2 |
| 2 | 90201-10669-00 | Washer, Plate | 2 |
| 1 | 1MC-27151-00-00 | Bracket, Main Stand | 1 |
| 1 | 1MC-27152-00-00 | Bracket, Main Stand 2 | 1 |
| 4 | 90101-10004-00 | Bolt | 4 |
| 6 | 95602-10200-00 | Nut, S/L Flange | 6 |
| 1 | 5P5-27111-10-00 | Stand, Main | 1 |
| 1 | 116-27114-00-00 | Stopper, Main Stand | 1 |
| 2 | 90109-10029-00 | Bolt | 2 |
| 1 | 90506-40001-00 | Spring, Tension | 1 |
| 1 | 90506-23001-00 | Spring, Tension | 1 |
| 1 | 90445-170K9-00 | Hose (L60) | 1 |
| 5VS-W9753-00-00 | Bracket Rubber Set, Side Case SET OF 2 |
