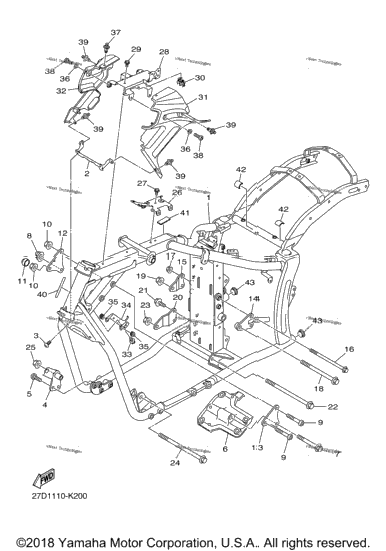

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 27D-21110-00-00 | Frame Comp | 1 |
| 1 | 27D-21110-00-00 | Frame Comp | 1 |
| 1 | 27D-2119M-00-00 | Bracket, 10 | 1 |
| 1 | 27D-2119M-00-00 | Bracket, 10 | 1 |
| 2 | 92017-06014-00 | Bolt, Button Head | 2 |
| 2 | 92017-06014-00 | Bolt, Button Head | 2 |
| 1 | 27D-21387-00-00 | Stay, Engine 7 | 1 |
| 1 | 27D-21387-00-00 | Stay, Engine 7 | 1 |
| 2 | 90111-10047-00 | Bolt, Hex. Socket Button | 2 |
| 2 | 90111-10047-00 | Bolt, Hex. Socket Button | 2 |
| 1 | 27D-21317-00-00 | Stay, Engine 3 | 1 |
| 1 | 27D-21317-00-00 | Stay, Engine 3 | 1 |
| 1 | 90105-12083-00 | Bolt, Flange | 1 |
| 1 | 90105-12083-00 | Bolt, Flange | 1 |
| 1 | 90176-12003-00 | Nut, Crown | 1 |
| 1 | 90176-12003-00 | Nut, Crown | 1 |
| 2 | 90111-10052-00 | Bolt, Hex. Socket Button | 2 |
| 2 | 90111-10052-00 | Bolt, Hex. Socket Button | 2 |
| 2 | 90185-10011-00 | Nut, Self-Locking | 2 |
| 2 | 90185-10011-00 | Nut, Self-Locking | 2 |
| 5YU-2143A-00-00 | Cap | ||
| 5YU-2143A-00-00 | Cap | ||
| 1 | 27D-2114V-00-00 | Bracket 11 | 1 |
| 1 | 27D-2114V-00-00 | Bracket 11 | 1 |
| 1 | 27D-2116B-00-00 | Bracket | 1 |
| 1 | 27D-2116B-00-00 | Bracket | 1 |
| 1 | 27D-21318-00-00 | Stay, Engine 4 | 1 |
| 1 | 27D-21318-00-00 | Stay, Engine 4 | 1 |
| 1 | 27D-21314-00-00 | Stay, Engine 5 | 1 |
| 1 | 27D-21314-00-00 | Stay, Engine 5 | 1 |
| 2 | 90105-10391-00 | Bolt, Flange | 2 |
| 2 | 90105-10391-00 | Bolt, Flange | 2 |
| 2 | 95602-10200-00 | Nut, S/L Flange | 2 |
| 2 | 95602-10200-00 | Nut, S/L Flange | 2 |
| 1 | 90105-12080-00 | Bolt, Flange | 1 |
| 1 | 90105-12080-00 | Bolt, Flange | 1 |
| 1 | 90185-12002-00 | Nut, Self-Locking | 1 |
| 1 | 90185-12002-00 | Nut, Self-Locking | 1 |
| 1 | 3D8-21316-00-00 | Stay, Engine 2 | 1 |
| 1 | 3D8-21316-00-00 | Stay, Engine 2 | 1 |
| 2 | 90105-10195-00 | Bolt, Flange | 2 |
| 1 | 90105-12044-00 | Bolt, Flange | 1 |
| 1 | 90105-12045-00 | Bolt, Flange | 1 |
| 1 | 27D-21359-00-00 | Bracket, Coil | 1 |
| 1 | 95022-06012-00 | .Bolt, Flange | 1 |
| 1 | 27D-21415-00-00 | Bracket, Front Upper 1 | 1 |
| 2 | 95022-06012-00 | .Bolt, Flange | 2 |
| 1 | 90464-11007-00 | Clamp | 1 |
| 1 | 27D-2171E-00-00 | Cover, Side 5 | 1 |
| 1 | 27D-2171X-00-00 | Cover, Side 6 | 1 |
| 1 | 95027-06012-00 | Bolt, Flange | 1 |
| 1 | 27D-21322-00-00 | Stay, Side Cover 2 | 1 |
| 2 | 90480-01022-00 | Grommet | 2 |
| 2 | 90560-06244-00 | .Spacer | 2 |
| 1 | 90269-07007-00 | Rivet | 1 |
| 2 | 90149-06298-00 | Screw | 2 |
| 4 | 90269-05079-00 | Rivet | 4 |
| 3D8-2117G-00-00 | Protector | ||
| 1 | 5H0-8235Y-M0-00 | Damper | 1 |
| 2 | 3MA-27491-00-00 | Protector | 2 |
| 2 | 90338-27007-00 | Plug | 2 |
| 2 | 90105-10195-00 | Bolt, Flange | 2 |
| 1 | 90105-12044-00 | Bolt, Flange | 1 |
| 1 | 90105-12045-00 | Bolt, Flange | 1 |
| 1 | 27D-21359-00-00 | Bracket, Coil | 1 |
| 1 | 95022-06012-00 | .Bolt, Flange | 1 |
| 1 | 27D-21415-00-00 | Bracket, Front Upper 1 | 1 |
| 2 | 95022-06012-00 | .Bolt, Flange | 2 |
| 1 | 90464-11007-00 | Clamp | 1 |
| 1 | 27D-2171E-00-00 | Cover, Side 5 | 1 |
| 1 | 27D-2171X-00-00 | Cover, Side 6 | 1 |
| 1 | 95027-06012-00 | Bolt, Flange | 1 |
| 1 | 27D-21322-00-00 | Stay, Side Cover 2 | 1 |
| 2 | 90480-01022-00 | Grommet | 2 |
| 2 | 90560-06244-00 | .Spacer | 2 |
| 1 | 90269-07007-00 | Rivet | 1 |
| 2 | 90149-06298-00 | Screw | 2 |
| 4 | 90269-05079-00 | Rivet | 4 |
| 3D8-2117G-00-00 | Protector | ||
| 1 | 5H0-8235Y-M0-00 | Damper | 1 |
| 2 | 3MA-27491-00-00 | Protector | 2 |
| 2 | 90338-27007-00 | Plug | 2 |
