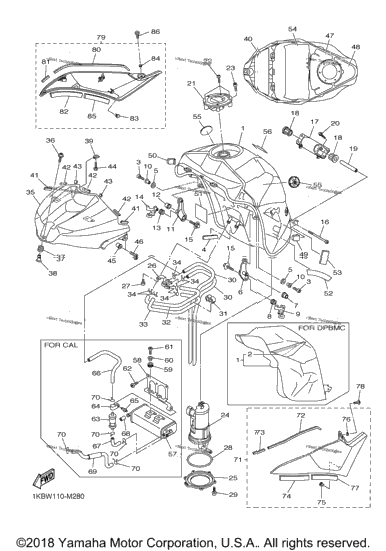

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | 14B-Y2410-00-06 | Fuel Tank Comp UR FOR DPBMC | 0 |
| 14B-YK241-00-P5 | Fuel Tank Comp UR FOR VRC1 | ||
| 14B-24110-00-P4 | Fuel Tank Comp UR FOR MNM3 | ||
| 0 | 1KB-24240-20-00 | . . Graphic Set FOR DPBMC | 0 |
| 2 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 |
| 1 | 4BP-24188-00-00 | Mold, Fuel Tank | 1 |
| 2 | 5VY-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 14B-24191-10-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 5VY-24181-00-00 | Damper, Locating 1 | 1 |
| 1 | 90480-10542-00 | Grommet | 1 |
| 1 | 14B-21161-00-00 | Holder, Cable | 1 |
| 2 | 90387-06143-00 | Collar | 2 |
| 1 | 14B-24192-10-00 | Bracket, Fuel Tank 2 | 1 |
| 1 | 14B-21162-00-00 | Holder, Clutch Cable | 1 |
| 2 | 90119-06262-00 | Bolt, With Washer | 2 |
| 1 | 90110-06378-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 14B-2413Y-10-00 | Bracket, Tank Fitting | 1 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 4 | 90110-06163-00 | Bolt, Hexagon Socket Head | 4 |
| 1 | 39P-24602-00-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 14B-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 13S-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 14B-24135-00-00 | Clamp 1 | 1 |
| 1 | 90110-05030-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 19B-24486-01-00 | O-Ring | 1 |
| 6 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 |
| 0 | 14B-24312-00-00 | Pipe 2 FOR CALIFORNIA | 0 |
| 2 | 14B-24312-00-00 | Pipe 2 | 2 |
| 1 | 90464-09M31-00 | Clamp | 1 |
| 1 | 14B-24313-00-00 | Pipe 3 | 1 |
| 0 | 14B-24313-10-00 | Pipe 3 FOR CALIFORNIA | 0 |
| 14B-24314-00-00 | Pipe 4 | ||
| 6 | 90467-09006-00 | Clip | 6 |
| 1 | 14B-2171A-00-P0 | Cover, Top UR MBL2 FOR MNM3 | 1 |
| 0 | 14B-2171A-00-P2 | Cover, Top UR FOR DPBMC | 0 |
| 0 | 14B-2171A-00-P5 | Cover, Top UR SMX FOR VRC1 | 0 |
| 1 | 90110-06233-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90480-12023-00 | .Grommet | 1 |
| 1 | 90387-06203-00 | .Collar | 1 |
| 2 | 90183-05074-00 | Nut, Spring | 2 |
| 1 | 14B-2414H-00-00 | Damper, Plate 1 | 1 |
| 2 | 4C8-24182-00-00 | Damper, Locating 2 | 2 |
| 3 | 3XV-21778-00-00 | Damper, Locating 1 | 3 |
| 2 | 14B-24181-00-00 | Damper, Locating 1 | 2 |
| 2 | 90119-05015-00 | Bolt, With Washer | 2 |
| 2 | 90179-05523-00 | .Nut | 2 |
| 2 | 98902-05014-00 | Screw, Bind | 2 |
| 1 | 14B-2414N-20-00 | Damper, Plate 4 | 1 |
| 1 | 14B-2414P-20-00 | Damper, Plate 5 | 1 |
| 1 | 5PW-2411J-01-00 | Damper, Side Cover | 1 |
| 1 | 5VU-21747-00-00 | Damper | 1 |
| 2 | 14B-2414K-10-00 | Damper, Plate 3 | 2 |
| 2 | 14B-2414G-00-00 | Seal | 2 |
| 1 | 90520-08002-00 | Damper, Plate | 1 |
| 5SL-2413B-00-00 | Emblem | ||
| 1 | 4C8-2118K-00-00 | Label, Caution | 1 |
| 0 | 14B-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 14B-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 90480-13018-00 | Grommet FOR CALIFORNIA | 0 |
| 0 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 |
| 0 | 92012-06016-00 | Bolt, Button Head FOR CALIFORNIA | 0 |
| 0 | 90111-06140-00 | Bolt, Hex. Socket Button FOR CALIFORNIA | 0 |
| 0 | 5PX-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 |
| 0 | 90461-15139-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 90269-05001-00 | Rivet FOR CALIFORNIA | 0 |
| 0 | 14B-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 |
| 0 | 14B-24316-00-00 | Pipe 6 FOR CALIFORNIA | 0 |
| 0 | 90445-11418-00 | Hose (L18) FOR CALIFORNIA | 0 |
| 0 | 14B-1443J-00-00 | Pipe FOR CALIFORNIA | 0 |
| 0 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 |
| 1 | 14B-24106-10-00 | Tank Side Cover Assy 1 | 1 |
| 1 | 2C0-2414H-00-00 | . Damper, Plate 1 | 1 |
| 1 | 14B-2414J-00-00 | . .Damper, Plate 2 | 1 |
| 1 | 2C0-2414J-00-00 | . Damper, Plate 2 | 1 |
| 1 | 90338-06018-00 | . Plug | 1 |
| 1 | 90560-05N33-00 | . .Spacer | 1 |
| 1 | 90520-10005-00 | . .Damper, Plate | 1 |
| 1 | 98902-05008-00 | Screw, Bind | 1 |
| 1 | 14B-24108-10-00 | Tank Side Cover Assy 2 | 1 |
