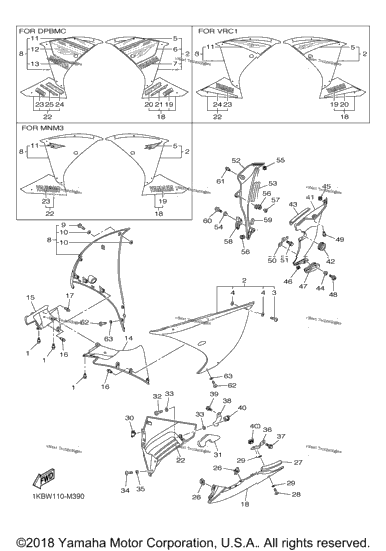

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 90269-06008-00 | Rivet | 3 |
| 0 | 14B-W283U-1B-P3 | Panel Assy 1 UR SMX FOR DPBMC | 0 |
| 0 | 14B-W283U-1C-P3 | Panel Assy 1 UR SMX FOR VRC1 | 0 |
| 1 | 14B-W283U-D0-P0 | Panel Assy 1 UR FOR MNM3 | 1 |
| 3 | 14B-28386-00-00 | . Head | 3 |
| 6 | 2TK-21757-00-00 | . Washer, Special 1 | 6 |
| 0 | 1KB-28391-70-00 | . . Graphic 1 UR FOR DPBMC | 0 |
| 1 | 1KB-2839B-00-00 | . . Emblem 3D UR FOR MNM3 | 1 |
| 0 | 1KB-28391-80-00 | . . Graphic 1 UR FOR VRC1 | 0 |
| 1KB-28393-40-00 | . . Graphic 3 FOR DPBMC | ||
| 0 | 1KB-2153B-10-00 | . . .Emblem, Yamaha FOR DPBMC | 0 |
| 0 | 14B-W283V-1C-P3 | Panel Assy 2 UR SMX FOR VRC1 | 0 |
| 0 | 14B-W283V-1B-P3 | Panel Assy 2 UR SMX FOR DPBMC | 0 |
| 1 | 14B-W283V-D0-P0 | Panel Assy 2 UR FOR MNM3 | 1 |
| 0 | 1KB-28392-70-00 | . . Graphic 2 UR FOR DPBMC | 0 |
| 0 | 1KB-28392-80-00 | . . Graphic 2 UR FOR VRC1 | 0 |
| 0 | 1KB-28394-40-00 | . . Graphic 4 FOR DPBMC | 0 |
| 1 | 14B-2836K-00-00 | Panel, Inner 1 | 1 |
| 1 | 14B-2836L-00-00 | Panel, Inner 2 | 1 |
| 6 | 90269-06008-00 | Rivet | 6 |
| 1 | 90269-06008-00 | Rivet | 1 |
| 0 | 14B-W2838-X0-P2 | Under Cover Comp. 1 UR BWC1 FOR DPBMC | 0 |
| 0 | 14B-W2838-Y0-P4 | Under Cover Comp. 1 UR SMX FOR VRC1 | 0 |
| 1 | 14B-W2838-V0-P0 | Under Cover Comp. 1 UR FOR MNM3 | 1 |
| 1 | 99244-00200-00 | . . Emblem, Yamaha UR FOR MNM3 | 1 |
| 0 | 99247-00240-00 | . . Emblem, Yamaha UR FOR VRC1 | 0 |
| 0 | 1KB-28328-20-00 | . . Emblem FOR DPBMC | 0 |
| 0 | 1KB-2834C-10-00 | . . Emblem, 1 UR FOR DPBMC | 0 |
| 0 | 1KB-283A1-20-00 | . . Graphic, Under Cover 1 UR FOR VRC1 | 0 |
| 0 | 1KB-2835C-10-00 | . . Emblem 2 FOR DPBMC | 0 |
| 0 | 14B-W2839-X0-P2 | Under Cover Comp. 2 UR BWC1 FOR DPBMC | 0 |
| 0 | 14B-W2839-Y0-P4 | Under Cover Comp. 2 UR SMX FOR VRC1 | 0 |
| 1 | 14B-W2839-V0-P0 | Under Cover Comp. 2 UR FOR MNM3 | 1 |
| 0 | 1KB-283A2-20-00 | . . Graphic, Under Cover 2 UR FOR VRC1 | 0 |
| 4 | 5PW-2177L-00-00 | Plate, Spring | 4 |
| 1 | 90520-30004-00 | Damper, Plate | 1 |
| 1 | 14B-28386-00-00 | Head | 1 |
| 2 | 2TK-21757-00-00 | Washer, Special 1 | 2 |
| 2 | 5PW-2177L-00-00 | Plate, Spring | 2 |
| 1 | 14B-28371-10-00 | Damper | 1 |
| 2 | 14B-28386-00-00 | Head | 2 |
| 2 | 90202-06005-00 | Washer, Plate | 2 |
| 1 | 14B-2836A-00-00 | Bracket 1 | 1 |
| 1 | 95802-06016-00 | Bolt, Flange | 1 |
| 1 | 14B-2836E-00-00 | Bracket 2 | 1 |
| 1 | 90105-06174-00 | Bolt, Flange | 1 |
| 1 | 14B-2836M-10-P0 | Panel, Inner 3 UR MBL2 FOR MNM3 | 1 |
| 0 | 14B-2836M-10-P1 | Panel, Inner 3 UR BWC1 FOR DPBMC | 0 |
| 0 | 14B-2836M-10-P7 | Panel, Inner 3 UR FOR VRC1 | 0 |
| 1 | 14B-2836T-00-00 | Damper, Locating 1 | 1 |
| 1 | 90520-05011-00 | Damper, Plate | 1 |
| 1 | 90560-08251-00 | Spacer | 1 |
| 1 | 90480-08006-00 | Grommet | 1 |
| 1 | 90480-12596-00 | Grommet | 1 |
| 1 | 14B-283C1-00-00 | Stopper, Rubber 1 | 1 |
| 1 | 90110-06163-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90269-07077-00 | Rivet | 1 |
| 1 | 14B-28321-00-00 | Stay 1 | 1 |
| 95802-06012-00 | Bolt, Flange | ||
| 1 | 14B-2836N-10-P0 | Panel, Inner 4 UR MBL2 FOR MNM3 | 1 |
| 0 | 14B-2836N-10-P1 | Panel, Inner 4 UR BWC1 FOR DPBMC | 0 |
| 0 | 14B-2836N-10-P7 | Panel, Inner 4 UR FOR VRC1 | 0 |
| 1 | 3NU-21732-00-00 | Seal 1 | 1 |
| 2 | 90480-12596-00 | Grommet | 2 |
| 1 | 90387-065J6-00 | .Collar | 1 |
| 1 | 14B-283C2-00-00 | Stopper, Rubber 2 | 1 |
| 1 | 4B5-2847F-00-00 | Seal 5 | 1 |
| 2 | 90110-06163-00 | Bolt, Hexagon Socket Head | 2 |
| 4 | 14B-28386-00-00 | Head | 4 |
| 4 | 90202-06005-00 | Washer, Plate | 4 |
