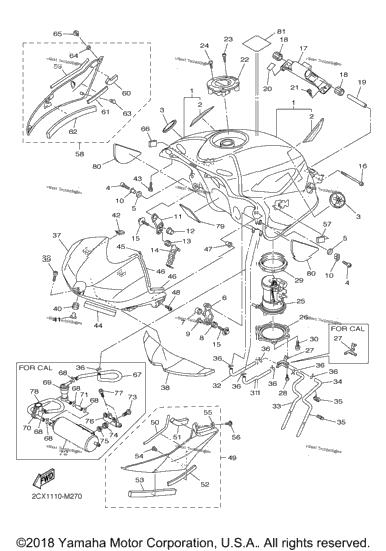

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | 13S-Y2410-00-07 | Fuel Tank Comp UR FOR DPBMC | 0 |
| 0 | 13S-YK241-00-P6 | Fuel Tank Comp UR FOR VRC1 | 0 |
| 1 | 13S-24110-00-P8 | Fuel Tank Comp UR FOR MNM3 | 1 |
| 0 | 1JS-24240-00-00 | . . Graphic Set FOR DPBMC | 0 |
| 5SL-2413B-00-00 | Emblem | ||
| 2 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 5VY-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 5VY-24191-10-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 5VY-24181-00-00 | Damper, Locating 1 | 1 |
| 1 | 90480-10542-00 | Grommet | 1 |
| 1 | 90387-066Y6-00 | Collar | 1 |
| 2 | 90387-06143-00 | Collar | 2 |
| 1 | 5VY-24192-10-00 | Bracket, Fuel Tank 2 | 1 |
| 1 | 2C0-21339-00-00 | Guide, Wire | 1 |
| 2 | 90119-06262-00 | Bolt, With Washer | 2 |
| 1 | 91312-06090-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 2C0-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 2 | 2C0-21566-00-00 | Tape, 1 | 2 |
| 4 | 90111-06071-00 | Bolt, Hex. Socket Button | 4 |
| 1 | 39P-24602-00-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 14B-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 13S-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 13S-24135-00-00 | Clamp 1 FOR U49 | 1 |
| 13S-24135-10-00 | Clamp 1 FOR CALIFORNIA | ||
| 1 | 90154-05012-00 | Screw, Binding | 1 |
| 1 | 19B-24486-01-00 | O-Ring | 1 |
| 6 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 13S-24315-00-00 | Pipe 5 | 1 |
| 1 | 13S-24316-00-00 | Pipe 6 | 1 |
| 1 | 13S-24317-00-00 | Pipe 7 FOR U49 | 1 |
| 0 | 13S-24317-10-00 | Pipe 7 FOR CALIFORNIA | 0 |
| 1 | 13S-24313-00-00 | Pipe 3 | 1 |
| 2 | 90464-09M31-00 | Clamp | 2 |
| 0 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 |
| 6 | 90467-09006-00 | Clip FOR U49 | 6 |
| 0 | 13S-2171A-00-P0 | Cover, Top UR FOR DPBMC | 0 |
| 1 | 13S-2171A-00-P2 | Cover, Top UR MBL2 FOR MNM3 | 1 |
| 0 | 13S-2171A-00-P5 | Cover, Top UR FOR VRC1 | 0 |
| 1 | 13S-24854-00-00 | Damper | 1 |
| 1 | 90111-06030-00 | Bolt, Hex. Socket Button | 1 |
| 1 | 90480-12314-00 | Grommet | 1 |
| 1 | 90387-06222-00 | Collar | 1 |
| 2 | 90183-05074-00 | Nut, Spring | 2 |
| 2 | 90105-05014-00 | Bolt, Flange | 2 |
| 2 | 2C0-2414J-00-00 | Damper, Plate 2 | 2 |
| 2 | 13S-24181-00-00 | Damper, Locating 1 | 2 |
| 4 | 2C0-2414N-00-00 | .Damper, Plate 4 | 4 |
| 2 | 90179-05523-00 | Nut | 2 |
| 2 | 98902-05014-00 | Screw, Bind | 2 |
| 1 | 13S-24106-00-00 | Tank Side Cover Assy 1 | 1 |
| 1 | 4C8-2414H-00-00 | . .Damper, Plate 1 | 1 |
| 1 | 2C0-2414P-00-00 | . .Damper, Plate 5 | 1 |
| 1 | 4C8-2414J-00-00 | . Damper, Plate 2 | 1 |
| 1 | 2C0-24184-00-00 | . .Damper, Locating 4 | 1 |
| 1 | 90338-06018-00 | . Plug | 1 |
| 1 | 90387-05035-00 | . Collar | 1 |
| 1 | 98902-05008-00 | Screw, Bind | 1 |
| 1 | 5PW-2411J-01-00 | Damper, Side Cover | 1 |
| 1 | 13S-24108-00-00 | Tank Side Cover Assy 2 | 1 |
| 0 | 13S-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 |
| 0 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 |
| 2C0-24398-00-00 | Band 1 FOR CALIFORNIA | ||
| 0 | 90445-11065-00 | Hose (L30) FOR CALIFORNIA | 0 |
| 0 | 5EL-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 90111-06091-00 | Bolt, Hex. Socket Button FOR CALIFORNIA | 0 |
| 0 | 90480-13018-00 | Grommet FOR CALIFORNIA | 0 |
| 0 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 |
| 0 | 2C0-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 90110-06175-00 | Bolt, Hexagon Socket Head FOR CALIFORNIA | 0 |
| 0 | 2C0-1443J-01-00 | Pipe FOR CALIFORNIA | 0 |
| 1 | 13S-24145-10-00 | Damper, Side Cover | 1 |
| 2 | 2C0-24145-10-00 | Damper, Side Cover | 2 |
| 1 | 4C8-2118K-00-00 | Label, Caution | 1 |
