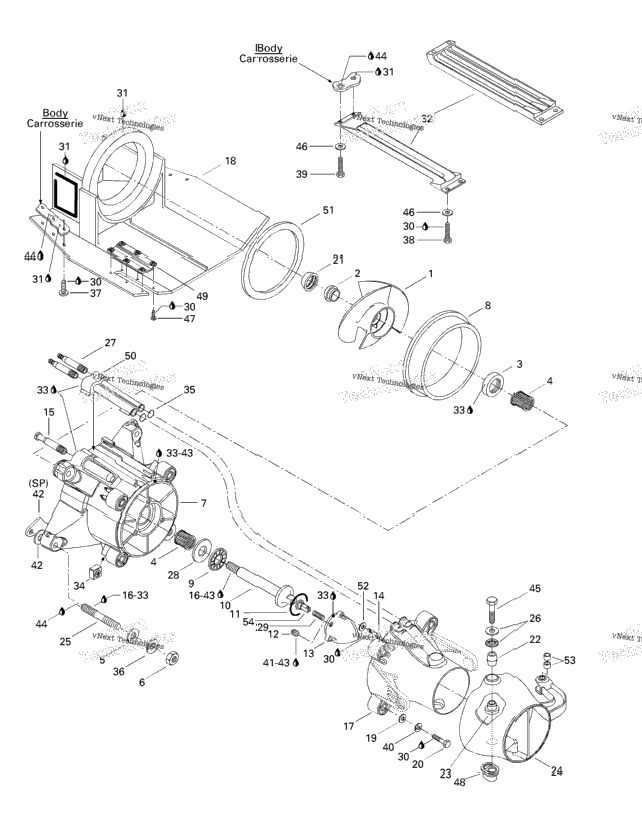

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 271000046 | Stainless Steel Impeler Ass'y Includes 1 - 2. SP 5879. | ||
| 271000069 | Impeller Boot SP 5879. | ||
| 271000668 | Aluminum Impeler Ass'y Includes 1 - 2. SP 5879. | ||
| 1 | 271000660 | Stainless Steel Impeller Ass'y SPX 5661/5834. | 1 |
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 4 | 213200003 | Washer 10 mm | 4 |
| 4 | 212100007 | Elastic Stop Nut M10 | 4 |
| 295500429 | IMPELLER HOUSING ASS'Y SP 5879. | ||
| 295500521 | IMPELLER HOUSING ASSEMBLY SPX 5661/5834. | ||
| 1 | 271000290 | Wear Ring | 1 |
| 1 | 293350019 | BEARING THRUST | 1 |
| 1 | 271000291 | Impeller Shaft | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 1 | 271000670 | IMPELLER COVER | 1 |
| 3 | 210000009 | Hex. Screw M5 x 20 | 3 |
| 1 | 293700019 | FITTING-PUMP | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 271000428 | Venturi Ass'y SP 5879. | ||
| 1 | 271000512 | Venturi Ass'y SPX 5661/5834. | 1 |
| 271000325190 | Shoe (Black) | ||
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 4 | 215686060 | Hex. Screw M8 x 60 SP 5879. | 4 |
| 215687060 | Hex. Screw M8 x 70 SPX 5661/5834. | ||
| 1 | 271000517 | Impeller Ring | 1 |
| 2 | 271000122 | Steering Nozzle Sleeve SP 5879. | 2 |
| 1 | 293900001 | Venturi Bushing SP 5879. | 1 |
| 271000634 | Steering Nozzle Ass'y SP 5879. | ||
| 1 | 271000746 | Steering Nozzle SPX 5661/5834. | 1 |
| 211300015 | STUD-M10 | ||
| 211200002 | Thrust Washer SP 5879. | ||
| 293700017 | BAILER FITTING | ||
| 1 | 293350020 | THRUST WASHER | 1 |
| 1 | 271000704 | SPRING | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 293800028 | Sealant, <<Heavy Body>>-"U" Black, 300ml | 1 |
| 271000085 | Inlet Grate SP 5879. | ||
| 1 | 271000466 | INLET GRATE SPX 5661/5834. | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 4 | 211100033 | Square Nut M8 SP 5879. | 4 |
| 4 | 271000399 | Nut Housing SPX 5661/5834. | 4 |
| 2 | 293300013 | O-Ring | 2 |
| 4 | 213000003 | Lock Washer 10 mm | 4 |
| 6 | 216362560 | Countersunk Phillips Screw M6 x 25 | 6 |
| 2 | 215061660 | Hex. Screw M6 x 16 | 2 |
| 2 | 210000004 | Hex. Screw M6 x 20 | 2 |
| 4 | 213000001 | Lock-Washer 8 mm | 4 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 271000070 | Shim SP 5879. | ||
| 1 | 272000053 | Shim, 0.3 mm SPX 5661/5834. | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 211000047 | SCREW-SPECIAL M8 SP 5879. | 2 |
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 216351060 | SCREW-CTSK.OV.HD.PH.DIN.966A-A2 | ||
| 1 | 293900010 | Plastic Bushing SP 5879. | 1 |
| 291000446 | Ride Shoe Cap | ||
| 271000366 | WATER OUTLET | ||
| 1 | 293200024 | SEAL NEOPRENE | 1 |
| 3 | 213200004 | Flat Washer 5 mm | 3 |
| 271000659 | Spacer SP 5879. | ||
| 271000703 | Pusher |
