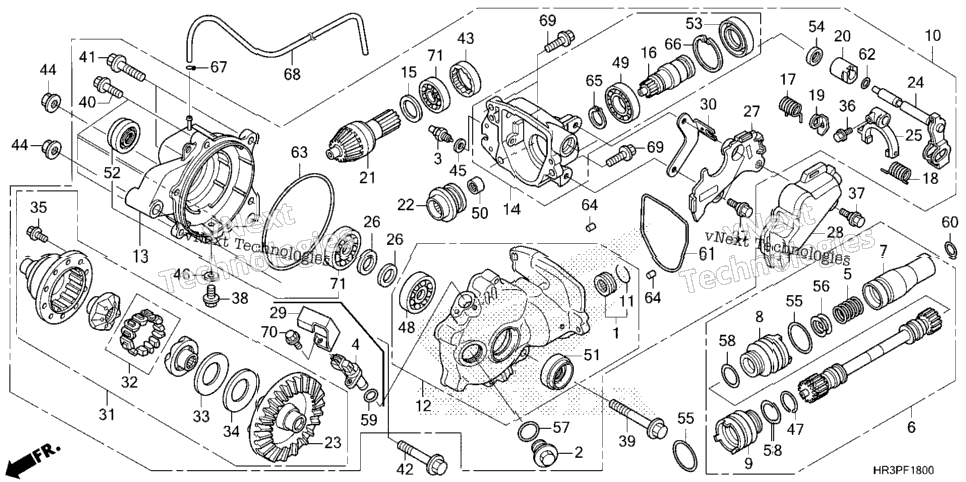

СвязатьсяСписок запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HL5-E60 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 1 | 12361-300-000 | CAP, VALVE ADJ. | 1 |
| 1 | 12361-371-980 | CAP, VALVE ADJ. | 1 |
| 1 | 35600-HN7-003 | SWITCH ASSY., NEUTRAL | 1 |
| 1 | 40215-HM7-000 | SPRING, SHAFT | 1 |
| 1 | 40400-HR3-A20 | SHAFT ASSY., FR. PROPELLER | 1 |
| 1 | 40402-HR3-A20 | JOINT, FR. PROPELLER SHAFT | 1 |
| 1 | 40420-HM7-A00 | BOOT B, PROPELLER | 1 |
| 1 | 40420-HP5-600 | BOOT, PROPELLER SHAFT COVER | 1 |
| 1 | 41400-HR3-HC0 | GEAR ASSY., FR. FINAL | 1 |
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 41411-HR3-HC0 | CASE SUB-ASSY., FR. GEAR | 1 |
| 1 | 41412-HR3-A20 | COVER SUB-ASSY., FR. GEAR CASE | 1 |
| 1 | 41413-HR3-W50 | CASE SUB-ASSY., FR. CLUTCH | 1 |
| 1 | 41447-HM8-000 | SHIM A, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM8-000 | SHIM B, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM8-000 | SHIM C, PINION GEAR (1.76) | 1 |
| 1 | 41451-HM8-000 | SHIM D, PINION GEAR (1.82) | 1 |
| 1 | 41452-HM8-000 | SHIM E, PINION GEAR (1.88) | 1 |
| 1 | 41453-HM8-000 | SHIM F, PINION GEAR (1.94) | 1 |
| 1 | 41454-HM8-000 | SHIM G, PINION GEAR (2.00) | 1 |
| 1 | 41455-HM8-000 | SHIM H, PINION GEAR (2.06) | 1 |
| 1 | 41456-HM8-000 | SHIM I, PINION GEAR (2.12) | 1 |
| 1 | 41457-HM8-000 | SHIM J, PINION GEAR (2.18) | 1 |
| 41458-HN0-670 | SHIM K, PINION GEAR (2.24) | ||
| 41459-HN0-670 | SHIM L, PINION GEAR (2.30) | ||
| 41461-HN0-670 | SHIM M, PINION GEAR (2.36) | ||
| 41462-HN0-670 | SHIM N, PINION GEAR (2.42) | ||
| 41463-HN0-670 | SHIM O, PINION GEAR (2.48) | ||
| 1 | 41502-HL1-A01 | JOINT, FR. FINAL CLUTCH | 1 |
| 1 | 41503-HP5-600 | SPRING, FR. FINAL CLUTCH | 1 |
| 1 | 41504-HP5-600 | SPRING, FR. FINAL CLUTCH LOCK | 1 |
| 1 | 41505-HP5-600 | STOPPER, FR. FINAL CLUTCH | 1 |
| 1 | 41506-HP5-600 | COLLAR, FR. FINAL CLUTCH | 1 |
| 1 | 41521-HR0-F00 | GEAR, FR. PINION (13T) | 1 |
| 1 | 41527-HR0-F00 | SLEEVE, FR. FINAL CLUTCH | 1 |
| 1 | 41531-HR3-A20 | GEAR, FR. RING (42T) | 1 |
| 1 | 41540-HP5-600 | SHAFT, FR. FINAL CLUTCH | 1 |
| 1 | 41550-HP5-600 | FORK, FR. FINAL CLUTCH | 1 |
| 2 | 41631-HR0-F00 | SHIM A, RING GEAR (0.50) | 2 |
| 2 | 41632-HR0-F00 | SHIM B, RING GEAR (0.55) | 2 |
| 2 | 41633-HR0-F00 | SHIM C, RING GEAR (0.60) | 2 |
| 2 | 41634-HR0-F00 | SHIM D, RING GEAR (0.65) | 2 |
| 2 | 41635-HR0-F00 | SHIM E, RING GEAR (0.70) | 2 |
| 2 | 41636-HR0-F00 | SHIM F, RING GEAR (0.75) | 2 |
| 2 | 41637-HR0-F00 | SHIM G, RING GEAR (0.80) | 2 |
| 2 | 41638-HR0-F00 | SHIM H, RING GEAR (0.85) | 2 |
| 2 | 41639-HR0-F00 | SHIM I, RING GEAR (0.90) | 2 |
| 2 | 41640-HR0-F00 | SHIM J, RING GEAR (0.95) | 2 |
| 2 | 41641-HR0-F00 | SHIM K, RING GEAR (1.00) | 2 |
| 2 | 41642-HR0-F00 | SHIM L, RING GEAR (1.05) | 2 |
| 2 | 41643-HR0-F00 | SHIM M, RING GEAR (1.10) | 2 |
| 2 | 41644-HR0-F00 | SHIM N, RING GEAR (1.15) | 2 |
| 2 | 41645-HR0-F00 | SHIM O, RING GEAR (1.20) | 2 |
| 2 | 41646-HR0-F00 | SHIM P, RING GEAR (1.25) | 2 |
| 2 | 41647-HR0-F00 | SHIM Q, RING GEAR (1.30) | 2 |
| 2 | 41648-HR0-F00 | SHIM R, RING GEAR (1.35) | 2 |
| 2 | 41649-HR0-F00 | SHIM S, RING GEAR (1.40) | 2 |
| 2 | 41650-HR0-F00 | SHIM T, RING GEAR (1.45) | 2 |
| 2 | 41651-HR0-F00 | SHIM U, RING GEAR (1.50) | 2 |
| 2 | 41652-HR0-F00 | SHIM V, RING GEAR (1.55) | 2 |
| 2 | 41653-HR0-F00 | SHIM W, RING GEAR (1.60) | 2 |
| 1 | 41711-HP5-600 | CASE, CLUTCH ARM | 1 |
| 1 | 41712-HP5-600 | COVER, CLUTCH ARM | 1 |
| 1 | 41715-HP5-600 | STAY, CLUTCH CABLE | 1 |
| 1 | 42400-HR3-A21 | DIFFERENTIAL ASSY. | 1 |
| 1 | 42440-HN5-671 | FOLLOWER SET, CAM | 1 |
| 1 | 42451-HN7-003 | SHIM A (1.3) | 1 |
| 1 | 42452-HN7-003 | SHIM B (1.4) | 1 |
| 1 | 42453-HN7-003 | SHIM C (1.5) | 1 |
| 1 | 42454-HN7-003 | SHIM D (1.6) | 1 |
| 1 | 42455-HN7-003 | SHIM E (1.7) | 1 |
| 1 | 42456-HN7-003 | SHIM F (1.8) | 1 |
| 1 | 42457-HN7-003 | SHIM G (1.9) | 1 |
| 1 | 42461-HN5-671 | SPRING, DIFFERENTIAL SIDE CONED | 1 |
| 10 | 90101-HN8-000 | BOLT (8X17) | 10 |
| 1 | 90101-HP5-600 | BOLT, SPECIAL (6MM) | 1 |
| 3 | 90106-MM9-000 | BOLT, FR. FENDER FIXING | 3 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 1 | 90102-HR6-B00 | BOLT, FLANGE (10X96) | 1 |
| 4 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 4 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90182-MB2-003 | BOLT, FLANGE (10X66) | 1 |
| 1 | 90244-HA0-000 | NUT, LOCK (60MM) | 1 |
| 2 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) | 2 |
| 1 | 90443-KR0-000 | WASHER, NEUTRAL SWITCH | 1 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 1 | 91012-KF0-000 | CLIP, NEEDLE THRUST BEARING (12MM) | 1 |
| 1 | 91052-HR3-W51 | BEARING, RADIAL BALL (30X56X13) (ZHEJIANG) | 1 |
| 1 | 91059-HL4-A01 | BEARING, RADIAL BALL (60/32) | 1 |
| 1 | 91056-HP5-601 | BEARING, NEEDLE (12X18X12) | 1 |
| 1 | 91252-HC5-003 | OIL SEAL (22X48X7) (ARAI) | 1 |
| 1 | 91254-HR3-A21 | OIL SEAL (42X58X12) | 1 |
| 1 | 91254-KS7-831 | DUST SEAL (22X28X5) | 1 |
| 2 | 91302-HM7-A00 | BAND, BOOT (D27) | 2 |
| 1 | 91302-HN5-671 | SEAL, PROPELLER | 1 |
| 1 | 91302-001-020 | O-RING (30.8MM) | 1 |
| 2 | 91303-HM7-A00 | BAND, BOOT (D20) | 2 |
| 1 | 91311-MB0-003 | O-RING (18.5X2.4) (ARAI) | 1 |
| 1 | 91351-HP5-601 | GASKET, FR. FINAL CLUTCH COVER | 1 |
| 1 | 91352-GAZ-930 | O-RING (8.5X1.5) | 1 |
| 1 | 91352-HR0-F01 | O-RING (132X2) | 1 |
| 2 | 94301-06100 | PIN, DOWEL (6X10) | 2 |
| 1 | 94510-32000 | CIRCLIP (OUTER) (32MM) | 1 |
| 1 | 94520-58000 | CIRCLIP, INNER (58MM) | 1 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X660) | 1 |
| 3 | 95701-08025-00 | BOLT, FLANGE (8X25) | 3 |
| 2 | 96100-60063-00 | BEARING, RADIAL BALL (6006) | 2 |
