Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

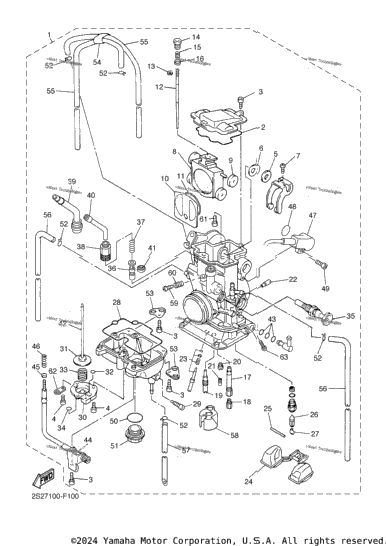

| 1 | 17D-14101-90-00 | Carburetor Assy 1 | 1 |
| 1 | 5JG-14959-00-00 | . .Gasket | 1 |
| 6 | 91316-04012-00 | . .Bolt | 6 |
| 3 | 688-14592-00-00 | . .Screw | 3 |
| 1 | 90202-08045-00 | . .Washer, Plate | 1 |
| 1 | 5JG-14951-00-00 | . .Washer | 1 |
| 1 | 5JG-14522-00-00 | . .Screw, Adjust | 1 |
| 1 | 2S2-14388-00-00 | . .Valve, Vacuum Control | 1 |
| 1 | 3TJ-14267-40-00 | . .Roller | 1 |
| 1 | 5JG-14546-01-00 | . .Valve, Needle | 1 |
| 1 | 4FN-14997-00-00 | . .Seal | 1 |
| 1 | 5TA-14916-LR-00 | . .Needle (#Nflr) AP | 1 |
| 1 | 5TA-14916-LN-00 | . .Needle (#Nfln) AP | 1 |
| 1 | 5TA-14916-LP-00 | . .Needle (#Nflp) AP | 1 |
| 1 | 5TA-14916-L1-00 | . .Needle (#Nflq) AP | 1 |
| 1 | 5TA-14916-LS-00 | . .Needle (#Nfls) AP | 1 |
| 1 | 5TA-14916-LT-00 | . .Needle (#Nflt) AP | 1 |
| 1 | 5TA-14916-LU-00 | . .Needle (#Nflu) AP | 1 |
| 1 | 5TA-14916-PN-00 | . .Needle (#Nfpn) AP | 1 |
| 1 | 5TA-14916-PP-00 | . .Needle (#Nfpp) AP | 1 |
| 1 | 5TA-14916-P1-00 | . .Needle (#Nfpq) AP | 1 |
| 1 | 5TA-14916-PR-00 | . .Needle (#Nfpr) STD | 1 |
| 1 | 5TA-14916-PS-00 | . .Needle (#Nfps) AP | 1 |
| 1 | 5TA-14916-PT-00 | . .Needle (#Nfpt) AP | 1 |
| 1 | 5TA-14916-PU-00 | . .Needle (#Nfpu) AP | 1 |
| 1 | 3TJ-14159-40-00 | . .Clip | 1 |
| 1 | 5JG-14521-00-00 | . .Screw, Adjust | 1 |
| 1 | 5JG-14275-00-00 | . .Spring | 1 |
| 1 | 5JG-14264-00-00 | . .Collar | 1 |
| 1 | 17D-14947-00-00 | . .Jet, Needle | 1 |
| 1 | 4MX-14943-42-00 | . .Jet, Main (#175) AP | 1 |
| 1 | 4MX-14943-43-00 | . . .Jet, Main (#180) AP | 1 |
| 1 | 4MX-14943-93-00 | . .Jet, Main (#178) AP | 1 |
| 1 | 4MX-14943-94-00 | . .Jet, Main (#182) AP | 1 |
| 1 | 4MX-14943-44-00 | . . .Jet, Main (#185) STD | 1 |
| 1 | 4MX-14943-95-00 | . .Jet, Main (#188) AP | 1 |
| 1 | 4MX-14943-45-00 | . .Jet, Main (#190) AP | 1 |
| 1 | 4MX-14943-46-00 | . .Jet, Main (#195) AP | 1 |
| 1 | 4MX-14943-96-00 | . .Jet, Main (#192) AP | 1 |
| 1 | 4MX-14948-04-00 | . .Jet, Slow (#42) AP | 1 |
| 1 | 4MX-14948-01-00 | . .Jet, Slow (#35) AP | 1 |
| 1 | 4MX-14948-02-00 | . .Jet, Slow (#38) AP | 1 |
| 1 | 4MX-14948-03-00 | . .Jet, Slow (#40) AP | 1 |
| 1 | 17D-14948-02-00 | . .Jet, Slow (#38) STD | 1 |
| 1 | 3TJ-1494F-13-00 | . .Jet (#65) AP | 1 |
| 1 | 3TJ-1494F-14-00 | . .Jet (#68) AP | 1 |
| 1 | 3TJ-1494F-15-00 | . .Jet (#70) AP | 1 |
| 1 | 3TJ-1494F-16-00 | . .Jet (#72) STD | 1 |
| 1 | 3TJ-1494F-17-00 | . .Jet (#75) AP | 1 |
| 1 | 3TJ-1494F-18-00 | . .Jet (#78) AP | 1 |
| 1 | 3TJ-1494F-19-00 | . .Jet (#80) AP | 1 |
| 1 | 4JT-1494F-13-00 | . .Jet (#65) AP | 1 |
| 1 | 4JT-1494F-28-00 | . .Jet (#105) AP | 1 |
| 1 | 4JT-1494F-17-00 | . .Jet (#75) AP | 1 |
| 1 | 4JT-1494F-21-00 | . .Jet (#85) AP | 1 |
| 1 | 4JT-1494F-25-00 | . .Jet (#95) STD | 1 |
| 1 | 4JT-1494F-30-00 | . .Jet (#115) AP | 1 |
| 1 | 4JT-1494F-32-00 | . .Jet (#125) AP | 1 |
| 1 | 5TA-14943-27-00 | . .Jet, Main (#100) | 1 |
| 1 | 5NL-14105-00-00 | . Pilot Screw Set | 1 |
| 1 | 17D-14985-00-00 | . .Float | 1 |
| 1 | 676-14548-00-00 | . .Pin, Float Arm | 1 |
| 1 | 4MX-14392-00-00 | . .Valve, Needle | 1 |
| 1 | 633-14159-00-00 | . .Clip | 1 |
| 1 | 5JG-14984-00-00 | . .Gasket, Float Chamber | 1 |
| 1 | 3TJ-14191-40-00 | . ..Plug, Drain | 1 |
| 1 | 3TJ-14293-40-00 | . .Cover 1 | 1 |
| 1 | 5JG-14940-18-00 | . .Diaphragm, Acc Pump (Dph#25) AP | 1 |
| 1 | 5JG-14940-17-00 | . .Diaphragm, Acc Pump (Dph#35) AP | 1 |
| 1 | 5JG-14940-76-00 | . .Diaphragm, Acc Pump (Dph#30) STD | 1 |
| 1 | 5JG-14940-16-00 | . .Diaphragm, Acc Pump (Dph#45) AP | 1 |
| 1 | 3TJ-14536-40-00 | . .Gasket | 1 |
| 1 | 3TJ-14933-40-00 | . .Spring, Diaphragm | 1 |
| 1 | 6H4-14561-00-00 | . .O-Ring | 1 |
| 1 | 5XC-14171-00-00 | . .Plunger, Starter | 1 |
| 1 | 5TA-14371-00-00 | . .Plunger, Starter | 1 |
| 1 | 5TA-14335-00-00 | . .Spring, Plunger | 1 |
| 1 | 5TA-14991-00-00 | . .Screw | 1 |
| 1 | 2S2-14374-00-00 | . .Cap, Plunger | 1 |
| 1 | 5TA-14155-00-00 | . .Guide, Cable | 1 |
| 1 | 5TA-14997-00-00 | . .Seal | 1 |
| 1 | 5JG-14379-00-00 | . .Rod, Starter | 1 |
| 3 | 3TJ-14564-40-00 | . O-Ring | 3 |
| 1 | 5XC-14922-00-00 | . .Screw, Throttle | 1 |
| 1 | 90201-08410-00 | . .Washer, Plate | 1 |
| 1 | 5TA-14934-00-00 | . .Spring, Throttle Stop | 1 |
| 1 | 17D-85885-00-00 | . .Throttle Sensor Assy | 1 |
| 1 | 5NX-14562-00-00 | . .O-Ring | 1 |
| 1 | 5NX-14216-00-00 | . .Screw | 1 |
| 1 | 4MX-14561-00-00 | . .O-Ring | 1 |
| 1 | 4MX-14115-00-00 | . .Plug, Screw | 1 |
| 5 | 3TJ-14137-40-00 | . .Clip | 5 |
| 2 | 5BE-14146-00-00 | . .Plate | 2 |
| 1 | 5TA-14261-00-00 | . .Holder | 1 |
| 2 | 5UL-14196-00-00 | . .Pipe, Over Flow 1 | 2 |
| 2 | 5TA-14197-00-00 | . .Pipe | 2 |
| 1 | 5TJ-14987-00-00 | . .Hose | 1 |
| 1 | 5JG-14346-00-00 | . .Plate | 1 |
| 1 | 5JG-14565-00-00 | . .Screw | 1 |
| 1 | 5JG-14531-00-00 | . .Spring, Adjust Screw | 1 |
| 1 | 5NL-14591-00-00 | . .Screw | 1 |
| 5PA-14146-00-00 | . .Plate | ||
| 1 | 5XD-14325-00-00 | . Screw, Pan Head | 1 |
