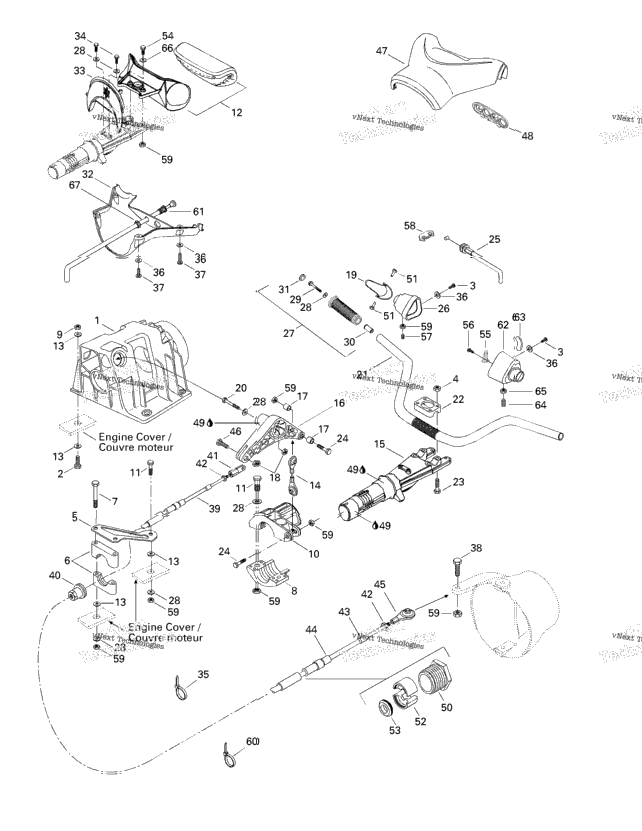

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000617 | STEERING SUPPORT | ||
| 4 | 210100013 | Hex. Screw M8 x 35 | 4 |
| 4 | 211100004 | Tapping Screw | 4 |
| 4 | 212000002 | Elastic Stop Nut M8 | 4 |
| 277000738 | Cable Support | ||
| 2 | 277000162 | Support Thrust | 2 |
| 2 | 215666560 | Hex. Screw M6 x 65 | 2 |
| 277000519 | Arm Thrust | ||
| 277000620 | Steering Arm Stem | ||
| 3 | 210000005 | Hex. Screw M6 x 25 | 3 |
| 277000627 | Handle Bar Pad | ||
| 11 | 293050001 | Flat Washer M8.5 x 18 | 11 |
| 277000369 | Ball Joint | ||
| 277000562400 | Steering Stem | ||
| 277000644 | L Lever Includes 16 - 18. | ||
| 291000176 | SPACER | ||
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 277000214 | Throttle Handle | ||
| 1 | 210000004 | Hex. Screw M6 x 20 | 1 |
| 277000305 | Handle bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 215685060 | Hex. Screw M8 x 50 | 4 |
| 2 | 215664060 | Hex. Screw M6 x 40 | 2 |
| 277000622 | Throttle Cable | ||
| 277000285 | Throttle Handle Housing | ||
| 1 | 295500110 | Handle Grip Kit (Black) Includes 27 - 31. | 1 |
| 10 | 213200007 | Washer 6 mm | 10 |
| 2 | 211000031 | Hex. Screw M6 x 45 | 2 |
| XXXX | Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277000625 | LOWER STEERING COVER | 1 |
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 6 | 213200004 | Flat Washer 5 mm | 6 |
| 4 | 211000033 | Screw K40 x 16 | 4 |
| 1 | 210000006 | Hex. Screw M6 x 30 | 1 |
| 277000629 | Steering Cable Includes 39 - 40. | ||
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 277000740 | Rotule | ||
| 2 | 212100005 | Hex. Nut | 2 |
| 277000038 | Small Boot | ||
| 1 | 277000039 | LARGE BOOT | 1 |
| 1 | 277000153 | BALL JOINT | 1 |
| 1 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 1 |
| 277000623 | Upper Steering Cover Includes 47 - 48. | ||
| 277000674 | Steering Cover Plate | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 277000052 | Cable Lock | 1 |
| 2 | 277000381 | PIN | 2 |
| 2 | 277000055 | Half Ring | 2 |
| 211100009 | RUBBER WASHER | ||
| 277000219 | Retainer Plate | ||
| 1 | 211000032 | Tapping Screw | 1 |
| 211000039 | Set Screw M6 x 12 | ||
| 1 | 277000279 | TAB LOCK | 1 |
| 11 | 212000001 | Elastic Stop Nut M6 | 11 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 270000265 | Choke Cable(Incl. It. 8) | ||
| 277000498 | LH HANDLE HOUSING Includes 62 - 65. | ||
| 1 | 277000497 | VTS KNOB | 1 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 2 | 213200001 | Flat Washer 6 mm | 2 |
| 211100030 | NUT-HEXAGONAL HI-LEX |
