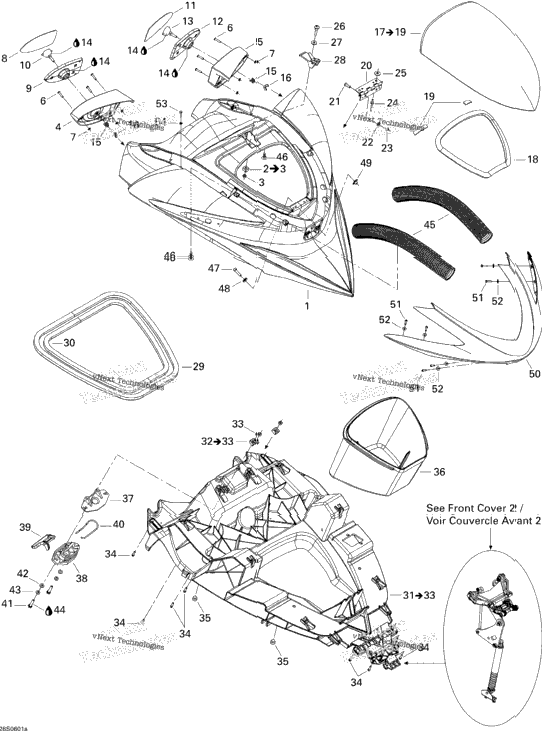

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501448 | Upper Storage Cover, Gold Maya Maya Gold, B-270 | ||
| 269501474 | Upper Storage Cover, Viper Red Viper Red, B-270 | ||
| 1 | 269501166 | Nut Housing Ass'y | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 269501449 | RH Mirror Housing, Maya Gold Maya Gold, B-270 | ||
| 269501368 | RH Mirror Housing, Viper Red Viper Red, B-270 | ||
| 269501450 | LH Mirror Housing, Maya Gold Maya Gold, B-270 | ||
| 1 | 269501369 | LH MIRROR HOUSING, VIPER RED Viper Red, B-270 | 1 |
| 6 | 293150005 | Pop Rivet 3/16" | 6 |
| 6 | 213200016 | Flat Washer, Emhart | 6 |
| 269500687 | RH Mirror | ||
| 269500697 | Frame Mirror | ||
| 269500079 | MIRROR BALL JOINT | ||
| 269500788 | LH Mirror | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 2 | 232661600 | WING NUT M6 | 2 |
| 269501513 | Access Cover Ass'y | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 1 | 269500338 | HINGE | 1 |
| 2 | 205451660 | Socket Head Screw M5 X 16 | 2 |
| 2 | 211200035 | Flat Washer | 2 |
| 2 | 232551200 | Elastic Stop Nut 5 mm | 2 |
| 2 | 204000081 | Pop Rivet 3/16" | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 1 | 291001242 | Anchoring Stud | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 269501487 | Latch | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269501379 | LOWER STORAGE COVER | ||
| 2 | 269500252 | M6 Nut Housing Ass'y | 2 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 8 | 241141360 | Hex. Flange Screw K40 X 13 | 8 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 269501133 | STORAGE BOX | ||
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 291001646 | Ventilation Hose | 2 |
| 2 | 293730011 | Black, Dart | 2 |
| 2 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 293100003 | Nut Welded, M6 | 2 |
| 1 | 269501238 | Front Grille | 1 |
| 6 | 241141660 | Hex. Flange Screw K40 X 16 | 6 |
| 6 | 234042600 | Flat Washer 4 mm, Stainless | 6 |
| 4 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
