Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

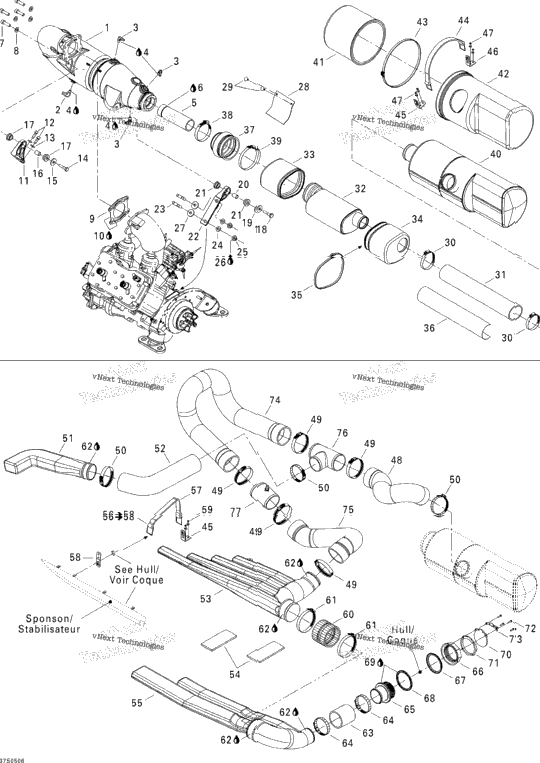

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 274001189 | Head Pipe, Black | ||
| 1 | 293700023 | Elbow Fitting 90° | 1 |
| 3 | 293700024 | ELBOW FITTING 90 | 3 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 274001236 | Threaded Tube | ||
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 4 | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP | 4 |
| 4 | 234001600 | Flat Washer 10 mm, Stainless | 4 |
| 1 | 420931503 | EXHAUST GASKET | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 274001129 | Pipe Support | ||
| 2 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 2 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 1 | 245004060 | HEX. SCREW M10 X 40, SCOTCH GRIP | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 274000861 | BUSHING | ||
| 293830065 | RUBBER BUSHING | ||
| 274001131 | Pipe Support | ||
| 250300007 | Stud M10 X 60 | ||
| 2 | 234001600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 233101600 | Hex. Flange Nut M10 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 293830109 | Rubber Pad | ||
| 2 | 293730011 | Black, Dart | 2 |
| 2 | 293650064 | Tridon Clamp | 2 |
| 274001208 | Exhaust Connecting Hose | ||
| 1 | 274001196 | MUFFLER | 1 |
| 274001197 | Muffler Cover, Front | ||
| 274001198 | Muffler Cover, Rear | ||
| 1 | 293750020 | WRAP_TIE 828 X 9 | 1 |
| 274001225 | Heat Shield | ||
| 1 | 274001116 | EXHAUST BELLOW | 1 |
| 1 | 293650168 | TRIDON GEAR CLAMP | 1 |
| 1 | 293650169 | TRIDON GEAR CLAMP | 1 |
| 274001203 | Muffler | ||
| 274001192 | Muffler Cover, Front | ||
| 1 | 274001072 | MUFFLER COVER, REAR | 1 |
| 1 | 293850036 | Fuel Tank Strap | 1 |
| 293850076 | STRAP CLIP 90 | ||
| 1 | 293850075 | STRAP CLIP | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 274001178 | EXHAUST HOSE | 1 |
| 5 | 293650107 | Tridon Clamp | 5 |
| 3 | 293650064 | Tridon Clamp | 3 |
| 274000994 | Straight Resonator | ||
| 1 | 274001179 | HOSE | 1 |
| 1 | 274000700 | LH UPPER RESONATOR | 1 |
| 2 | 274000752 | RUBBER PAD | 2 |
| 1 | 274000701 | RESONATOR EXTENSION | 1 |
| 293850082 | Strap Ass`Y Includes 56 to 58 | ||
| 1 | 293850030 | Strap Clip | 1 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 1 | 274000726 | EXHAUST HOSE | 1 |
| 2 | 204000079 | Tridon Clamp | 2 |
| 1 | 293800090 | Sealant, Loctite, 80 ml | 1 |
| 274000616 | Exhaust Hose | ||
| 1 | 274000843 | Exhaust Outlet | 1 |
| 1 | 274000835 | NUT 72 MM | 1 |
| 274000225 | STABILIZING WASHER | ||
| 1 | 293250041 | GASKET | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 293250107 | GASKET | 1 |
| 1 | 274000892 | SUPPORT NUT | 1 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 1 | 274000885 | BRACKET | 1 |
| 274001180 | Exhaust Hose | ||
| 274001181 | Exhaust Hose | ||
| 274001080 | T-Fitting | ||
| 274001081 | Adapter Hose |
