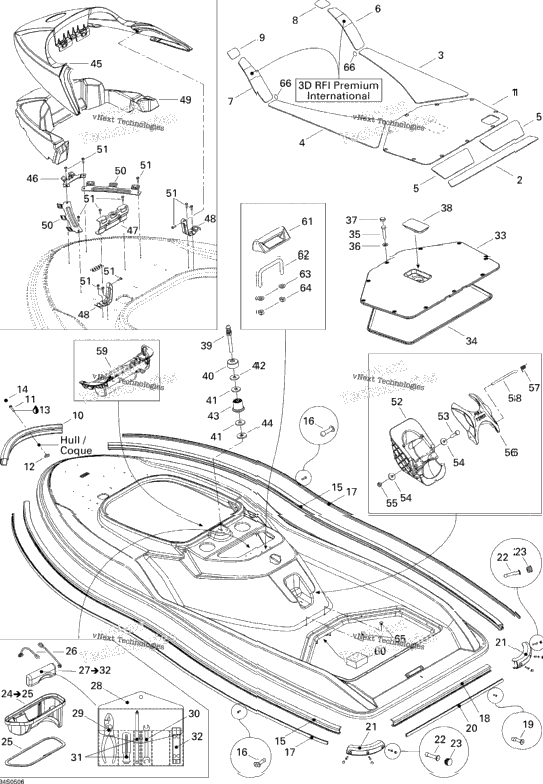

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291002197 | Rear Door Carpet Base | ||
| 291002198 | Rear Door Carpet Premium | ||
| 291002199 | Rear Door Carpet Premium International | ||
| 291002202 | Rear Carpet, Black Base | ||
| 291002203 | Rear Carpet, Black Premium | ||
| 291002204 | RH Center Carpet Base | ||
| 291002205 | RH Center Carpet Premium | ||
| 291002206 | LH Center Carpet Base | ||
| 291002207 | LH Center Carpet Premium | ||
| 291002208 | Rear Lateral Carpet Base | ||
| 291002209 | Rear Lateral Carpet Premium | ||
| 291002219 | RH Front Carpet Premium International | ||
| 291002220 | LH Front Carpet Premium International | ||
| 1 | 291001758 | RH ANTI-SKID Premium | 1 |
| 291001759 | LH Anti-Skid Base | ||
| 1 | 291000801 | BUMPER NOSE | 1 |
| 4 | 208652560 | Phillips Screw M5 X 25 | 4 |
| 250100044 | NUT-WELD M5 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 291001519 | Bumper Plug, Black | ||
| 2 | 291000995 | Side Bumper | 2 |
| 42 | 293150005 | Pop Rivet 3/16" | 42 |
| 291000843 | LATERAL BUMPER TRIM, BLACK Viper Red B-176 | ||
| 291002019 | Lateral Bumper Trim, Yellow Yellow B-244 | ||
| 1 | 291000997 | Rear Bumper | 1 |
| 6 | 293150005 | Pop Rivet 3/16" | 6 |
| 291000788 | REAR BUMPER TRIM, BLACK Viper Red B-176 | ||
| 291002020 | Bumper Trim, yellow Yellow B-244 | ||
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 269501251 | Central Luggage Tray Includes 24 to 25 | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 2 | 269501299 | Strap | 2 |
| 294000687 | Tool Kit Includes 27 to 32 | ||
| XXXX | Not Available As Spare Part - Pouch Ass'y | ||
| XXXX | Not Available As Spare Part - Pliers | ||
| 529017300 | FORK WRENCH | ||
| 529019200 | DRIVER SCREW | ||
| 1 | 529014900 | Socket Wrench 10/13 mm | 1 |
| 269501444 | Rear Cover Ass | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 10 | 207063060 | Hex. Screw M6 X 30 | 10 |
| 10 | 234061600 | Stainless, Flat Washer M6 | 10 |
| 10 | 414436900 | Black Snap Cap | 10 |
| 291002045 | Foam Latch | ||
| 1 | 291002040 | LATCH STUD | 1 |
| 293830025 | Rubber Pad | ||
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 291001089 | Spacer Ring | ||
| 1 | 291000628 | RUBBER WASHER | 1 |
| 277001238 | Front Cover Yellow B-244 | ||
| 277001417 | Front Cover Viper Red B-176 | ||
| 291002021 | Deflector Support | ||
| 291002037 | Central Deflector Support | ||
| 291002038 | Rear Deflector Support | ||
| 291002039 | Deflector Foam | ||
| 291002041 | Lateral Deflector Support | ||
| 12 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 12 |
| 1 | 269001019 | BASE | 1 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 269001129 | BASE DOOR | 1 |
| 1 | 269001130 | DOOR SPRING | 1 |
| 1 | 269001131 | DOOR SHAFT | 1 |
| 1 | 269501290 | EXTINGUISHER TRAY | 1 |
| 291002031 | Deck Foam | ||
| 269001317 | Pole Hook | ||
| 1 | 269001142 | U BOLT | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 414644300 | Black, Dart | 2 |
| 219902509 | Rond Sticker |
