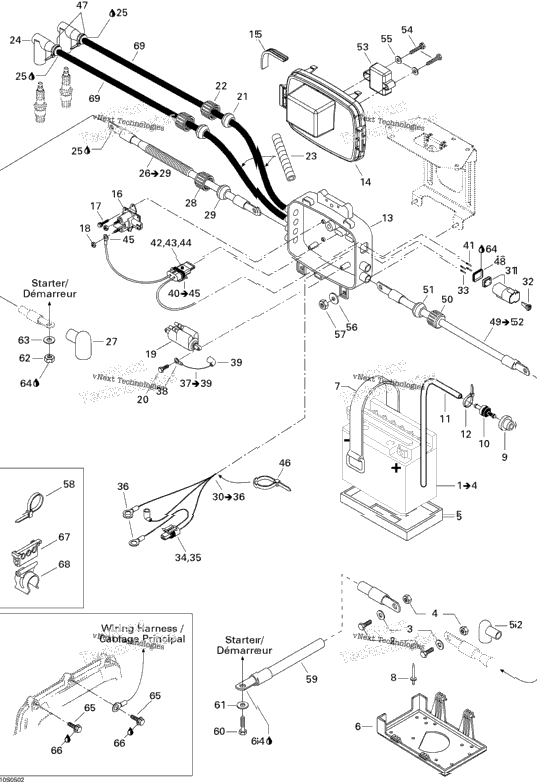

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278001756 | Battery 19A Includes 1 to 4 | 1 |
| 2 | 207161644 | Hex. Screw M6 X 16 | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 232061414 | Hex. Nut M6 | 2 |
| 1 | 278001976 | LOWER BATTERY PAD | 1 |
| 1 | 278001972 | BATTERY SUPPORT | 1 |
| 2 | 293850097 | Retainer Strap | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 278001712 | Electrical Box Base | ||
| 278001785 | Box Cover | ||
| 278001173 | GASKET | ||
| 1 | 278001802 | Relay Starter | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 278000383 | Ignition Coil | 1 |
| 250000005 | Hex. Tapping Screw | ||
| 278000682 | Grommet | ||
| 278000100 | Electric Wire Cap | ||
| 293100012 | Housing 9 mm, Meter | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001646 | Battery Red Cable Includes 26 to 29 | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278000098 | GROMMET | ||
| 278002086 | Electric Box Harness Includes 30 to 36 | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 3 | 278000631 | Male Terminal | 3 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 2 | 278000992 | Open Barrel | 2 |
| 278000664 | Ground Harness Includes 37 to 39 | ||
| 278000300 | Ring Terminal | ||
| 1 | 278000228 | FEMALE TERMINAL | 1 |
| 278002087 | Fuse Harness 20 Amperes Includes 40 to 45 | ||
| 1 | 278000631 | Male Terminal | 1 |
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 278001143 | Fuse, 20 amperes | 1 |
| 2 | 710000113 | Female Terminal | 2 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 293200055` | Gasket | ||
| 278001679 | Red Starter Cable Includes 49 to 52 | ||
| 278001795 | CUT-OFF RELAY | ||
| 2 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 278001667 | Ground Cable Battery, No. 6, Meter | ||
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 2 | 420841543 | TAPTITE SCREW M6 X 25 | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 1 | 278000559 | COLLAR SUPPORT | 1 |
| 2 | 278002198 | SPARK PLUG WIRE | 2 |
