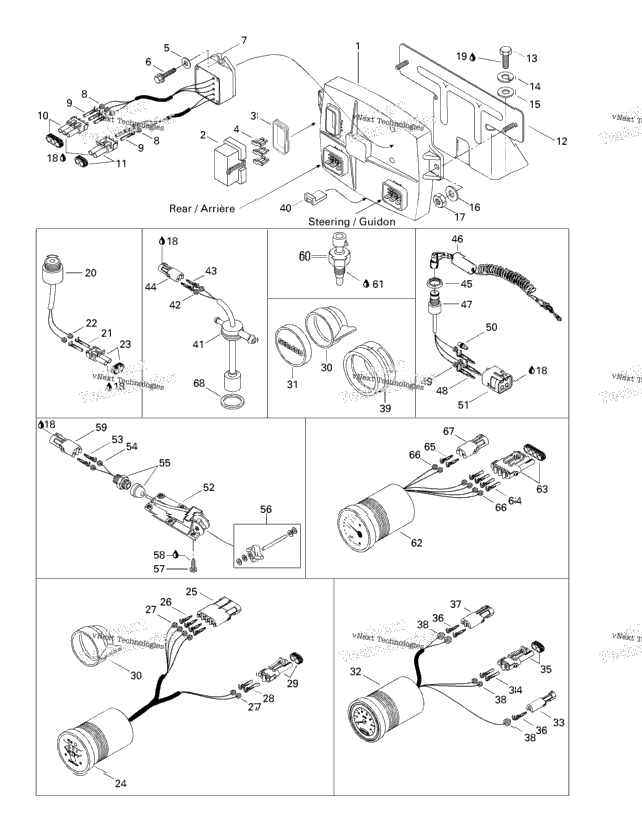

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001078 | Electronic Module (2 Connectors) | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 213200001 | Flat Washer 6 mm | 2 |
| 2 | 211000106 | Hex. Forming Screw M6 X 16 | 2 |
| 1 | 278001240 | RECTIFIER ASS'Y Includes 7 - 11. | 1 |
| 5 | 278000218 | Wire Seal | 5 |
| 5 | 409007300 | Female Terminal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 278001131 | Box Support Ass'y | ||
| 4 | 211000074 | Screw Plastite | 4 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 2 | 213200007 | Washer 6 mm | 2 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278000978 | Buzzer Ass'y Includes 20 - 23. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 278001103 | Fuel/essence Includes 24 - 29. | ||
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 4 | 278000222 | Male Terminal | 4 |
| 6 | 278000218 | Wire Seal | 6 |
| 293720005 | GAUGE SUPPORT | ||
| 269700035 | Cap Jauge (Black) | ||
| 278001104 | Speedometer Includes 32 - 38. | ||
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 3 | 278000222 | Male Terminal | 3 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 293720047 | Gauge Support | ||
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 204470106 | OIL LEVEL SENSOR ASS'Y Includes 41 - 44. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 295500444 | Safety Landyard Ass'y | 1 |
| 278000977 | Safety Switch Includes 47 - 51. | ||
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 278000970 | Speed Sensor Ass’Y Includes 52 - 56. | ||
| XXXX | Male Terminal | ||
| XXXX | Wire Seal | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 216151660 | Screw M5 x 16 | ||
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 278000965 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 278000989 | VTS Gauge Includes 62 - 67. | ||
| 4 | 278000223 | Female Terminal | 4 |
| 6 | 278001065 | Wire Seal | 6 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 204470104 | Grommet |
