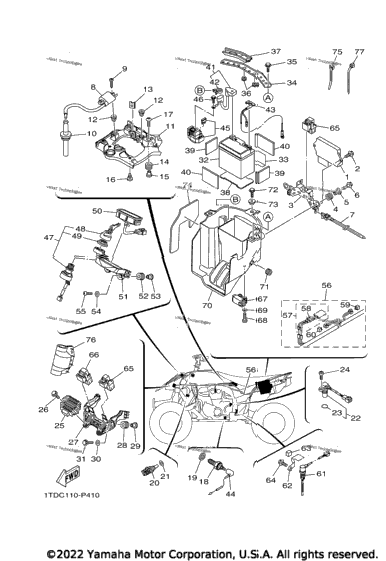

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1TD-8591A-10-00 | Engine Control Unit Assy | 1 |
| 2 | 95812-06016-00 | Bolt, Flange | 2 |
| 1 | 18P-85991-00-00 | Bracket, Unit | 1 |
| 2 | 90480-14011-00 | Grommet | 2 |
| 2 | 90387-06388-00 | Collar | 2 |
| 2 | 95812-06020-00 | .Bolt, Flange | 2 |
| 1 | 90464-12036-00 | Clamp | 1 |
| 1 | 18P-82310-00-00 | Ignition Coil Assy | 1 |
| 2 | 97702-60125-00 | Screw, Tapping | 2 |
| 1 | 18P-82370-00-00 | Plug Cap Assy | 1 |
| 1 | 18P-81948-00-00 | Bracket | 1 |
| 3 | 90338-08226-00 | Plug | 3 |
| 1 | 90183-060A6-00 | Nut, Spring | 1 |
| 2 | 90480-14323-00 | Grommet | 2 |
| 2 | 90387-06161-00 | Collar | 2 |
| 2 | 90338-05008-00 | Plug | 2 |
| 2 | 90111-06084-00 | Bolt,Hex. Socket Button | 2 |
| 1 | 3GB-82540-01-00 | Neutral Switch Assy | 1 |
| 1 | 90430-10148-00 | Gasket | 1 |
| 1 | 5YP-85790-00-00 | Thermosensor Assy | 1 |
| 1 | 90430-12202-00 | Gasket | 1 |
| 1 | 18P-83755-00-00 | Sensor, Speed | 1 |
| 1 | 4D9-81168-00-00 | . .O-Ring | 1 |
| 1 | 91312-06016-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 5BN-81960-00-00 | Rectifier & Regulator Assy | 1 |
| 2 | 95802-06020-00 | Bolt, Flange | 2 |
| 1 | 18P-87208-00-00 | Stay, Regulator | 1 |
| 2 | 90480-10289-00 | Grommet | 2 |
| 2 | 90387-06204-00 | Collar | 2 |
| 2 | 90201-06078-00 | Washer, Plate | 2 |
| 95802-06025-00 | Bolt, Flange | ||
| 1 | 1TD-H2100-00-00 | Battery Assy (Ytz7s) | 1 |
| 1 | 18P-82122-00-00 | Seat, Battery | 1 |
| 1 | 18P-82128-00-00 | Bracket, Battery | 1 |
| 2 | 90105-06084-00 | Bolt, Flange | 2 |
| 2 | 90338-12192-00 | Plug | 2 |
| 1 | 18P-82129-00-00 | Cover, Battery | 1 |
| 1 | 4D3-82122-00-00 | Seat, Battery | 1 |
| 2 | 5MP-21747-00-00 | Damper | 2 |
| 2 | 4HC-27415-00-00 | Plate, Footrest | 2 |
| 1 | 18P-W8211-10-00 | Wire, Plus Lead | 1 |
| 1 | 90464-12001-00 | . Clamp | 1 |
| 1 | 18P-82116-00-00 | Wire, Minus Lead | 1 |
| 1 | 18P-82541-00-00 | Wire, Lead | 1 |
| 1 | 18P-81940-00-00 | Starter Relay Assy (Rc19-084A) | 1 |
| 2 | 95022-06008-00 | Bolt, Flange | 2 |
| 1 | 4SH-82510-00-00 | Main Switch Assy | 1 |
| 1 | 3HN-82579-00-00 | . .Cap, Key | 1 |
| 1 | 3HN-82569-00-00 | . .Nut, Main Switch | 1 |
| 1 | 18P-83530-00-00 | Pilot Light Assy | 1 |
| 1 | 18P-8361L-00-00 | Bracket, Indicator | 1 |
| 2 | 92012-06025-00 | Bolt, Button Head | 2 |
| 1 | 1TD-82590-00-00 | Wire Harness Assy | 1 |
| 3D5-82180-00-00 | . .Circuit Breaker Assy | ||
| 1 | 3D5-82560-00-00 | . . ..Thermo Switch Assy | 1 |
| 1 | 4WA-81980-00-00 | . .Diode Assy | 1 |
| 1 | 3WP-81980-00-00 | . .Diode Assy | 1 |
| 1 | 18P-82530-10-00 | Stop Switch Assy | 1 |
| 1 | 18P-8246B-10-00 | Cover 1 | 1 |
| 1 | 1TD-2177N-00-00 | Damper, Locating 4 | 1 |
| 1 | 95022-06010-00 | Bolt, Flange | 1 |
| 2 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 2 |
| 1 | 5DM-81950-00-00 | Relay Assy (G8hn-1C4t-Dj-Y52) | 1 |
| 1 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 |
| 2 | 91312-04025-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90201-04030-00 | Washer, Plate | 2 |
| 1 | 18P-8212B-00-00 | Box, Battery 1 | 1 |
| 2 | 90480-12007-00 | Grommet | 2 |
| 1 | 90105-06084-00 | Bolt, Flange | 1 |
| 1 | 90387-06153-00 | Collar | 1 |
| 1 | 18P-8254E-00-00 | Insulator | 1 |
| 1 | 90465-10098-00 | Clamp | 1 |
| 1 | 5RU-8252U-00-00 | Cover | 1 |
| 2 | 90464-13073-00 | Clamp | 2 |
