Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

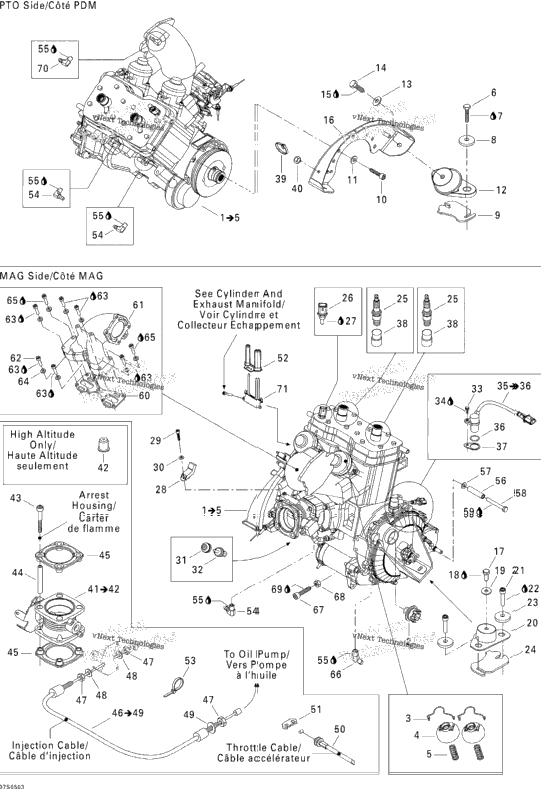

| 270000647 | Rotax Engine 787 SDI Includes 1 to 5 | ||
| 1 | 420966525 | ADAPTOR ASS'Y | 1 |
| 2 | 420838083 | SPRING CLIP | 2 |
| 2 | 420939137 | COMPRESSION SPRING | 2 |
| 1 | 420911558 | Valve Cover | 1 |
| 4 | 205084060 | Socket Head Screw M8 X 40 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 250200018 | Cone Washer | 4 |
| 4 | 270000446 | Shim 1.3 mm | 4 |
| 5 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 5 |
| 5 | 234081600 | Stainless, Flat Washer 8 mm | 5 |
| 2 | 270000633 | Rubber Mount, Black | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 207181660 | Hex. Screw M8 X 16 | ||
| 270000584 | Engine Support | ||
| 207182060 | HEX. SCREW M8 X 20 | ||
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 270000588 | RUBBER MOUNT | 1 |
| 2 | 205084060 | Socket Head Screw M8 X 40 | 2 |
| 2 | 250200018 | Cone Washer | 2 |
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| 1 | 205561260 | Socket Head Screw M6 X 12, Scotch Grip | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278001054 | INSULATOR | 1 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 210361660 | Hex. Forming Screw M6 X 16 | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 278001874 | Crank Sensor Ass'y Includes 35 to 36 | ||
| XXXX | Not Available As Spare Part - O-Ring | ||
| 270000661 | Shim | ||
| 2 | 278001380 | PROTECTOR CAP | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 270600092 | THROTTLE BODY ASS'Y Includes 41 to 42 | 1 |
| 270600097 | Cap, High Altitude | ||
| 4 | 205569060 | SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP | 4 |
| 4 | 275500352 | SPACER TUBE | 4 |
| 2 | 293250071 | GASKET | 2 |
| 1 | 270000437 | INJECTION CABLE ASS'Y Includes 46 to 49 | 1 |
| 2 | 232160600 | Hex. Nut M6 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 277000847 | THROTTLE CABLE | 1 |
| 1 | 277000279 | TAB LOCK | 1 |
| 1 | 278001512 | INSULATOR | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 293700016 | Elbow Fitting | ||
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 275500640 | Spacer Tube | ||
| 1 | 207066060 | HEX. SCREW M6 X 60 | 1 |
| 1 | 420931481 | Gasket | 1 |
| 420979483 | Exhaust Manifold, Black | ||
| 8 | 205006060 | SOCKET HEAD SCREW M10 X 60 | 8 |
| 8 | 234101601 | Helicoidal Lock Washer M10 | 8 |
| 293700036 | ELBOW FITTING 45 | ||
| 205003060 | Socket Screw M10 X 30 | ||
| 1 | 232001600 | HEX. NUT M10 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 293710018 | Elbow Fitting 90° | ||
| 1 | 278001662 | GROUND PLATE | 1 |
| 1 | 270000251 | Position Sensor | 1 |
| XXXX | Not Available As Spare Part - Screw M4 |
