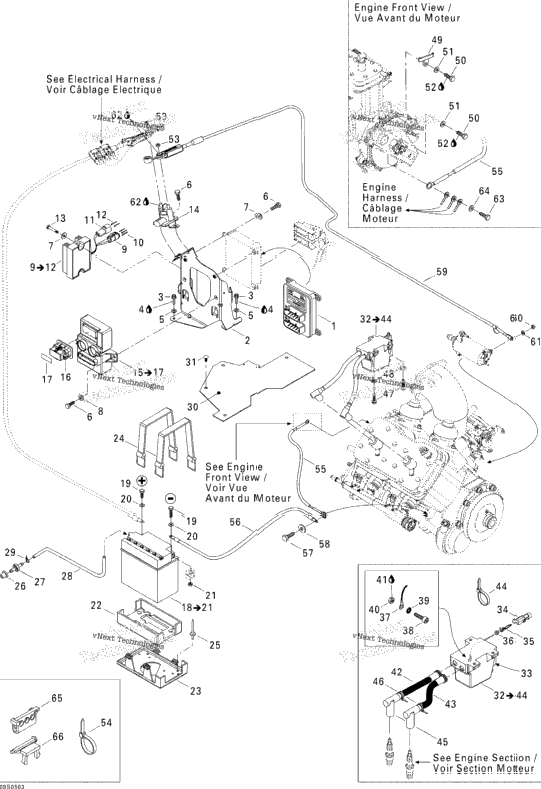

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420665226 | ECM, Engine Control Module | ||
| 1 | 278002009 | MODULES SUPPORT | 1 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 5 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 5 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 278001969 | Regulator Includes 9 to 12 | ||
| 1 | 409207400 | Female Housing, 3 Circuits | 1 |
| 3 | 278000632 | Female Terminal | 3 |
| 1 | 409206900 | Male Housing, 2 Circuits | 1 |
| 2 | 515175567 | Female Terminal | 2 |
| 1 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 1 |
| 1 | 278001802 | Relay Starter | 1 |
| 278001988 | VCM Electronic Module Includes 15 to 17 | ||
| 1 | 278002102 | Fuse Cover | 1 |
| 278002103 | Sticker | ||
| 1 | 278001756 | Battery 19A Includes 18 to 21 | 1 |
| 2 | 207161644 | Hex. Screw M6 X 16 | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 232061414 | Hex. Nut M6 | 2 |
| 1 | 278001976 | LOWER BATTERY PAD | 1 |
| 1 | 278001972 | BATTERY SUPPORT | 1 |
| 2 | 293850097 | Retainer Strap | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 278002077 | Module Protector | ||
| 1 | 293730018 | Mount Dart | 1 |
| 278001545 | IGNITION COIL ASSY Includes 32 to 44 | ||
| 1 | 278001546 | Ignition Coil | 1 |
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 409003200 | OPEN BARREL | ||
| 1 | 205062044 | Socket Head Screw M6 X 20 | 1 |
| 1 | 394001900 | External Tooth Lock Washer | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 278001464 | Spark Plug Wire, 270 mm | ||
| 278001465 | Spark Plug Wire | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 278000237 | Spark Plug Cap | 2 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 209663260 | Tapping Screw M6.3 X 32 | ||
| 278001873 | Clip | ||
| 2 | 420841543 | TAPTITE SCREW M6 X 25 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 278002092 | Ground Wire | ||
| 278001973 | Battery Ground Cable | ||
| 1 | 207382060 | Hex. Screw M8 X 20, Scotch Grip | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 278002060 | Starter Cable | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 278001096 | Collar Support |
