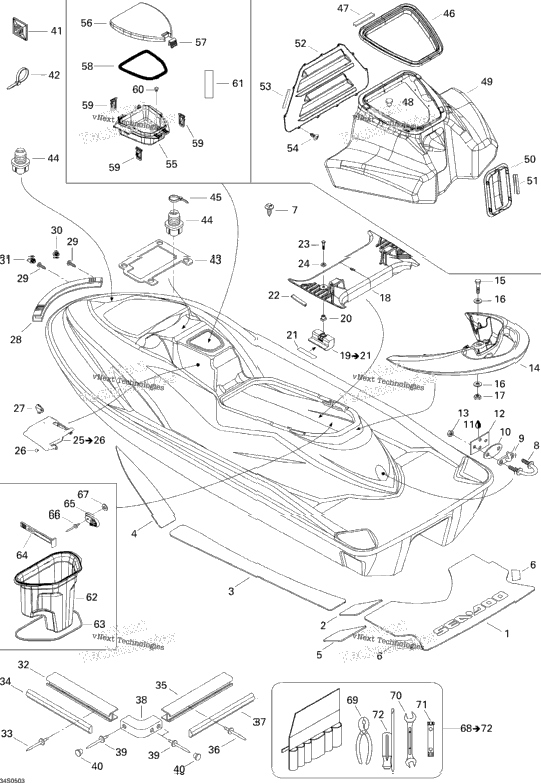

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291002193 | Rear Carpet LE | ||
| 291002153 | RH Rear Carpet LE | ||
| 291002154 | LH Rear Carpet LE | ||
| 291002155 | RH Center Carpet, Black LE | ||
| 291002156 | LH Center Carpet, Black LE | ||
| 291002157 | RH Front Carpet, Black LE | ||
| 291002158 | LH Front Carpet, Black LE | ||
| XXX | Not Available As Spare Parts | ||
| 291001919 | Anti-skid, Black | ||
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 292000011 | U-CLAMP | 1 |
| 1 | 291001232 | Hook | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 291001387 | RETAINER PLATE | 1 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 1 | 269000812 | GRAB HANDLE | 1 |
| 3 | 207084560 | Hex. Screw M8 X 45 | 3 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 3 | 232581600 | Hex. Elastic Nut M8 | 3 |
| 291001854 | Upper Bridge | ||
| 2 | 291001931 | Link Bridge Ass'y Includes 19 to 21 | 2 |
| 1 | 211100033 | Square Nut M8 | 1 |
| 1 | 291001932 | Pad | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 2 | 207384060 | HEX. SCREW M8 X 40, SCOTCH GRIP | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 291001649 | RH Grill Ass’Y Includes 25 to 26 | ||
| 291001650 | LH GRILL ASSY Includes 25 to 26 | ||
| 2 | 293730010 | Black Dart | 2 |
| 291001942 | BUMPER NOSE, BLACK | ||
| 4 | 250000236 | TORX SCREW 10-14 X 1-1/8 | 4 |
| 291001519 | Bumper Plug, Black | ||
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 2 | 291001606 | Side Bumper, Black | 2 |
| 46 | 293150005 | Pop Rivet 3/16" | 46 |
| 291002001 | SIDE BUMBER TRIM, YELLOW | ||
| 1 | 291001483 | Rear Bumper, Black | 1 |
| 8 | 293150005 | Pop Rivet 3/16" | 8 |
| 291001537 | REAR BUMPER TRIM, YELLOW | ||
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 3 | 293750025 | Tie-Rap Mount | 3 |
| 4 | 414115200 | Tie-Rap 180 mm | 4 |
| 1 | 293250068 | Gasket | 1 |
| 1 | 293720042 | GROMMET LE | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 269501129 | Cover Trim | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 291000279 | Black Plug | 1 |
| XXXX | Not Available As Spare Part - Strorage Tray | ||
| 291001744 | Front Door | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 291001631 | Rear Door | ||
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 1 | 269500717 | GLOVE BOX | 1 |
| 269500928 | GLOVE BOX DOOR | ||
| 269500719 | LATCH | ||
| 1 | 293250100 | GASKET | 1 |
| 3 | 269500820 | RETAINER LATCH | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 219704377 | Was 293250099 Gasket | 1 |
| 269500990 | Rear Tray | ||
| 1 | 269500408 | Strap | 1 |
| 1 | 269500521 | Hook | 1 |
| 1 | 293150039 | Pop Rivet 3/16" | 1 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| 294000680 | Owner Tool Kit Ass'y Includes 68 to 72 | ||
| XXXX | Not Available As Spare Part - Pliers | ||
| 529017300 | FORK WRENCH | ||
| XXXX | Not Available As Spare Part - Socket Plug | ||
| 529019200 | DRIVER SCREW |
