Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

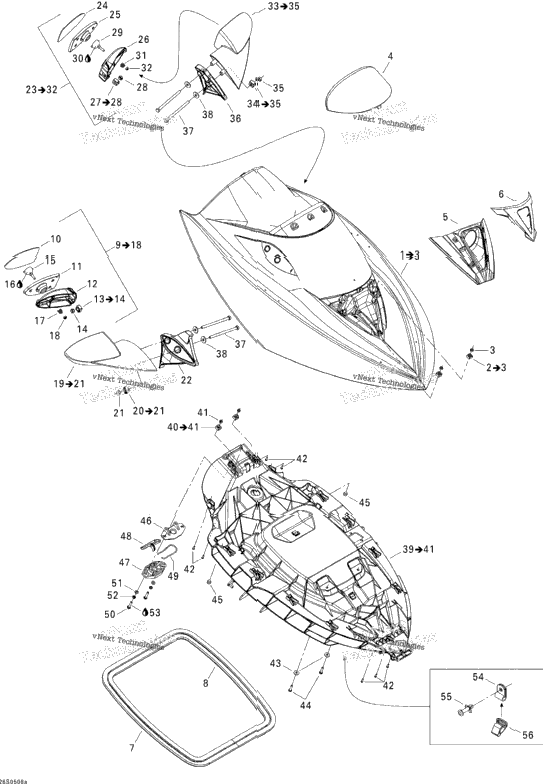

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501324 | Upper Storage Cover, Black Pearl Includes 1 to 3 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 2 to 3 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 269501189 | Deflector | ||
| 269500994 | Lower Grille | ||
| 269500942 | Upper Grille | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269501328 | RH Mirror Includes 9 to 18 | ||
| XXXX | Not Available As Spare Part - RH Mirror | ||
| 269501330 | Mirror Frame | ||
| 269501331 | Housing Support | ||
| 1 | 269501332 | Nut Housing Ass'y Includes 13 to 14 | 1 |
| XXXX | Not Available As Spare Part - Elastic Stop Nut M8 | ||
| 269501333 | MIRROR BALL JOINT | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 269501334 | Mirror Spring | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 269501325 | RH Mirror Shell, Black Pearl Includes 19 to 21 | ||
| 1 | 269501387 | Nut Housing Ass'y | 1 |
| 269500950 | RH Spacer | ||
| 269501337 | LH Mirror Ass'y Includes 23 to 32 | ||
| 269501338 | LH Mirror | ||
| 1 | 269501332 | Nut Housing Ass'y Includes 27 to 28 | 1 |
| 269501343 | LH Mirror Shell, Black Pearl Includes 33 to 35 | ||
| 269500951 | LH Spacer | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 269501415 | Lower Storage Cover Ass'y Includes 39 to 41 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 40 to 41 | 2 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 7 | 241141360 | Hex. Flange Screw K40 X 13 | 7 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 293750029 | Cable Clamp | ||
| 293150080 | Pop Rivet 3/16" | ||
| 4 | 293750030 | HOOK | 4 |
