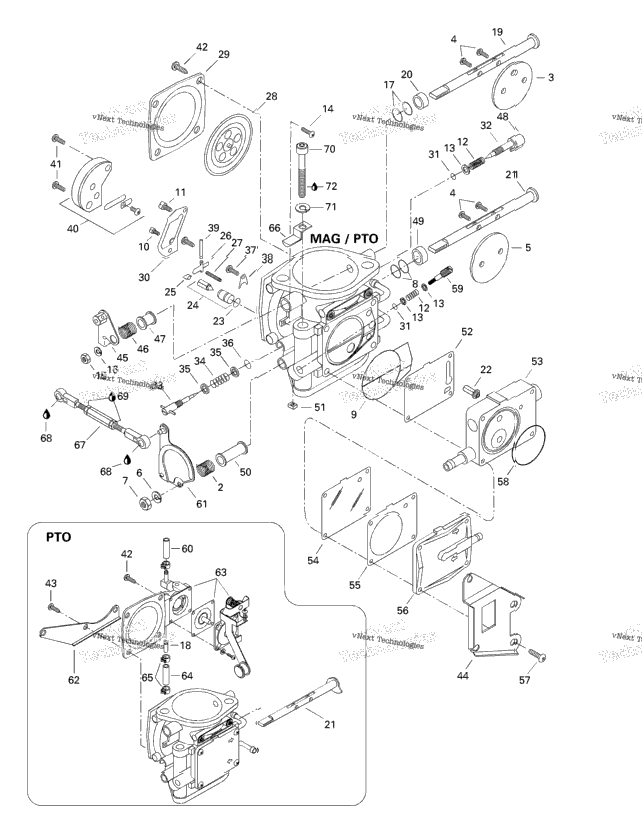

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270500329 | Carburetor BN40-38-23(P.T.O Side) Includes 1 - 66. XP 5662. | ||
| 270500333 | Carburetor BN40-38-22 (MAG Side) . | ||
| 270500097 | Spring . | ||
| 270500191 | Spring XP 5662. | ||
| XXXX | Choke Valve | ||
| 5 | 270500156 | SCREW | 5 |
| XXXX | Throttle Valve | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500012 | Nut | ||
| 270500222 | Sealing Ring | ||
| 270500104 | O-Ring | ||
| 270500117 | Pilot Jet 65 | ||
| 270500209 | MAIN JET 142.5 . | ||
| 270500210 | Main Jet 147.5 XP 5662. | ||
| 2 | 270500091 | SPRING | 2 |
| 270500136 | Washer | ||
| 270500228 | Screw | ||
| 1 | 270500229 | NUT | 1 |
| 270500230 | Spring Washer | ||
| 2 | 270500234 | SEALING RING | 2 |
| 1 | 270500348 | RECHARGE JET XP 5662. | 1 |
| XXXX | Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| XXXX | Throttle Shaft Ass'y (MAG) . | ||
| XXXX | Throttle Shaft Ass'y (PTO) XP 5662. | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500241 | Needle Valve 1.5 | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500313 | Spring | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 1 | 270500133 | COVER . | 1 |
| 1 | 270500131 | GASKET | 1 |
| 2 | 270500144 | O-RING | 2 |
| 270500113 | Adjuster Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 2 | 270500123 | SCREW | 2 |
| 270500243 | Screw . | ||
| 270500312 | Screw XP 5662. | ||
| 2 | 270500238 | SCREW XP 5662. | 2 |
| 270500270 | Bracket . | ||
| 270500271 | Choke lever | ||
| 1 | 270500248 | SPRING | 1 |
| 270500110 | Ring | ||
| 270500154 | Cap | ||
| 270500221 | Ring . | ||
| 1 | 270500309 | RING XP 5662. | 1 |
| 1 | 270500192 | RING | 1 |
| 270500249 | Nut . | ||
| 1 | 270500103 | GASKET . | 1 |
| 270500269 | Body Pump Ass'y . | ||
| 1 | 270500106 | DIAPHRAGM . | 1 |
| 270500146 | Gasket . | ||
| 270500108 | PUMP COVER . | ||
| 270500138 | Pump Cover XP 5662. | ||
| 270500303 | Screw . | ||
| 270500109 | Screw XP 5662. | ||
| 270500102 | O-RING . | ||
| 270500288 | Adjuster Screw . | ||
| 270500339 | Hose Ass'y XP 5662. | ||
| 270500300 | Throttle Lever Ass'y . | ||
| 270500301 | Throttle Lever Ass'y XP 5662. | ||
| 270500311 | Bracket XP 5662. | ||
| 270500350 | Diaphragm Ass'y XP 5662. | ||
| 270500341 | Hose Ass'y XP 5662. | ||
| 1 | 293650071 | OETIKER CLAMP XP 5662. | 1 |
| 204250018 | Hose Support . | ||
| 270500256 | Carburator Linkage Rod | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 413703400 | Sealant LOCTITE 222MS | ||
| 215987560 | Screw Allen M8 x 75 | ||
| 2 | 217383600 | Lock Washer 8 mm | 2 |
| 1 | 219704459 | Était Was 293800050 Loctite 577, 250 ml | 1 |
