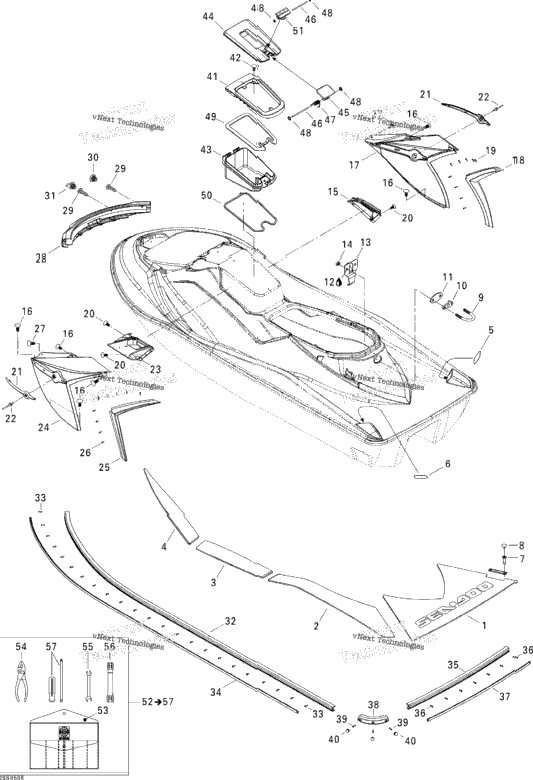

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291002140 | Rear Carpet | ||
| 291002162 | RH Center Rear Carpet | ||
| 291002164 | LH Center Rear Carpet | ||
| 291002166 | RH Center Front Carpet | ||
| 291002168 | LH Center Front Carpet | ||
| 291002170 | RH Front Carpet | ||
| 291002172 | LH Front Carpet | ||
| 1 | 291001758 | RH ANTI-SKID | 1 |
| 291001759 | LH Anti-Skid | ||
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 292000011 | U-CLAMP | 1 |
| 1 | 291001232 | Hook | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 291001747 | Retainer Plate | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 269501309 | RH Grille, Slate Gray | ||
| 293730004 | Dart, Black | ||
| 291002081 | RH Splash Guard, Pearl Black | ||
| 291001784 | RH Moulding | ||
| 8 | 209641960 | PHILLIPS TAPPING SCREW M4.2 X 19 | 8 |
| 4 | 293730006 | Black, Dart | 4 |
| 2 | 269500716 | FINITION PLATE | 2 |
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 269501310 | LH Grille, Slate Gray | ||
| 291002080 | LH Splash Guard, Pearl Black | ||
| 291001785 | LH Moulding | ||
| 2 | 293730010 | Black Dart | 2 |
| 291002069 | BUMPER NOSE, SLATE GREY | ||
| 4 | 250000236 | TORX SCREW 10-14 X 1-1/8 | 4 |
| 2 | 291002070 | BUMPER PLUG, SLATE GREY | 2 |
| 291002071 | Bumper Plug, Slate Grey | ||
| 2 | 291002072 | SIDE BUMPER, SLATE GREY | 2 |
| 52 | 293150005 | Pop Rivet 3/16" | 52 |
| 291002074 | SIDE BUMPER TRIM | ||
| 291002075 | Rear Bumper, Slate Grey | ||
| 8 | 293150005 | Pop Rivet 3/16" | 8 |
| 291002077 | Side Bumper Trim | ||
| 2 | 291002078 | BUMPER CORNER, SLATE GREY | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291002079 | BUMPER PLUG, SLATE GREY | 6 |
| 269501311 | Glove Box Trim | ||
| 3 | 293730006 | Black, Dart | 3 |
| 1 | 269501281 | GLOVE BOX | 1 |
| 1 | 269501321 | GLOVE BOX DOOR, SLATE GREY | 1 |
| 1 | 269500553 | Latch, Black | 1 |
| 2 | 211400008 | Pin | 2 |
| 1 | 291000922 | Latch Spring | 1 |
| 4 | 211100002 | Push Nut | 4 |
| 1 | 293250146 | GASKET | 1 |
| 293250127 | GASKET | ||
| 1 | 269501289 | LATCH, BLACK | 1 |
| 294000682 | Tool Kit Includes 52 to 57 | ||
| XXXX | Not Available As Spare Part - Tool Bag | ||
| XXXX | Not Available As Spare Part - Pliers | ||
| 529017300 | FORK WRENCH | ||
| 529035731 | Socket Wrench | ||
| 529019200 | DRIVER SCREW |
