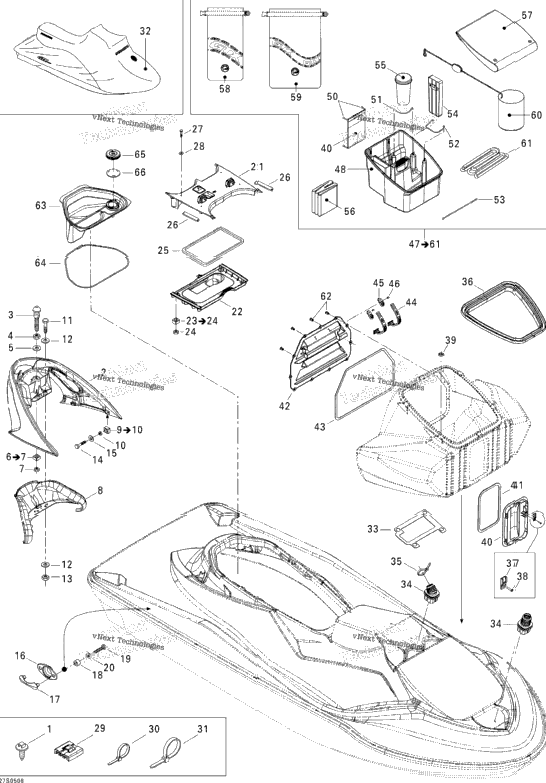

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293730018 | Mount Dart | 1 |
| 269001265 | Grab Handle, Slate Grey | ||
| 1 | 291000945 | SEAT STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 6 to 7 | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 269001266 | Grab Handle Cover, Slate Grey | ||
| 4 | 269500725 | M6 Nut Housing Ass'y Includes 9 to 10 | 4 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 2 | 207084560 | Hex. Screw M8 X 45 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 4 | 207162560 | Hex. Screw M6 X 25 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 291001195 | CARGO HOOK BASE | 2 |
| 2 | 291001196 | HOOK CARGO CLEATS | 2 |
| 4 | 291001203 | Spacer | 4 |
| 4 | 207351660 | Hex. Screw M5 X 16, Scotch Grip | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 1 | 291002136 | UPPER BRIDGE, BLACK | 1 |
| 291002138 | Lower Bridge, Black | ||
| 4 | 269501166 | Nut Housing Ass'y Includes 23 to 24 | 4 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 293200090 | GASKET | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 207167560 | Hex. Screw M6 X 75 | ||
| 2 | 293750025 | Tie-Rap Mount | 2 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 280000155 | Sea-doo Gtx Ltd Cover | 1 |
| 1 | 293250068 | Gasket | 1 |
| 2 | 293720042 | GROMMET | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 269501234 | Cover Trim | ||
| 1 | 270000141 | Clip | 1 |
| 1 | 241642060 | Flange Screw K40 X 20 | 1 |
| 1 | 291000279 | Black Plug | 1 |
| 291001744 | Front Door | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 291001743 | Rear Door | ||
| 2 | 269500408 | Strap | 2 |
| 2 | 269500521 | Hook | 2 |
| 2 | 293150027 | Avdel Rivet | 2 |
| 269501312 | Removable Tray Ass'y, Ltd Includes 47 to 61 | ||
| 1 | 269501160 | Removable Tray Ass'y | 1 |
| 269501442 | Storage Pocket | ||
| 2 | 269501175 | STRAP | 2 |
| 1 | 269501174 | STRAP | 1 |
| 1 | 269501175 | STRAP | 1 |
| 1 | 269501176 | STRAP | 1 |
| 269501313 | Cellular Phone Case | ||
| 1 | 295100177 | Safety Kit | 1 |
| 269501314 | Ice-box | ||
| 269501315 | Luggage Net | ||
| 1 | 269501317 | Dry Bag, 10 Liters | 1 |
| 269501438 | Dry Bag, 40 Liters | ||
| 1 | 269501318 | ANCHOR SANDBAG | 1 |
| 1 | 269501319 | 15' ANCHOR CABLE | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 269501036 | Rear Tray | ||
| 1 | 269000788 | COVER | 1 |
| 1 | 269000810 | COVER SEAL | 1 |
