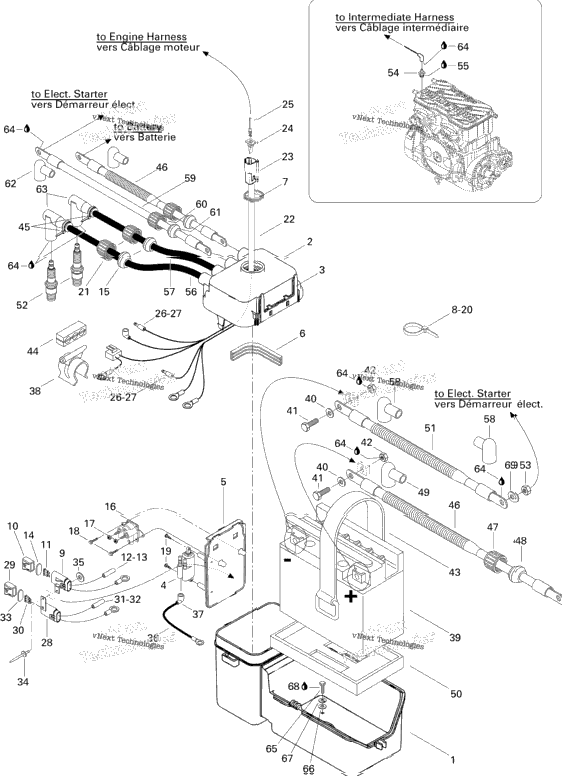

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000824 | BASE | ||
| 278000825 | Cover | ||
| 278000732 | Ground Plate | ||
| 1 | 278000383 | Ignition Coil | 1 |
| 278000826 | Mounting Plate | ||
| 278000440 | GASKET | ||
| 293200030 | Gasket | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 278000666 | Fuse Harness 7.5 Amp Includes 9 to 14 | ||
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 1 | 290964068 | Female Terminal | 1 |
| 1 | 290964072 | Insulating Sheath | 1 |
| 1 | 278000805 | Cushion | 1 |
| 278000682 | Grommet | ||
| 1 | 278000513 | Starter Relay | 1 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 2 | 211000035 | Self Tapping Screw M6 x 10 | 2 |
| 215462550 | Self Tapping Screw M6.3 x 25 | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 278000100 | Electric Wire Cap | ||
| 278000663 | Rear Electric Box Harness Includes 22 to 27 | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 2 | 278000230 | Male Terminal | 2 |
| 2 | 290964077 | Insulating Sheath (Male Terminal) | 2 |
| 278000665 | Fuse Harness 15 Amp Includes 28 to 33 | ||
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 293150014 | Pop Rivet 3/16" | 1 |
| 1 | 213200016 | Flat Washer, Emhart | 1 |
| 278000664 | Ground Harness Includes 36 to 37 | ||
| 1 | 278000228 | FEMALE TERMINAL | 1 |
| 1 | 278000559 | COLLAR SUPPORT | 1 |
| 1 | 278000712 | Battery | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 293850031 | STRAP | ||
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 278000511 | Engine Harness Includes 46 to 49 | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278000776 | Battery Lower Pad | ||
| 278000512 | Battery Ground Cable | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 278000194 | Temperature Sensor | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278002198 | SPARK PLUG WIRE | 1 |
| 278000322 | Spark Plug Wire 530 (MAG) | ||
| 2 | 278000020 | PROTECTION CAP | 2 |
| 278000444 | Starter Cable (Red) Includes 59 to 62 | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 4 | 211000074 | Screw Plastite | 4 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 4 | 217351500 | Lock Washer 5 mm | 4 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 213200001 | Flat Washer 6 mm | 1 |
