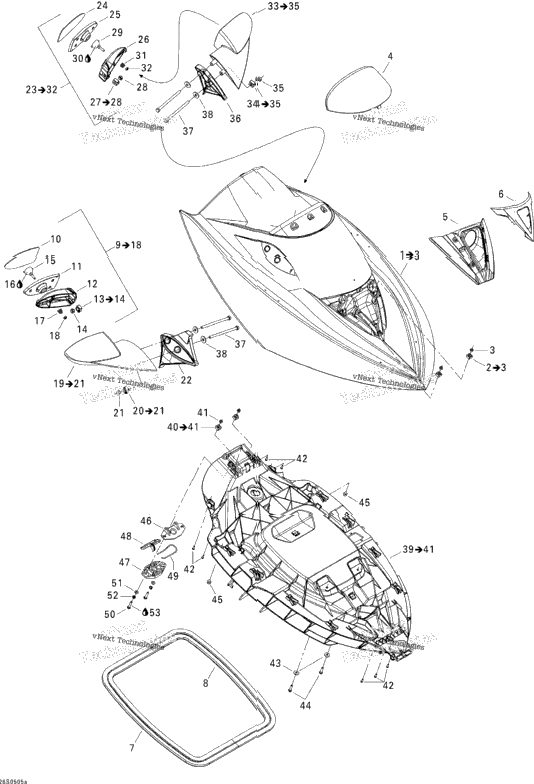

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501196 | Upper Storage Cover, Silver WAKE, Includes 1 to 3 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 2 to 3 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 269501189 | Deflector | ||
| 269500994 | Lower Grille | ||
| 269500942 | Upper Grille | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269501393 | RH Mirror Ass'y WAKE, Includes 9 to 18 | ||
| 1 | 269501292 | RH MIRROR WAKE | 1 |
| 269500697 | Frame Mirror WAKE | ||
| 269500807 | Housing Support WAKE | ||
| 1 | 269501387 | Nut Housing Ass'y WAKE, Includes 13 to 14 | 1 |
| XXXX | Not Available As Spare Part - Elastic Stop Nut M9 WAKE | ||
| 269500079 | MIRROR BALL JOINT WAKE | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 269500453 | Mirror Spring WAKE | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 WAKE | 1 |
| 269501327 | RH Mirror Shell, Silver WAKE, Includes 19 to 21 | ||
| 1 | 269501387 | Nut Housing Ass'y Includes 20 to 21 | 1 |
| XXXX | Not Available As Spare Part - Elastic Stop Nut M8 | ||
| 269500950 | RH Spacer | ||
| 269501394 | LH Mirror Ass'y WAKE, Includes 23 to 32 | ||
| 1 | 269501294 | LH MIRROR WAKE | 1 |
| 1 | 269501387 | Nut Housing Ass'y WAKE, Includes 27 to 28 | 1 |
| 269501345 | LH Mirror Shell, Silver WAKE, Includes 33 to 35 | ||
| 1 | 269501387 | Nut Housing Ass'y Includes 34 to 35 | 1 |
| 269500951 | LH Spacer | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 269501413 | LOWER STORAGE COVER ASS'Y Includes 39 to 41 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 40 to 41 | 2 |
| 7 | 241141360 | Hex. Flange Screw K40 X 13 | 7 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
