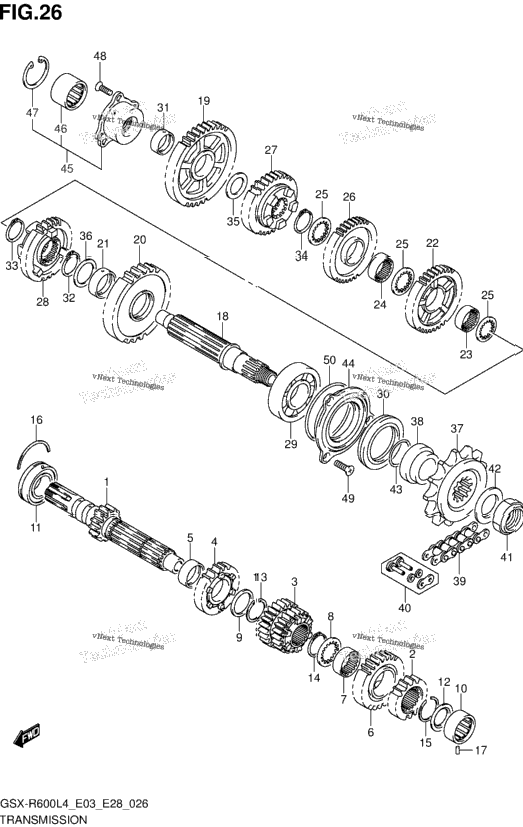

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 24120-14J00 | SHAFT, COUNTER (NT:16) | 1 |
| 1 | 24120-14J00 | SHAFT, COUNTER (NT:16) | 1 |
| 24221-14J00 | GEAR, 2ND DRIVE (NT:19) | ||
| 24221-14J00 | GEAR, 2ND DRIVE (NT:19) | ||
| 1 | 24231-14J00 | GEAR, 3RD & 4TH (NT:21/23) | 1 |
| 1 | 24231-14J00 | GEAR, 3RD & 4TH (NT:21/23) | 1 |
| 1 | 24251-01H00 | GEAR, 5TH DRIVE (NT:23) | 1 |
| 1 | 24251-01H00 | GEAR, 5TH DRIVE (NT:23) | 1 |
| 1 | 24252-35F00 | BUSH 5TH DRIVE GEAR | 1 |
| 1 | 24252-35F00 | BUSH 5TH DRIVE GEAR | 1 |
| 24261-14J00 | GEAR, 6TH DRIVE (NT:26) | ||
| 24261-14J00 | GEAR, 6TH DRIVE (NT:26) | ||
| 1 | 24262-35F10 | BUSH, 6TH DRIVE GEAR | 1 |
| 1 | 24262-35F10 | BUSH, 6TH DRIVE GEAR | 1 |
| 1 | 09167-27001 | LOCK WASHER | 1 |
| 1 | 09167-27001 | LOCK WASHER | 1 |
| 1 | 09160-27008 | WASHER (27X36X1) | 1 |
| 1 | 09160-27008 | WASHER (27X36X1) | 1 |
| 1 | 09263-20087 | BEARING (20X34X13.5) LH | 1 |
| 1 | 09263-20087 | BEARING (20X34X13.5) LH | 1 |
| 1 | 09262-25150 | BEARING (25X62X17) RH | 1 |
| 1 | 09262-25150 | BEARING (25X62X17) RH | 1 |
| 1 | 09285-20006 | OIL SEAL (20X31.2X2.7) | 1 |
| 1 | 09285-20006 | OIL SEAL (20X31.2X2.7) | 1 |
| 1 | 09380-27006 | CIRCLIP | 1 |
| 1 | 09380-27006 | CIRCLIP | 1 |
| 1 | 09380-27004 | CIRCLIP | 1 |
| 1 | 09390-62012 | C RING | 1 |
| 1 | 09261-06003 | PIN (6X10) LH | 1 |
| 1 | 24131-14J00 | SHAFT,DRIVE | 1 |
| 1 | 24311-14J00 | GEAR, 1ST DRIVEN (NT:43) | 1 |
| 1 | 24321-14J00 | GEAR, 2ND DRIVEN (NT40) | 1 |
| 1 | 24322-35F00 | BUSH, 2ND DRIVEN | 1 |
| 1 | 24331-14J00 | GEAR, 3RD DRIVEN (NT:37) | 1 |
| 1 | 24332-46H00 | BUSH, 3RD DRIVEN GEAR | 1 |
| 1 | 24332-46H00 | BUSH, 4TH DRIVEN GEAR | 1 |
| 3 | 24333-02F00 | WASHER, 3RD & 4TH DRIVEN | 3 |
| 1 | 24341-14J00 | GEAR, 4TH DRIVEN (NT:35) | 1 |
| 24351-01H01 | GEAR, 5TH DRIVEN (NT:31) | ||
| 1 | 24361-14J00 | GEAR, 6TH DRIVEN (NT:32) | 1 |
| 1 | 09262-28045 | BEARING (28X68X18) LH | 1 |
| 1 | 09283-42018 | OIL SEAL (42X62X7) | 1 |
| 1 | 09300-22008 | BUSH (22X26X9) | 1 |
| 1 | 09181-22223 | SHIM (22X34X1) LH | 1 |
| 1 | 27510-20A10 | SPROCKET, ENGINE (NT:16) | 1 |
| 1 | 27531-14J00 | SPACER,ENGINE SPROCKET | 1 |
| 1 | 27600-06G40-114 | CHAIN ASSY (RK525SM0Z8) | 1 |
| 1 | 09380-27004 | CIRCLIP | 1 |
| 1 | 09390-62012 | C RING | 1 |
| 1 | 09261-06003 | PIN (6X10) LH | 1 |
| 1 | 24131-14J00 | SHAFT,DRIVE | 1 |
| 1 | 24311-14J00 | GEAR, 1ST DRIVEN (NT:43) | 1 |
| 1 | 24321-14J00 | GEAR, 2ND DRIVEN (NT40) | 1 |
| 1 | 24322-35F00 | BUSH, 2ND DRIVEN | 1 |
| 1 | 24331-14J00 | GEAR, 3RD DRIVEN (NT:37) | 1 |
| 1 | 24332-46H00 | BUSH, 3RD DRIVEN GEAR | 1 |
| 1 | 24332-46H00 | BUSH, 4TH DRIVEN GEAR | 1 |
| 3 | 24333-02F00 | WASHER, 3RD & 4TH DRIVEN | 3 |
| 1 | 24341-14J00 | GEAR, 4TH DRIVEN (NT:35) | 1 |
| 24351-01H01 | GEAR, 5TH DRIVEN (NT:31) | ||
| 1 | 24361-14J00 | GEAR, 6TH DRIVEN (NT:32) | 1 |
| 1 | 09262-28045 | BEARING (28X68X18) LH | 1 |
| 1 | 09283-42018 | OIL SEAL (42X62X7) | 1 |
| 1 | 09300-22008 | BUSH (22X26X9) | 1 |
| 1 | 09181-22223 | SHIM (22X34X1) LH | 1 |
| 1 | 27510-20A10 | SPROCKET, ENGINE (NT:16) | 1 |
| 1 | 27531-14J00 | SPACER,ENGINE SPROCKET | 1 |
| 1 | 27600-06G40-114 | CHAIN ASSY (RK525SM0Z8) | 1 |
| 1 | 27620-06G40 | JOINT SET OPT | 1 |
| 1 | 09159-20004 | NUT | 1 |
| 1 | 09160-25009 | WASHER (25X41X3) | 1 |
| 1 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 |
| 1 | 24751-14J00 | RETAINER,DRIVE SHAFT BRG LH | 1 |
| 1 | 24771-01810 | HOUSING, DRIVE SHAFT SET | 1 |
| 1 | 09263-20069 | BEARING (20X34X17.5) | 1 |
| 1 | 08331-41349 | CIRCLIP | 1 |
| 3 | 09139-06159 | SCREW (6X20) | 3 |
| 1 | 09280-68010 | O RING (D:1.8,ID:67.5) | 1 |
