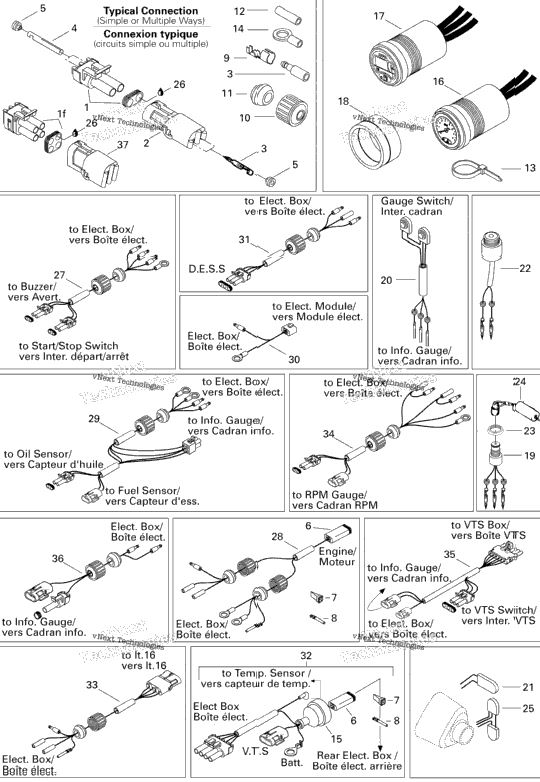

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000219 | MALE HOUSING, 1 CIRCUIT | ||
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 278000156 | FEMALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 409007300 | Female Terminal | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 278000585 | Wire Seal (20 Gauge) (Purple) (Packard) | 1 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 290964068 | Female Terminal | 1 |
| 278000100 | Electric Wire Cap | ||
| 293720030 | Grommet, 1 Circuit, Blue | ||
| 293720025 | GROMMET, 2 CIRCUIT, GRAY | ||
| 278000193 | GROMMET, 3 CIRCUIT, BLACK | ||
| 293720034 | Grommet | ||
| 570026800 | Grommet, 4 Circuit, Red | ||
| 1 | 290964072 | Insulating Sheath | 1 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 1 | 290964077 | Insulating Sheath (Male Terminal) | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 409003200 | OPEN BARREL | ||
| 278000300 | Ring Terminal | ||
| 1 | 278000992 | Open Barrel | 1 |
| 570150700 | Switch Boot | ||
| 278000818 | Tachometer Includes 1b,2b,3b,4b,5a | ||
| 278000817 | Infometer Center Gauge Includes 1a,1b,1c,1f,2a,2b,2c,3b,4b,5a | ||
| 293720038 | Gauge Support | ||
| 1 | 278000955 | Safety Switch (Incl. 3b,5a) | 1 |
| 278000854 | Gauge Switch Ass'y Includes 4b,5a | ||
| 1 | 278000427 | SWITCH-IGNIT. | 1 |
| 278000881 | BUZZER ASS?Y | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 295500411 | Safety Landyard for D.E.S.S | 1 |
| 278000447 | VTS Switch Ass'y | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278000896 | 4 Ways Harness Includes 1b,3c,4b,5a,10,11e,12c,14c | ||
| 278000833 | Engine Harness Includes 3c,6,7,8,9,10,11c,12a,12c,14b | ||
| 278000453 | Oil / Fuel Gauge Harness Includes 1b,1f,2b,3b,3c,4b,5a,10,11d,14c | ||
| 278000660 | Harness 2 Ways (Incl. 14b) | ||
| 278000831 | Harness Anti-Theft Includes 1c,3c,4b,5a,10,11c | ||
| 278000898 | Intermediate Harness Includes 1d,2b,3b,4b,5a,6,7,8,13b,14a,15 | ||
| 278000661 | Female Terminal Includes 2d,3a,3b,5a,10,11d | ||
| 278000454 | Rear Harness 4 Ways Includes 1b,2b,3b,3c,4b,5a,9,10,11d,12b,12c,14c | ||
| 278000900 | VTS Intermediate Harness Includes 1c,1e,2a,2b,3b,4b,5a | ||
| 278000452 | 2 Ways Harness Includes 1a,2a,3b,3c,4b,5a,10,11b,12c | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS |
